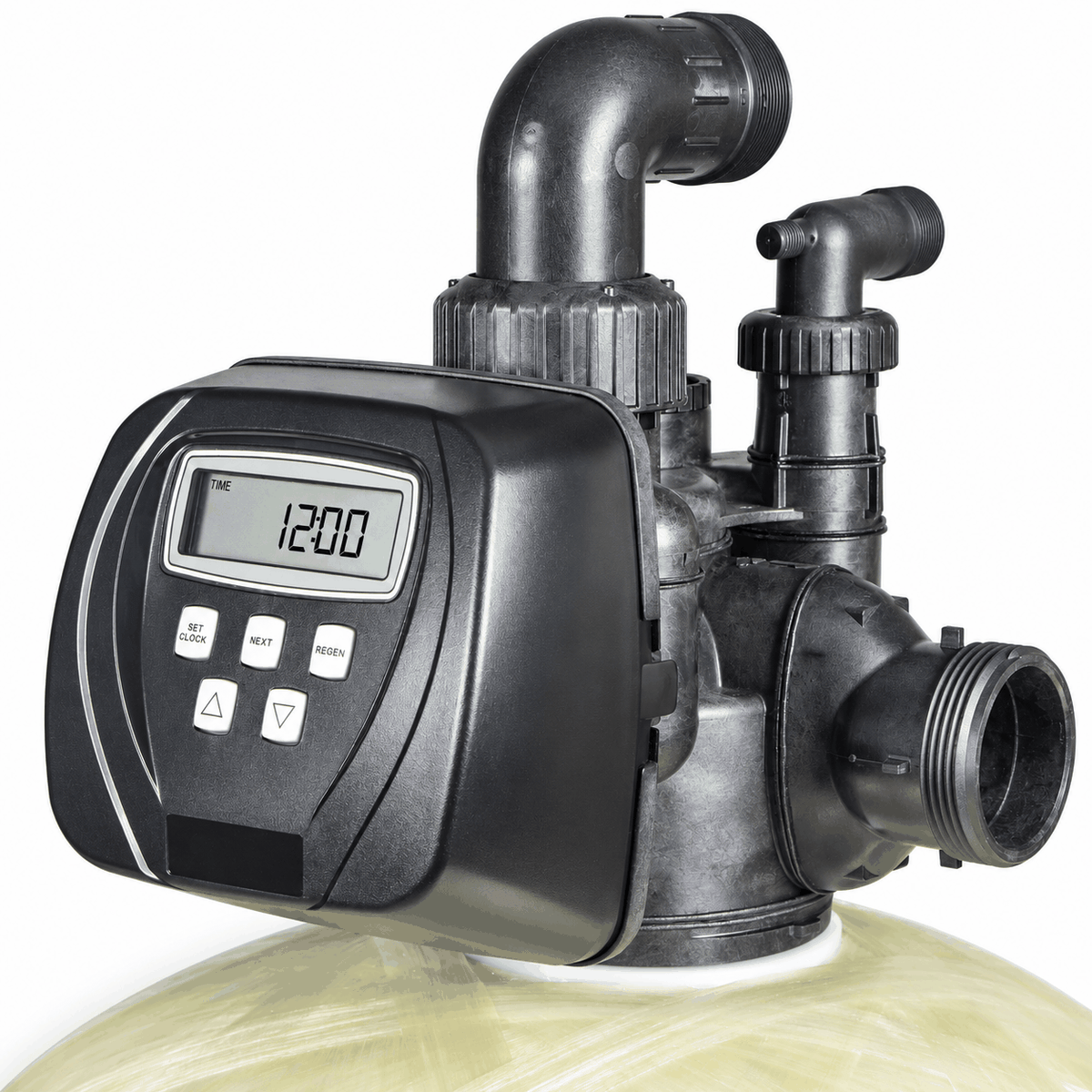

Clack WS2 CI Noryl Timed Softener Valve Kit – No Screen, Injector or DLFC

Clack WS2 CI Noryl Timed Softener Valve Kit

The Clack WS2 CI is a heavy-duty 2" top-mount control valve designed for commercial and industrial water softening applications. This timed softener valve kit is supplied with valve, transformer and tails, and is supplied without screen, injector or DLFC so these items can be selected separately to suit the application.

The glass-filled composite valve body provides a robust, corrosion-resistant construction, while the CI electronic controller offers fully programmable regeneration cycles and dependable automatic operation.

Key Features

• 2" commercial/industrial top-mount control valve
• Noryl / glass-filled composite valve body
• Timed softener configuration
• Up to 9 programmable regeneration cycles
• Programmable regeneration cycle times
• 24-hour clock with solid-state microprocessor controller
• Reliable DC drive with linearly reciprocating piston
• One-piece expanding seal and spacer stack assembly
• Suitable for softener vessels from 12" to 36" diameter
• Supplied with valve, transformer and tails
• No screen, injector or DLFC included

Flow Rates

• Service flow: up to 21.6 m³/hr at 1 bar pressure drop
• Backwash flow: up to 19.3 m³/hr at 1.7 bar pressure drop

Technical Specification

• Inlet / outlet: 2" connections
• Tank mounting thread: 4" - 8 UN
• Riser / distributor tube: 50 mm OD
• Operating pressure: 1.4–8.6 bar
• Operating temperature: 4–43°C
• Drain connection: 2" male BSPT 90° QC elbow
• Power supply: 100–240 VAC, 50/60 Hz input; 15 VDC output
• Height above tank: approximately 317.5 mm
• Shipping weight: approximately 4.98 kg

Programmable Cycles

The WS2 CI controller can be configured with up to nine regeneration stages in the required sequence, with programmable backwash, rinse, brine, refill and pause/service functions.

Please note: this version is supplied without screen, injector or DLFC. These components should be selected separately according to the softener vessel size, resin quantity and required regeneration conditions.
