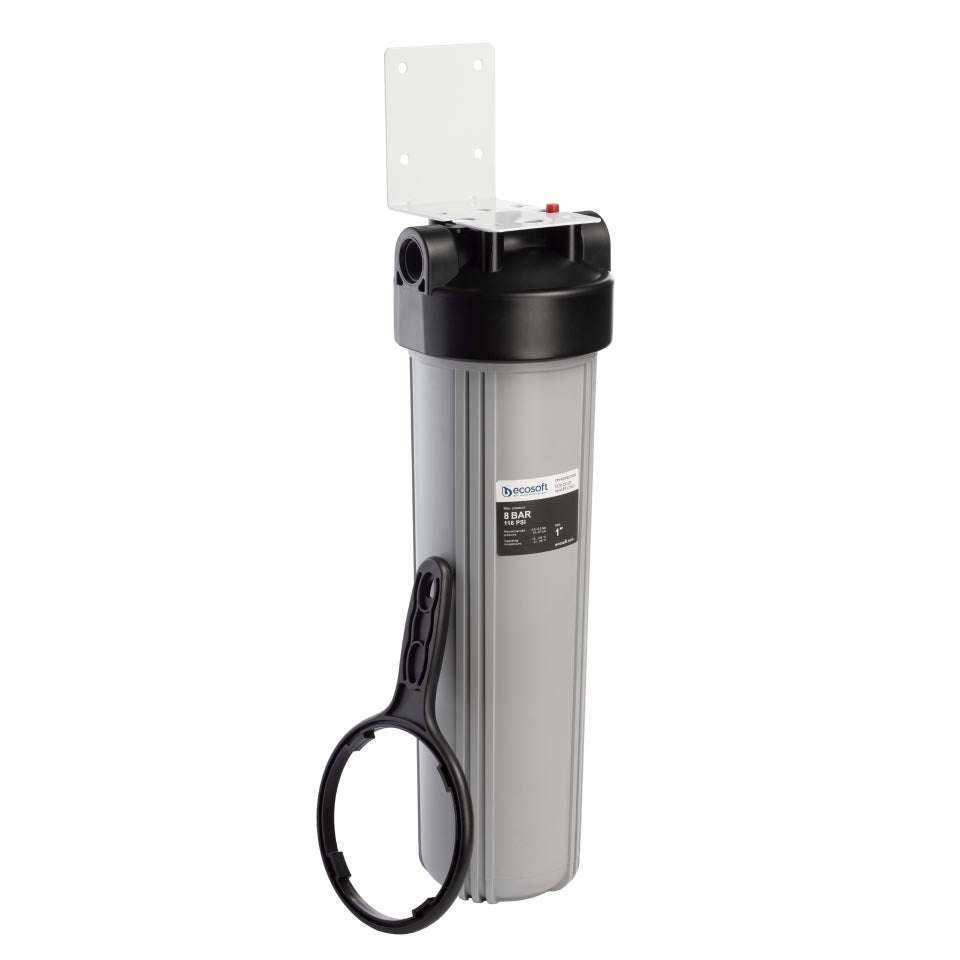

The Ecosoft 20" Large Diameter Sediment Filter Housing with 6 x 5 Micron Filter Cartridges provides an effective solution for reducing fine sediment and suspended particles from incoming water supplies.
Supplied as a complete filtration package with six 5-micron polypropylene sediment cartridges, this system gives you one cartridge for installation plus additional replacement filters ready for future servicing. The large diameter 20" housing provides good dirt-holding capacity and supports flow rates of up to 30 litres per minute, making it suitable for domestic and light commercial applications.
Key Benefits
- Includes 6 x 5 Micron Filter Cartridges – Supplied with six sediment cartridges, providing a convenient stock of replacement filters.
- 5-Micron Sediment Filtration – Helps reduce finer suspended particles such as rust, sand, silt and other sediment.
- 20" Large Diameter Housing – Provides increased filtration capacity compared with standard slimline cartridge housings.
- Up to 30 LPM Flow Rate – Suitable for whole-house and light commercial water filtration applications.
- 1" BSP Connections – Designed for straightforward installation into larger domestic and commercial pipework.
- Protects Downstream Equipment – Helps prevent sediment reaching plumbing, appliances, water treatment equipment and finer filtration stages.
- Polypropylene Filter Media – Melt-blown cartridge construction provides effective depth filtration and good dirt-holding capacity.
What's Included

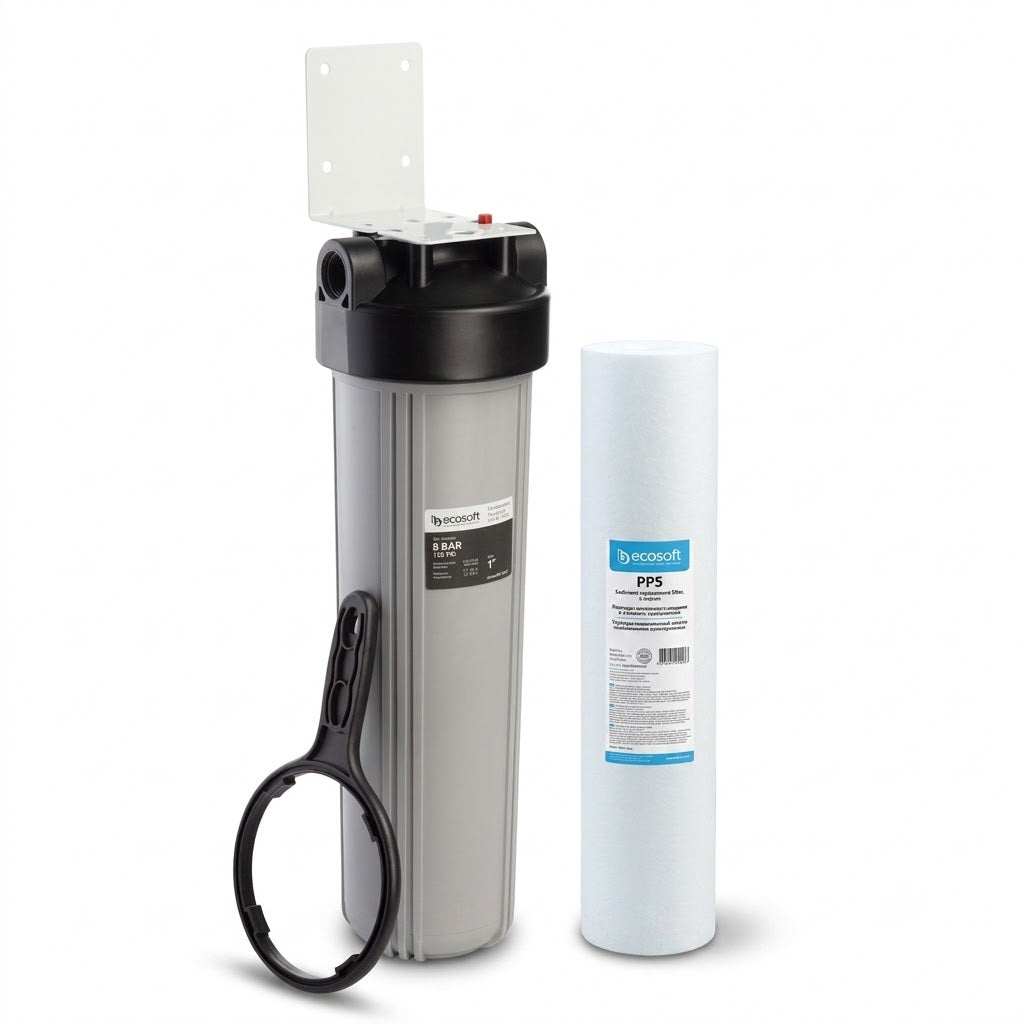

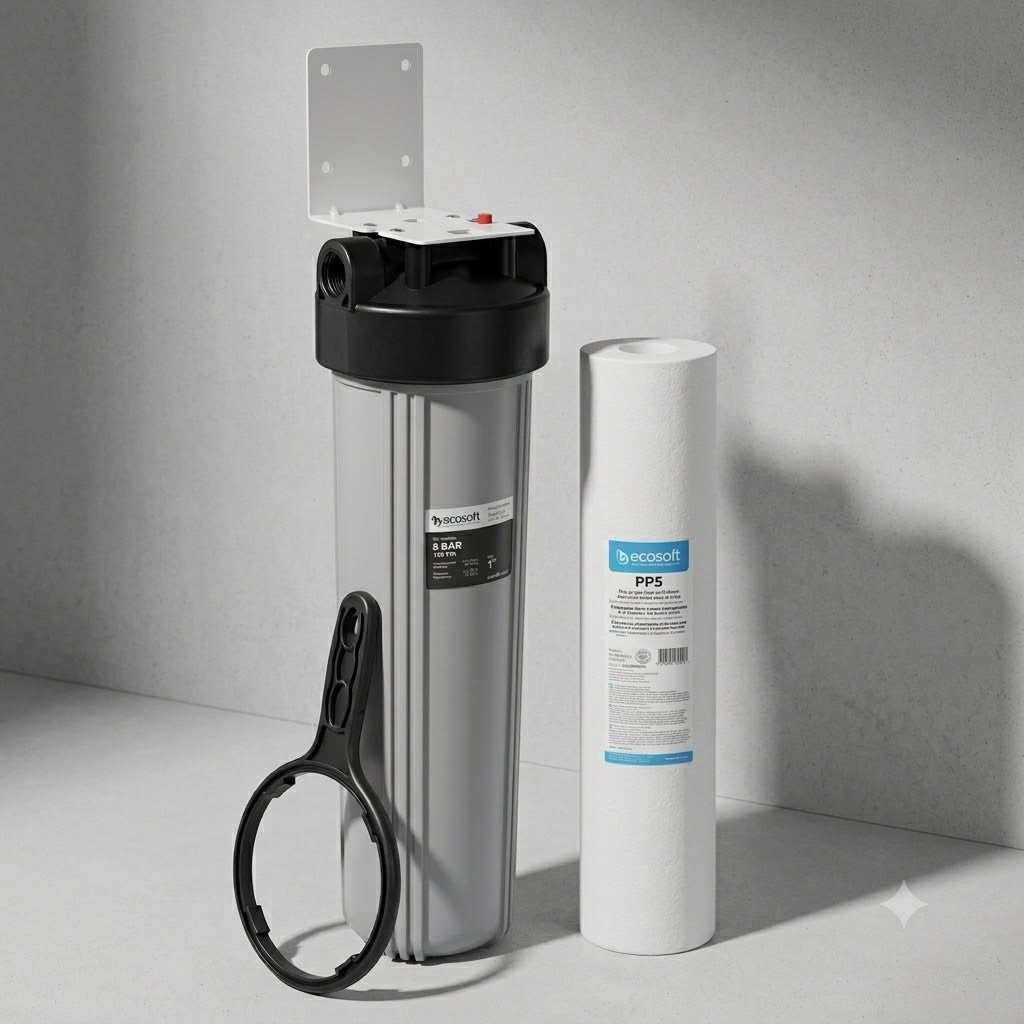

- 1 x Ecosoft 20" large diameter filter housing

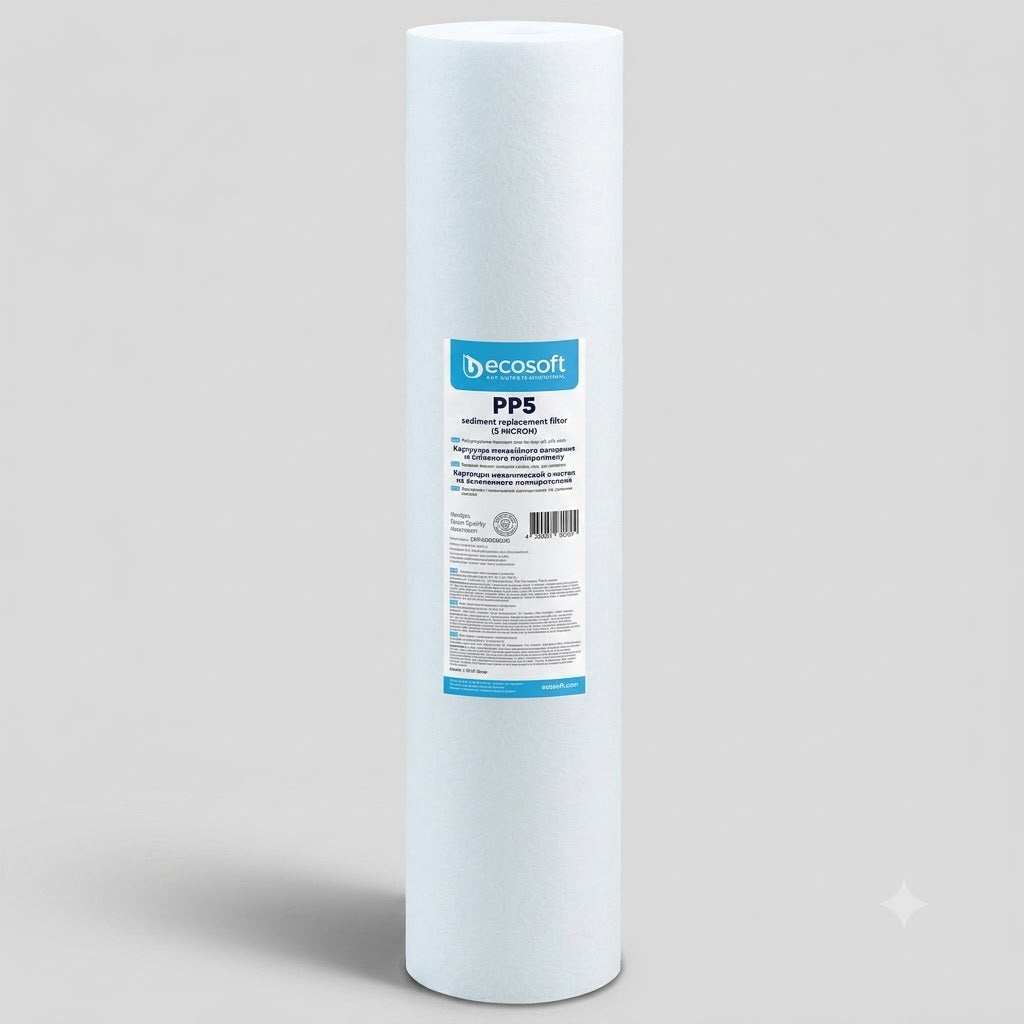

- 6 x 5 Micron polypropylene sediment filter cartridges
- Mounting bracket
- Housing service wrench
Technical Specifications
| Specification | Details |
|---|---|
| Filter Type | Melt-blown polypropylene sediment |
| Micron Rating | 5 micron |
| Cartridges Included | 6 |
| Housing Size | 20" Large Diameter |
| Connection Size | 1" BSP |
| Maximum Flow Rate | 30 litres per minute |
| Operating Temperature | +3°C to +43°C |
| Housing Material | Food-grade polypropylene |
Applications
This Ecosoft sediment filtration system is suitable for a wide range of domestic and light commercial applications, including whole-house sediment filtration, mains water pre-filtration, borehole and private water supplies where suitable pre-treatment is in place, and protection of water softeners, UV systems, appliances and other downstream treatment equipment.
The finer 5-micron filtration rating makes it particularly suitable where a higher level of particulate removal is required before water passes to subsequent treatment stages.
How It Works
Water passes through the melt-blown polypropylene cartridge, where suspended sediment is trapped within the depth of the filter media. The 5-micron rating provides finer particulate filtration than a 20-micron cartridge, helping reduce smaller sediment particles while still allowing a useful flow rate for domestic and light commercial applications.
As the cartridge collects sediment, it should be replaced when the water flow noticeably reduces or when the pressure drop across the filter becomes excessive.
With six cartridges supplied with the system, replacement filters are already on hand for routine servicing, helping make ongoing maintenance simpler and more convenient.
