Ecosoft Aquapoint XL Duo Whole House Water Filter

Two-Stage Whole House Filtration for Well, Rainwater & Private Water Supplies

The Ecosoft Aquapoint XL Duo Whole House Water Filter is a premium two-stage filtration system designed to provide high-flow, whole-house water treatment for properties supplied by well water, boreholes and rainwater harvesting systems. Engineered for homes with 1–2 bathrooms, the Aquapoint XL Duo effectively removes sand, silt, rust, sediment and other suspended particles, helping to protect pipework, water heaters, pumps, boilers, valves and household appliances from premature wear.

Supplied pre-mounted on a robust steel frame, the Aquapoint XL Duo offers quick installation, exceptional durability and simple cartridge replacement. With 4.5" x 20" Big Blue style filter cartridges and a maximum flow rate of 1.8 m³/hour (30 litres per minute), it delivers excellent water pressure throughout the home while providing reliable two-stage filtration.

Designed for Reliable Whole House Water Filtration

Unlike single-stage filters, the Aquapoint XL Duo uses two filtration stages to improve water quality:

Stage 1 – 20 Micron Sediment Filter
Removes larger particles including:

• Sand
• Grit
• Silt
• Rust flakes
• Scale particles

Stage 2 – 5 Micron Sediment Filter
Captures finer contaminants including:

• Fine sediment
• Dirt
• Remaining suspended solids
• Smaller rust particles

This dual-stage approach extends cartridge life while delivering cleaner water throughout the property.

Heavy-Duty Steel Rack Construction

The Aquapoint XL Duo is supplied on a heavy-duty powder-coated steel mounting frame, providing a rigid installation that absorbs pressure vibrations and prevents movement during cartridge changes.

Unlike wall-mounted housings fixed individually, the integrated steel rack keeps both housings perfectly aligned for easier servicing and increased reliability.

High Flow Performance

The large 4.5" x 20" filter cartridges provide a generous filtration area, allowing the system to maintain excellent flow rates with minimal pressure loss.

Performance Specifications

• Maximum Flow Rate: 1.8 m³/hr (30 L/min)
• Connection Size: 1" Female BSP (Internal Thread)
• Operating Pressure: 2–6 bar
• Operating Temperature: 5–40°C
• Cartridge Size: 4.5" x 20" (Big Blue)

Advanced Leak Protection

Ecosoft has incorporated several design improvements that make the Aquapoint XL Duo exceptionally easy to maintain:

• Dual sealing O-rings for enhanced leak protection
• Automatic cartridge alignment guide ensures perfect positioning during replacement
• Easy access housings for fast servicing
• Secure steel mounting frame for vibration resistance

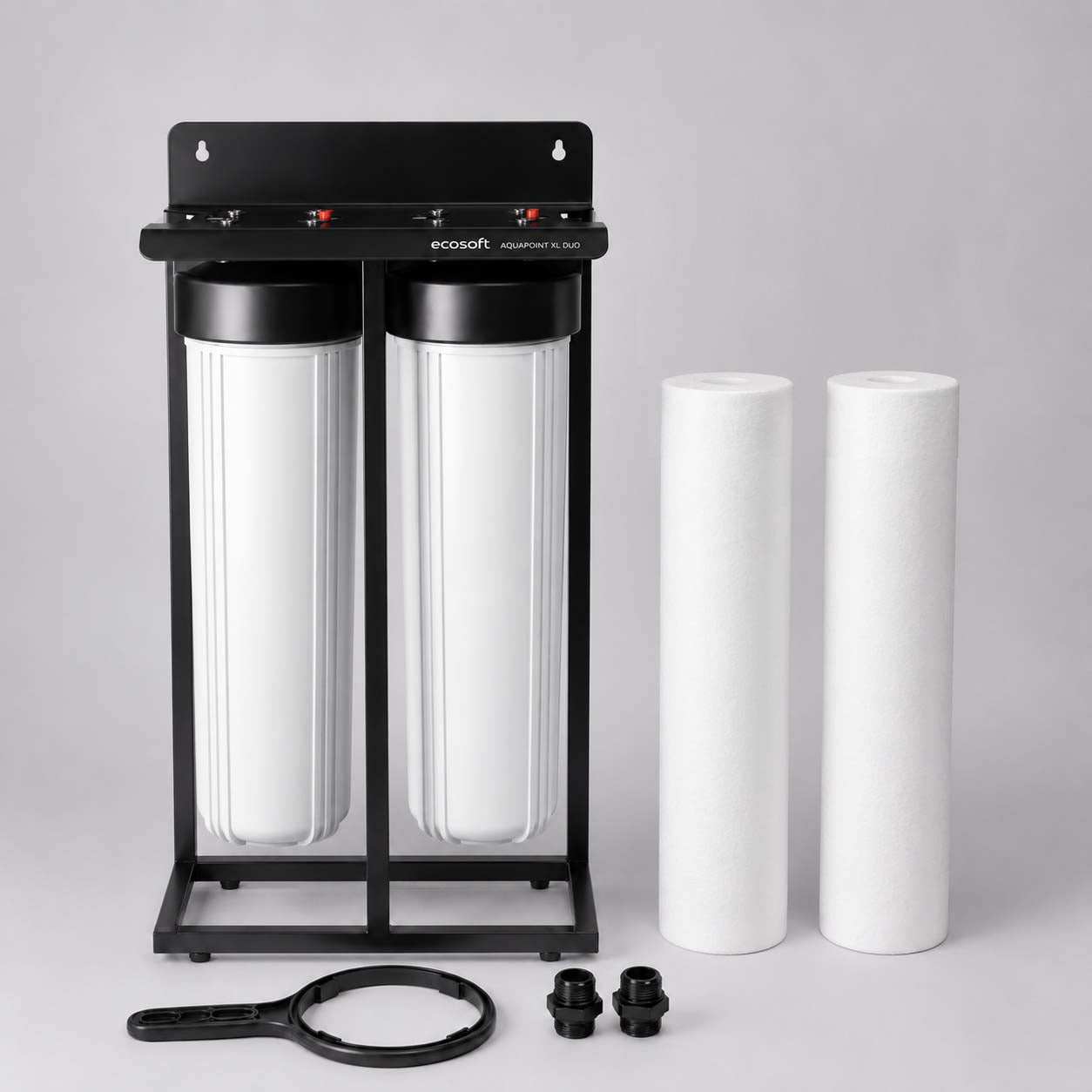

Supplied Complete With

The Aquapoint XL Duo includes everything required for installation:

• Heavy-duty steel mounting frame
• Two 4.5" x 20" filter housings

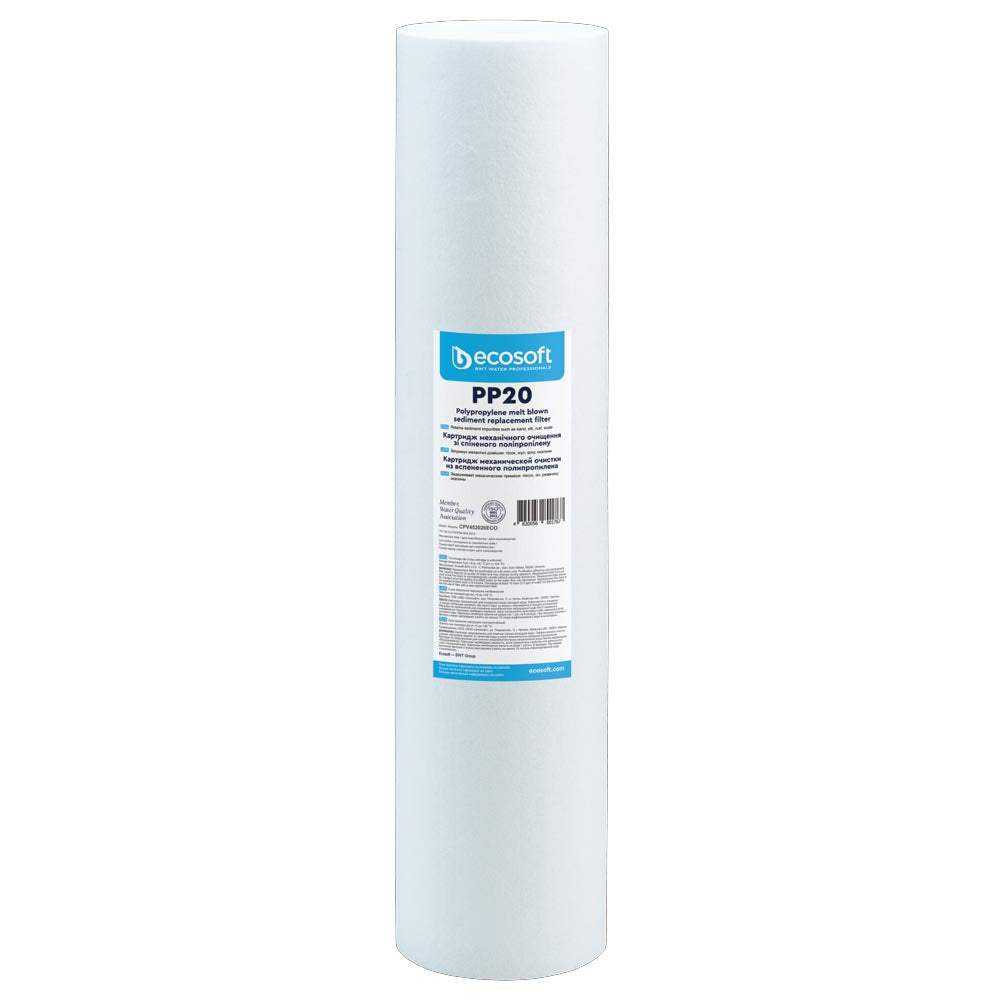

• 20 Micron polypropylene sediment filter
• 5 Micron polypropylene sediment filter
• Housing service wrench
• Two quick-connect nipples

Optional Cartridge Configurations

The Aquapoint XL Duo can be customised for different water quality problems by changing the second-stage cartridge:

• Sand & Rust – Dual polypropylene sediment filtration
• Sand & Chlorine – Sediment + Granular Activated Carbon (GAC)
• Sand & Hydrogen Sulphide (H₂S) – Sediment + Catalytic Carbon
• Sand & Iron – Sediment + FerroMix Iron Removal Cartridge

Typical Applications

Ideal for:

• Private borehole water supplies
• Well water filtration
• Rainwater harvesting systems
• Rural homes
• Cottages
• Whole house sediment filtration
• Pre-filtration before UV systems
• Protection for water softeners and reverse osmosis systems

Key Features

• Two-stage whole house filtration system
• Designed for well and rainwater supplies
• Removes sand, silt, rust and sediment
• High flow rate of up to 30 litres per minute
• Heavy-duty steel mounting frame
• Double O-ring sealing for improved leak protection
• Automatic cartridge alignment system
• Uses standard 4.5" x 20" Big Blue cartridges
• Easy cartridge replacement
• Complete installation kit included
• Protects plumbing, pumps, boilers and household appliances

Technical Specification

Why Choose the Ecosoft Aquapoint XL Duo?

The Ecosoft Aquapoint XL Duo Whole House Water Filter offers an excellent balance of high flow performance, simple maintenance and reliable sediment removal. Its heavy-duty steel frame, premium filter housings and flexible cartridge options make it an ideal solution for protecting your home's plumbing and water treatment equipment while delivering cleaner, clearer water throughout the property.
