Ecosoft CIP Unit for 2.5″ and 4″ Membrane Systems

Keep your reverse osmosis membranes performing like new with the Ecosoft CIP Unit for 2.5″ and 4″ systems. This heavy-duty clean-in-place (CIP) unit ensures effective cleaning, winterizing, and preservative treatment, restoring membrane performance and extending their lifespan. Engineered for durability and efficiency, it’s a must-have for maintaining your RO system.

Key Features

• Multi-Application System
  Use it for chemical cleaning, winterizing, or preservative treatment based on your system’s needs.

• Heavy-Duty Design
  Built to handle intensive cleaning operations for long-lasting use.

• Effective Membrane Recovery
  Restores flux and water purification rates by removing scaling, fouling, and biofilm deposits.

• High-Flow Pump
  Delivers superior performance with better entrainment of contaminants for thorough cleaning.

• User-Friendly Operation
  Designed for easy setup, monitoring, and precise control during cleaning processes.

Specifications

Operation

The Ecosoft CIP unit simplifies and enhances membrane cleaning with a highly efficient process:

1. Preparation
   Shut down the RO system and connect the CIP feed and return ports to the membrane vessel.

2. Solution Mixing
   Fill the 100 L cleaning solution tank with purified water and the required cleaning chemical. Mix thoroughly.

3. Cleaning Process
   Circulate the solution through the membrane vessel, carefully monitoring pH levels, temperature, and solution color.

The unit is capable of executing complex cleaning protocols, including the sequential use of caustic and acidic cleaners, as well as filling membrane vessels with preservative solutions during extended downtimes.

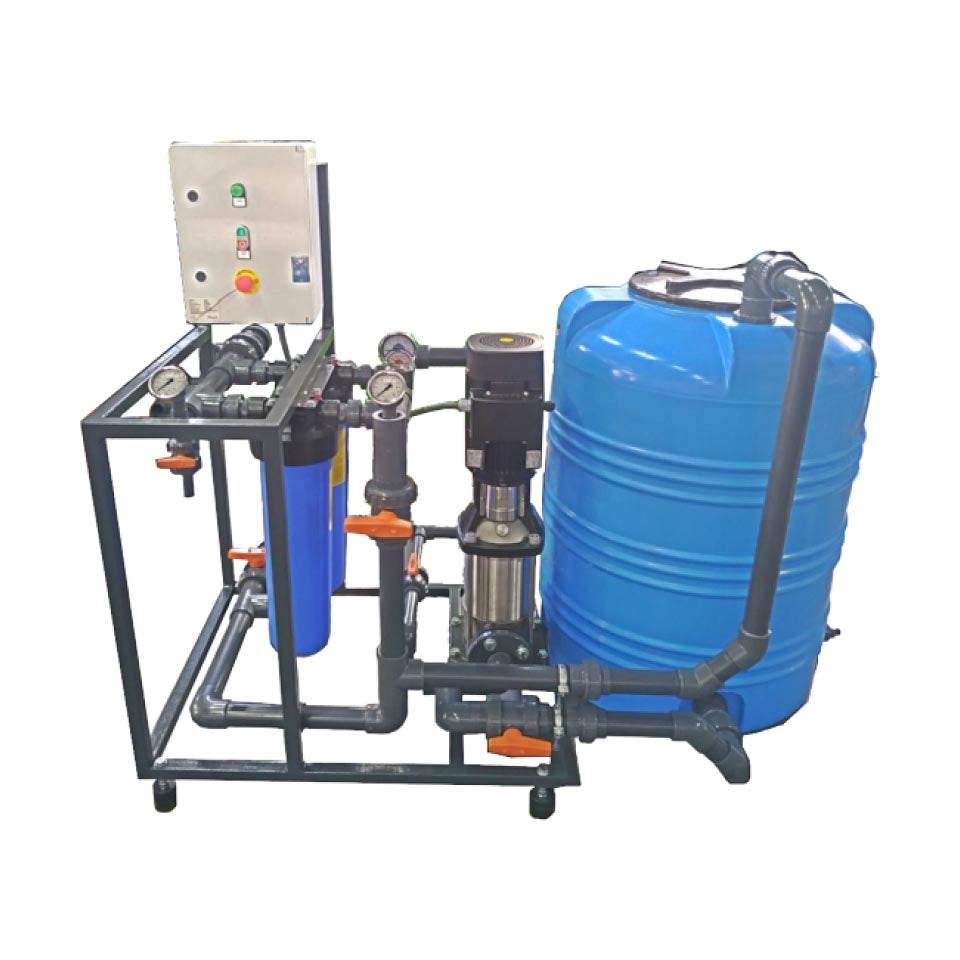

Package Contents

Get everything you need for seamless cleaning and maintenance with this comprehensive CIP unit set:

• 100 L Cleaning Solution Tank
  Large capacity for effective mixing and circulation of cleaning solutions.

• Grundfos Pump
  High-performance CM 3-4 pump (0.5 kW, 230 V) for superior flow rates.

• Sediment Filter BB20
  Features a polypropylene cartridge for additional cleaning protection.

• Control Panel
  User-friendly interface for easy operation and monitoring.

• Pressure and Temperature Gauges
  Precision tools to ensure optimal cleaning conditions.

• PVC Piping and Valves
  Durable materials for reliable performance.

• Stainless Steel Frame
  Powder-coated for enhanced durability and resistance to wear.

Benefits

• Restore RO Membrane Performance
  Removes deposits and scale to bring membranes back to peak efficiency.

• Durable and Effective Design
  Built to withstand rigorous cleaning tasks with high-flow pump capabilities.

• Versatile Applications
  Suitable for maintenance, system preservations, and seasonal shutdowns.

• Simplified Setup and Operation
  Easy-to-use controls and complete package make cleaning fast and hassle-free.

Maximize Your System’s Potential

Upgrade your cleaning process with the Ecosoft CIP Unit for 2.5″ and 4″ membrane systems. Enjoy optimal RO performance, extended membrane life, and simplified maintenance. Order today and protect your investment!
