Ecosoft Ecolite Demin Equilibrated Mixed Bed Ion Exchange Resin 25 L
Ecosoft Ecolite Demin Equilibrated Mixed Bed Ion Exchange Resin – 25 L
Ecosoft Ecolite Demin is an equilibrated, homogeneous, gel-type mixed bed ion exchange resin designed for direct water purification and the production of very low conductivity demineralised water. It combines a strong acid cation resin with a Type I strong base anion resin in a balanced mixed bed, supplied in the H+ / OH− forms ready for use.
The resin is intended for polishing and demineralisation applications where very high water purity is required, including laboratory equipment, autoclaves, hot-water boilers with aluminium-alloy heat exchangers and portable pure-water systems used for window and solar panel cleaning.
Key Features
- Equilibrated mixed bed ion exchange resin
- Strong acid cation plus Type I strong base anion resin
- Supplied in H+ / OH− ionic forms
- Designed for direct production of demineralised water
- Suitable for treated water conductivity below 0.1 µS/cm under appropriate operating conditions
- Gel-type polystyrene matrix crosslinked with DVB

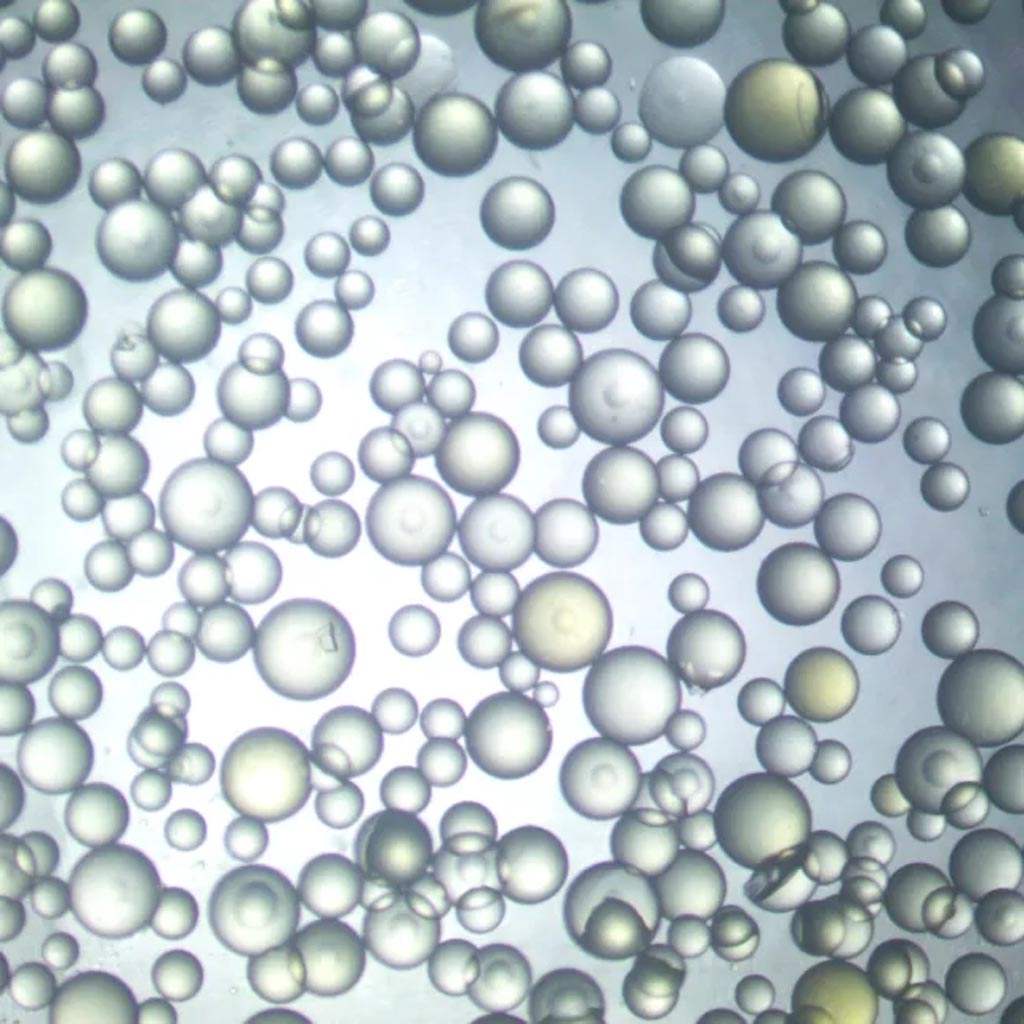

- Homogeneous clear spherical beads
- 25 litre manufacturer-sealed bag
Applications
- Hot-water boilers with aluminium-alloy heat exchangers
- Laboratory equipment
- Autoclaves
- Portable pure-water systems for window cleaning
- Portable systems for solar panel cleaning
- Production and polishing of high-purity demineralised water
Typical Physical & Chemical Characteristics
| Resin type | Strong acid cation / Type I strong base anion |
| Matrix | Gel, polystyrene crosslinked with DVB |
| Cation functional group | Sulfonic acid |
| Anion functional group | Quaternary ammonium |
| Ionic form as supplied | H+ / OH− |
| Cation capacity – Na form | 2.0 eq/L minimum |
| Cation capacity – H form | 1.9 eq/L minimum |
| Anion capacity – Cl form | 1.3 eq/L minimum |
| Anion capacity – OH form | 1.0 eq/L minimum |
| Volume ratio – cation | 40% |
| Volume ratio – anion | 60% |
| Particle size | 16–50 mesh, wet |
| Uniformity coefficient | 1.6 max. |
| Sphericity | 95% minimum |
| Shipping weight | 700–740 g/L approx. |
| pH range | 0–14 |
Suggested Operating Conditions
| Maximum temperature – non-regenerative bed | 100°C |
| Maximum temperature – regenerative bed | 60°C |
| Maximum operating temperature | 120°C |
| Minimum bed depth | 0.7 m |
| Service flow rate | 20–60 BV/h |
Operating Capacity
Ecolite Demin is intended as a polishing mixed bed, and achievable throughput depends strongly on the conductivity and ionic load of the incoming water. Ecosoft's capacity guidance is based on feed water at 100 µS/cm conductivity, treated-water conductivity of 0.1 µS/cm and a service flow rate of 60 BV/h. Lower feed-water conductivity will generally provide a longer service cycle before exhaustion.
Packaging & Storage
Product code: ECOLITED25
Pack size: 25 L
Store in the original unopened packaging in a cool, dry area. Ecosoft recommends indoor storage between 0–40°C. If the resin is exposed to freezing temperatures, allow it to thaw naturally at room temperature and do not apply heat. Protect from contamination and do not store with toxic chemicals or strongly odorous substances.
Guaranteed shelf life in original manufacturer packaging: 2 years for industrial water-treatment applications.
