Ecosoft Ecolite Soft Strong Acid Cation Exchange Resin 25 L
Technical Resources
Technical Resources
Ecosoft Ecolite Soft Strong Acid Cation Exchange Resin 25 L

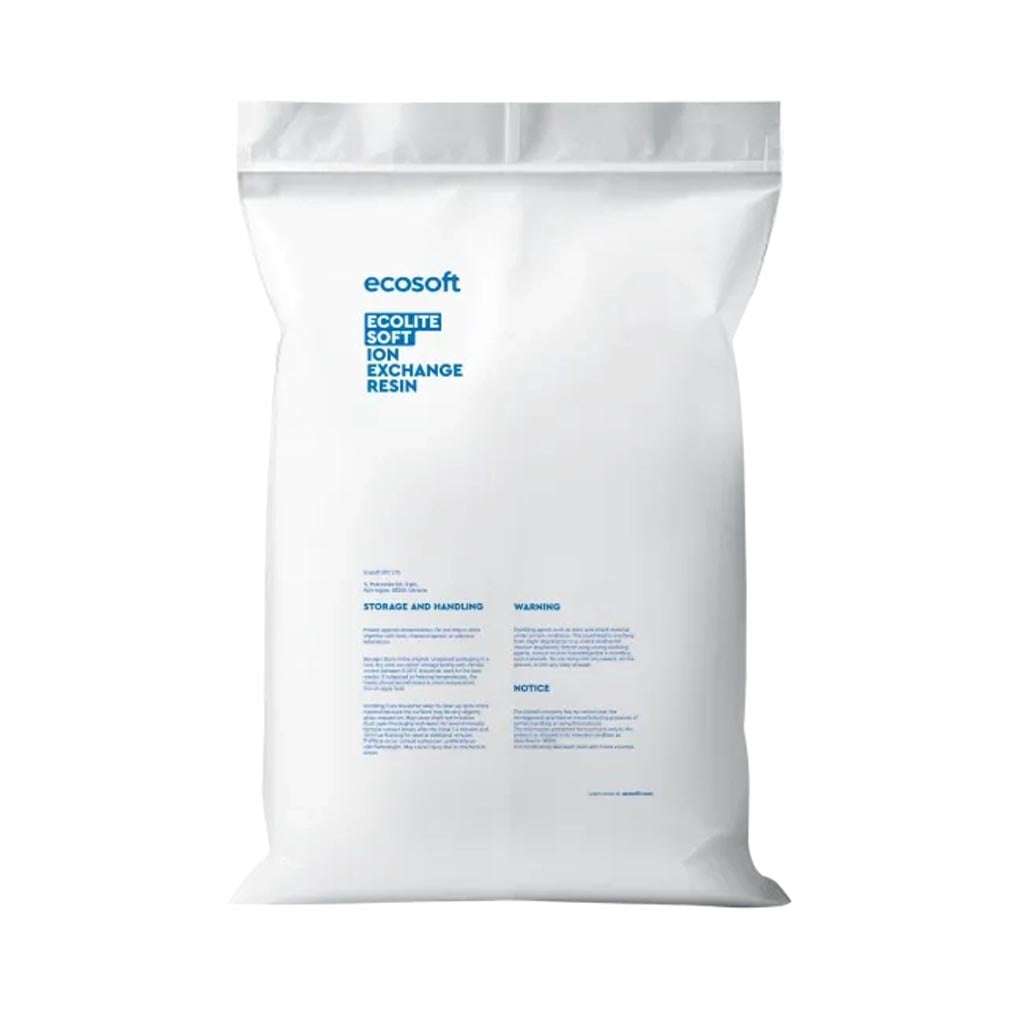

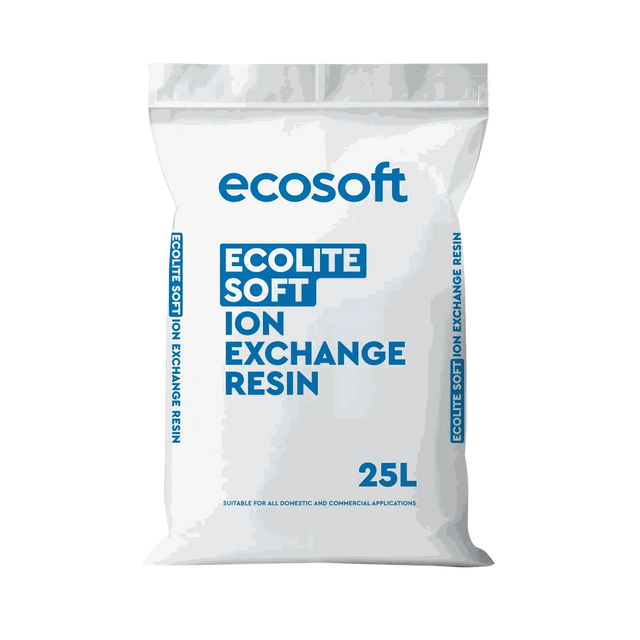

Ecosoft Ecolite Soft Strong Acid Cation Exchange Resin – 25 L
Ecosoft Ecolite Soft is a strong acid cation exchange resin supplied in the sodium (Na+) form for effective hardness reduction in residential and commercial water softeners. The gel-type resin uses a polystyrene matrix crosslinked with DVB and exchanges hardness-forming calcium and magnesium ions for sodium, helping to reduce scale formation in pipework, boilers, water heaters and other equipment.
Supplied as a 25 litre bag, Ecolite Soft combines high exchange capacity with good chemical, physical and thermal stability and is suitable for both new softener builds and resin replacement.
Key Features
- Strong acid cation exchange resin in sodium form
- Designed for domestic and commercial water softening
- High total exchange capacity – minimum 1.9 eq/L in Na+ form
- Gel-type polystyrene/DVB matrix
- Spherical resin beads with good physical stability
- Suitable for regeneration with sodium chloride brine
- 25 litre manufacturer-sealed bag
How It Works
As hard water passes through the resin bed, calcium and magnesium ions responsible for hardness are exchanged for sodium ions held on the resin. Once the resin becomes exhausted, its exchange capacity is restored by regenerating with a sodium chloride (NaCl) brine solution.
Typical Physical & Chemical Characteristics
| Resin type | Strong acid cation |
| Ionic form as supplied | Na+ |
| Matrix | Gel, polystyrene crosslinked with DVB |
| Functional group | Sulfonic acid – SO3H |

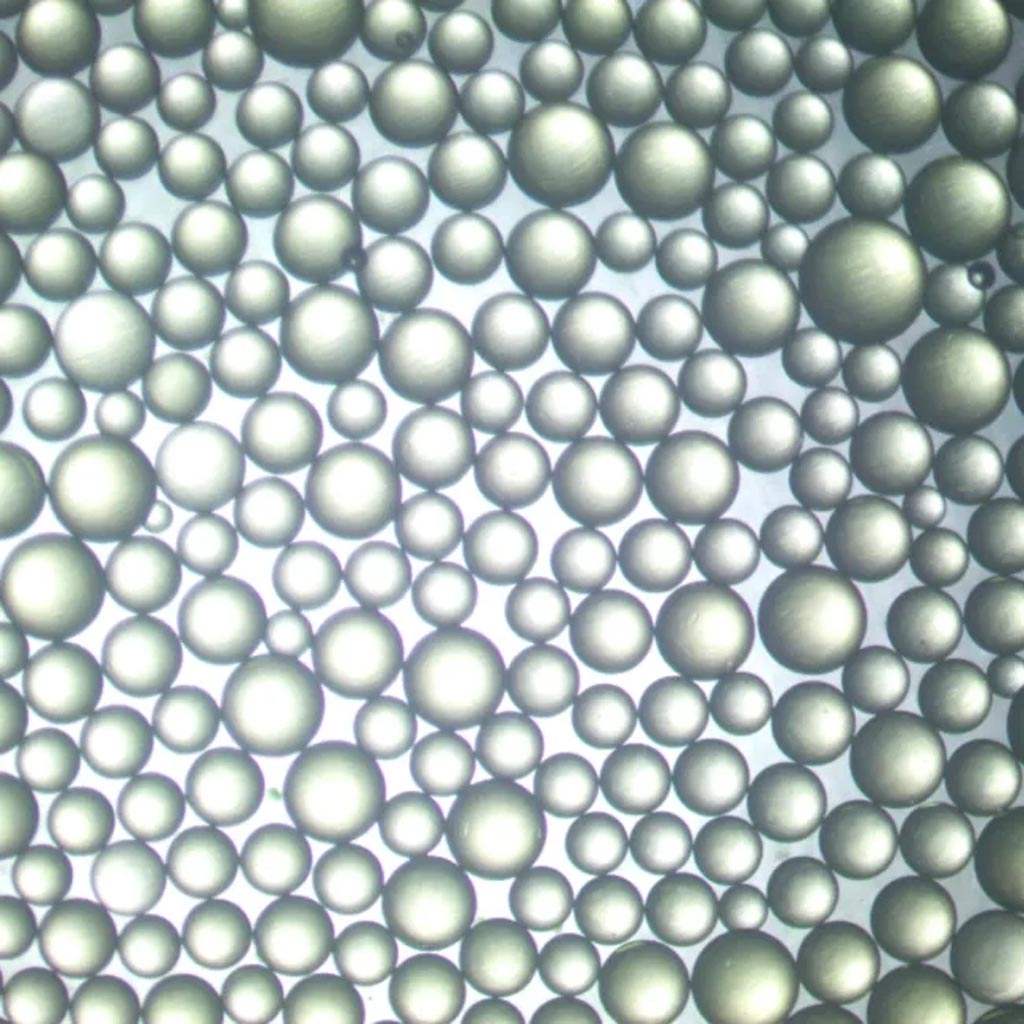

| Appearance | Yellow clear spherical beads |
| Total exchange capacity | 1.9 eq/L minimum |
| Brine pH range | 6–9 |
| Particle size | 16–50 mesh, wet |
| Particle size range | +1.2 mm <5%; -0.3 mm <1% |
| Uniformity coefficient | 1.6 max. |
| Water retention | 45–51% |
| Whole perfect beads | 92% minimum |
| Shipping weight | 770–845 g/L approx. |
| Maximum temperature | 120°C |
Suggested Operating Conditions
| Minimum bed depth | 0.6 m |
| Service flow rate | 8–40 bed volumes/hour |
| Backwash expansion | 50–75% |
| Regenerant | 8–20% NaCl |
| Regeneration flow rate | 2–7 BV/h |
| Minimum brine contact time | 30 minutes |
| Fast rinse rate | 8–40 BV/h |
Manufacturer Feed Water Guidelines
Ecosoft recommends the following raw-water limits for this media:
- Hardness: up to 15 meq/L
- Iron: up to 0.2 mg/L
- Manganese: up to 0.05 mg/L
- Permanganate oxidisability: up to 5 mg O2/L
- Free chlorine: up to 0.5 mg/L
- Recommended pre-filtration: 100 micron
Applications
- Residential water softeners
- Commercial water softeners
- Replacement resin for exhausted conventional sodium-cycle softeners
- Scale reduction ahead of boilers, water heaters and process equipment where softened water is required
Packaging & Storage
Product code: ECOLITES25
Pack size: 25 L
Store in the original unopened packaging in a cool, dry area. Ecosoft recommends indoor storage between 0–40°C. Protect the resin from contamination and from contact with toxic, chemical or strongly odorous substances.
