Ecosoft Ecolite Ultrasoft Strong Acid Cation Exchange Resin 25 L
Ecosoft Ecolite Ultrasoft Strong Acid Cation Exchange Resin – 25 L
Ecosoft Ecolite Ultrasoft is a premium-grade strong acid cation exchange resin with a highly uniform particle size, developed for high-performance water softening in commercial and industrial applications. Supplied in the sodium (Na+) form, the gel-type polystyrene sulphonate resin exchanges hardness-forming calcium and magnesium ions for sodium to reduce scale formation and protect downstream equipment.
Compared with conventional broad-size resins, Ecolite Ultrasoft has a tightly controlled bead size distribution, with at least 95% of particles between 0.5 and 0.84 mm and a uniformity coefficient of 1.20 maximum. This gives a consistent resin bed and makes it particularly well suited to demanding softening duties, including hot-water and steam boiler treatment.
Key Features
- Premium strong acid cation exchange resin
- Uniform particle size for consistent bed performance
- High total exchange capacity – minimum 2.0 eq/L in Na+ form
- Gel-type polystyrene matrix crosslinked with DVB

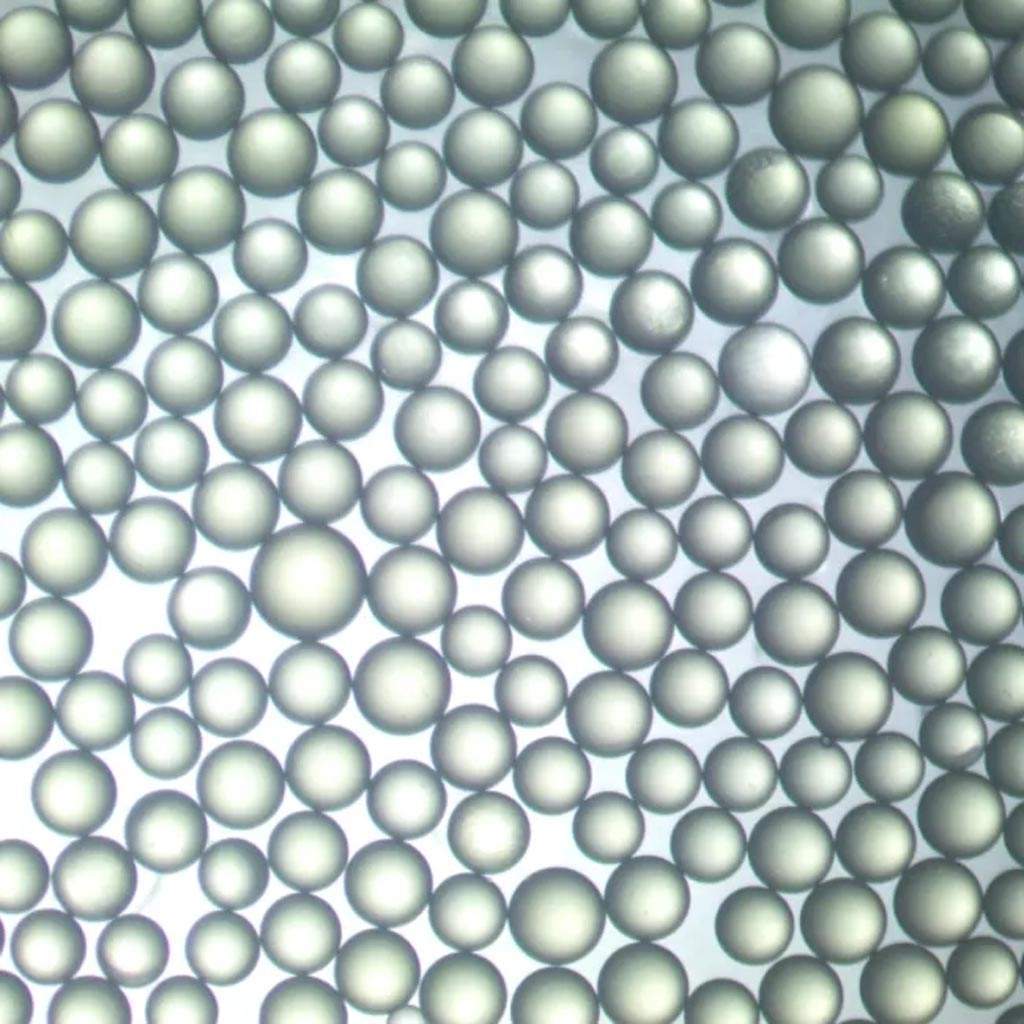

- Clear spherical beads with minimum 95% sphericity
- Suitable for sodium-cycle regeneration with brine
- Also suitable for hydrogen-cycle operation where appropriate
- 25 litre manufacturer-sealed bag
Applications
- Industrial water softeners
- Commercial water softeners
- Water treatment for hot-water boilers
- Water treatment for steam boilers
- Replacement resin for high-performance ion exchange softening systems
Typical Physical & Chemical Characteristics
| Resin type | Strong acid cation |
| Ionic form as supplied | Na+ |
| Matrix | Gel, polystyrene crosslinked with DVB |
| Functional group | Sulfonic acid |
| Appearance | Clear spherical beads |
| Total exchange capacity | 2.0 eq/L minimum |
| Particle size | 20–35 mesh, wet |
| Particle size range | 0.5–0.84 mm ≥95% |
| Uniformity coefficient | 1.20 max. |
| Water retention | 43–48% |
| Sphericity | 95% minimum |
| Swelling Na+ → H+ | 10% max. |
| Swelling Ca2+ → Na+ | 5% max. |
| Shipping weight | 780–880 g/L approx. |
| pH range | 0–14 |
Suggested Operating Conditions
| Maximum temperature – Na+ form | 120°C |
| Maximum temperature – H+ form | 100°C |
| Minimum bed depth | 0.6 m |
| Backwash expansion | 25–50% |
| Sodium-cycle regenerant | 10–15% NaCl |
| Hydrogen-cycle regenerant | 5–10% HCl or 1–8% H2SO4 |
| Regeneration flow rate | 4–11.5 BV/h |
| Minimum contact time | 20 minutes |
| Fast rinse rate | 8–80 BV/h |
| Service flow rate | 8–80 BV/h |
Backwashing
After each operating cycle, Ecosoft recommends backwashing the resin bed sufficiently to produce approximately 25–50% bed expansion. This helps remove collected foreign matter and reclassify the resin bed before the next service cycle.
Packaging & Storage

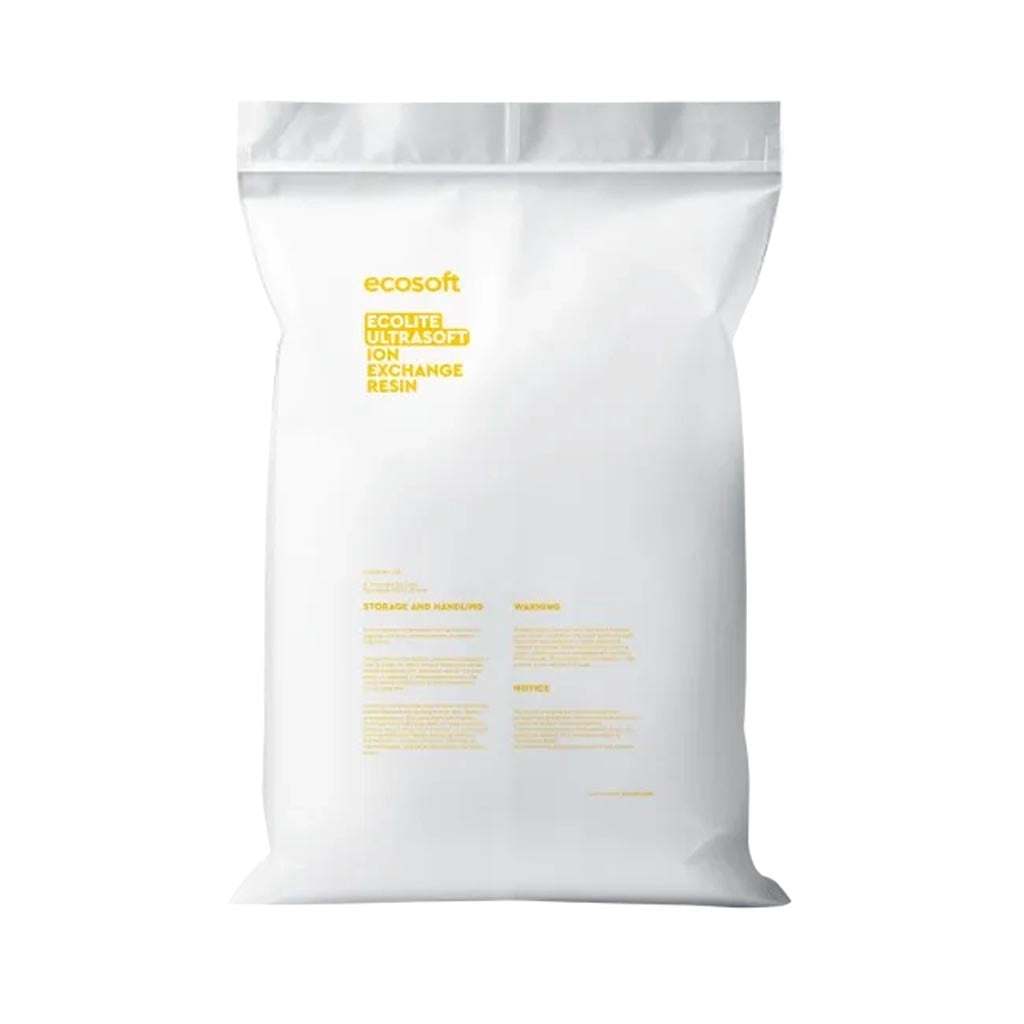

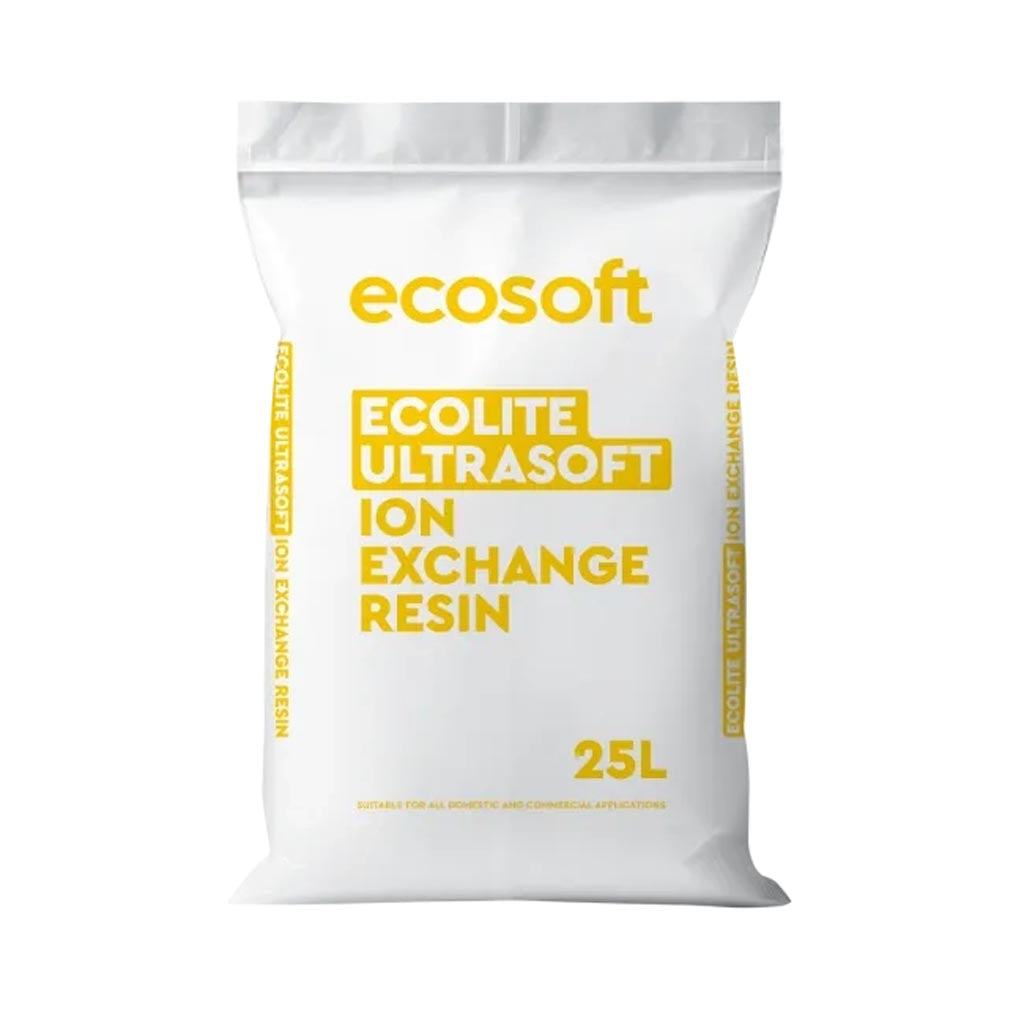

Product code: ECOLITEUS25
Pack size: 25 L
Store in the original unopened packaging in a cool, dry area. For best results, Ecosoft recommends indoor storage between 0–40°C. If the resin is exposed to freezing temperatures, allow it to defrost naturally at room temperature and do not apply heat. Protect from contamination and keep away from toxic chemicals and strongly odorous substances.
Guaranteed shelf life in original manufacturer packaging: 5 years for industrial water treatment applications and 2 years for potable water and food applications.
