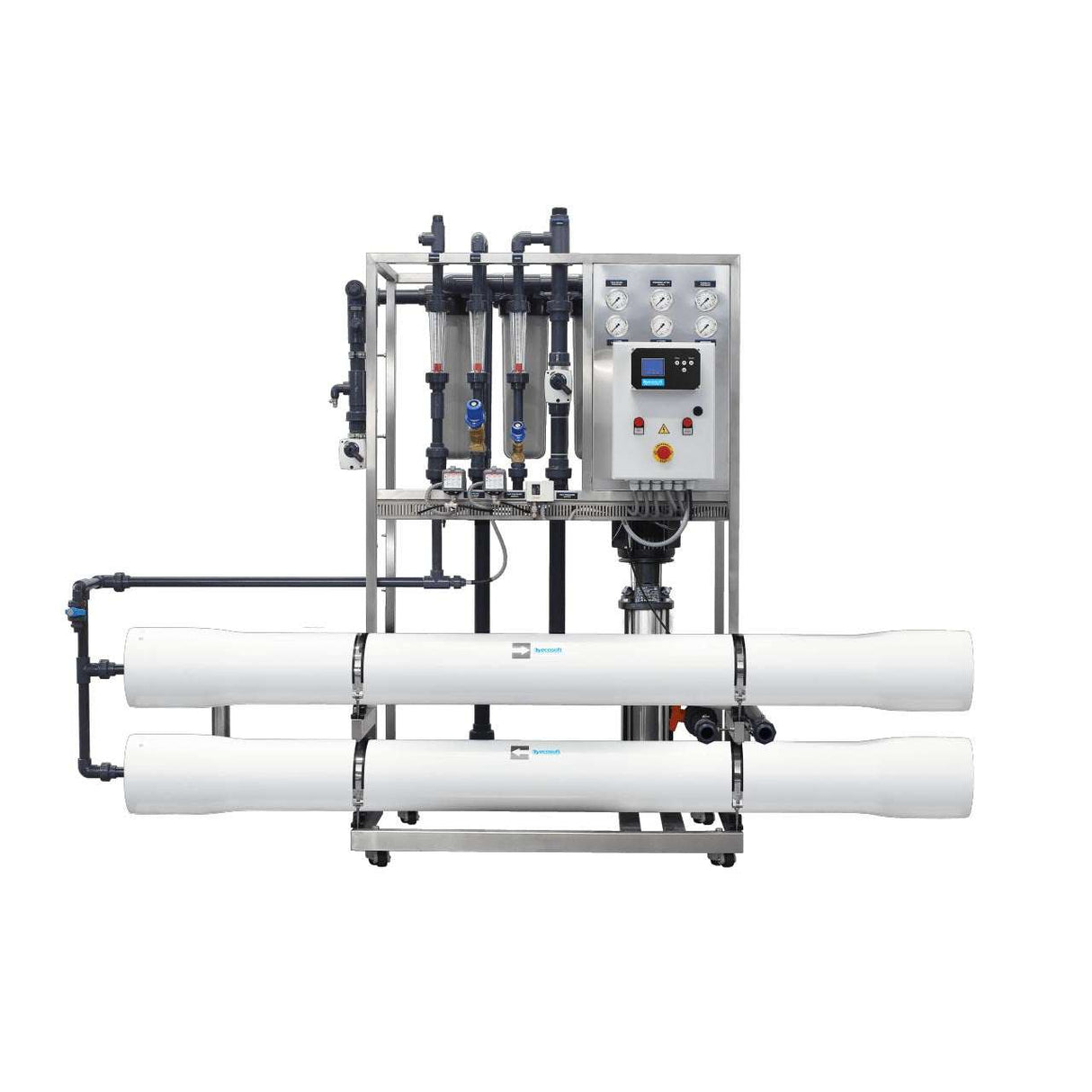

Ecosoft INOX IoT MO4 8" Reverse Osmosis System
The Ecosoft INOX IoT MO4 reverse osmosis (RO) system is an advanced, high-capacity water purification solution delivering up to 40,000 liters of pure water daily. Designed for continuous use in industrial and commercial applications, this system combines cutting-edge IoT technology, automated control features, and robust stainless steel construction for outstanding durability and efficiency.
Why Choose the Ecosoft INOX MO4?
-
Seamless IoT Integration
Monitor and control your RO system remotely with the advanced Econnect module, ensuring uninterrupted operations and quick diagnostics. -
Automated Ease of Use
Equipped with the OC6000 controller in an electrical cabinet, the system allows for automated adjustments, streamlined operation, and intuitive management. -
Durable Stainless Steel Design
Built for challenging environments, the MO4 features a high-pressure AISI 316 stainless steel pipeline and an AISI 304 stainless steel frame for lasting performance. -
Energy-Efficient Operation
Includes a Grundfos® CR 10-12 high-pressure pump for reliable flow and reduced energy consumption, offering global warranty coverage.
Technical Highlights
Performance
- Permeate Capacity: 4-5 m³/h (40,000 liters/day)
- Recovery Rate: 75%
- Maximum TDS Handling: Up to 4500 mg/L
- Operating Pressure: 8-12 bar
- Power Consumption: 4 kW
Specifications Table
| Component | Details |
|---|---|
| Pump | Grundfos® CR 10-12 |
| Membrane Vessels | 2 pcs of 8040-2 housing |
| Sediment Prefilter | 3 pcs (BB20) |
| Valves | 2 motorized, 2 balancing |
| Controller | OC6000 with LCD |
| High-Pressure Line | AISI 316 stainless steel |
| Frame | AISI 304 stainless steel |
| Frame Casters | Included for portability |
Feed Water Requirements
| Parameter | Value |
|---|---|
| TDS | Up to 4500 mg/L |
| Hardness | 150 mg/L as CaCO₃ |
| Iron | 0.1 mg/L |
| Manganese | 0.05 mg/L |
| Silicates | 20 mg/L |
| Residual Chlorine | 0.1 mg/L |
| Hydrogen Sulfide | None |
| Minimum Feed Pressure | 2 bar |
| SDI | 5 |
| COD | 4 mg/L O₂ |
Connection Dimensions
- Influent Water: G 1½″
- Permeate Outlet: G 1″
- Concentrate Outlet: G 1½″
- CIP Ports: G 1½″
Key Features
-
Smart IoT Monitoring
The Econnect module enables real-time access to operational data, helping reduce downtime and maintenance costs. -
Sturdy Stainless Steel Build
Built to endure high pressures and demanding conditions, the system offers reliability and longevity in industrial environments. -
Adaptable and Energy-Saving
Adjustable flow rates and predesigned options for membranes and chemical dosing pumps allow for tailored solutions based on feed water conditions. -
Cost-Effective Performance
The system's energy efficiency, enabled by the Grundfos® pump, ensures consistent operation while minimizing power consumption.
Applications
The Ecosoft INOX MO4 system is best suited for industries where high-purity water is crucial, such as food processing, chemical manufacturing, and pharmaceutical production. Its flexible design accommodates fluctuating water demands and varying feed water conditions, making it a versatile choice for both industrial and commercial settings.
Bring reliability, efficiency, and cutting-edge technology to your water purification needs with the Ecosoft INOX IoT MO4 system.
Contact us today for a customized solution tailored to your specific requirements!
