Ecosoft INOX IoT MO6 8" reverse osmosis system 6-8 m3/hr
Technical Resources
Technical Resources
Ecosoft INOX IoT MO6 8" reverse osmosis system 6-8 m3/hr

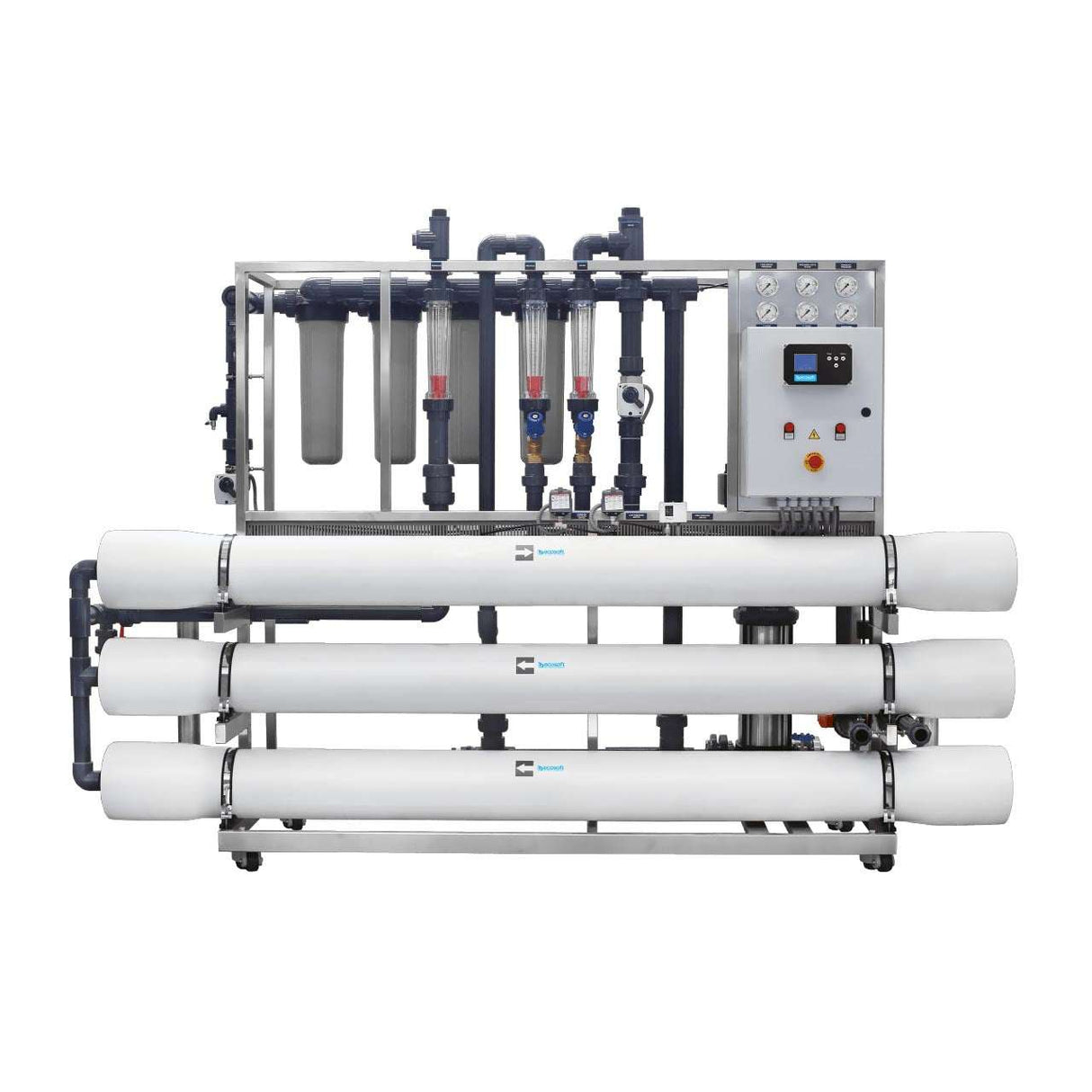

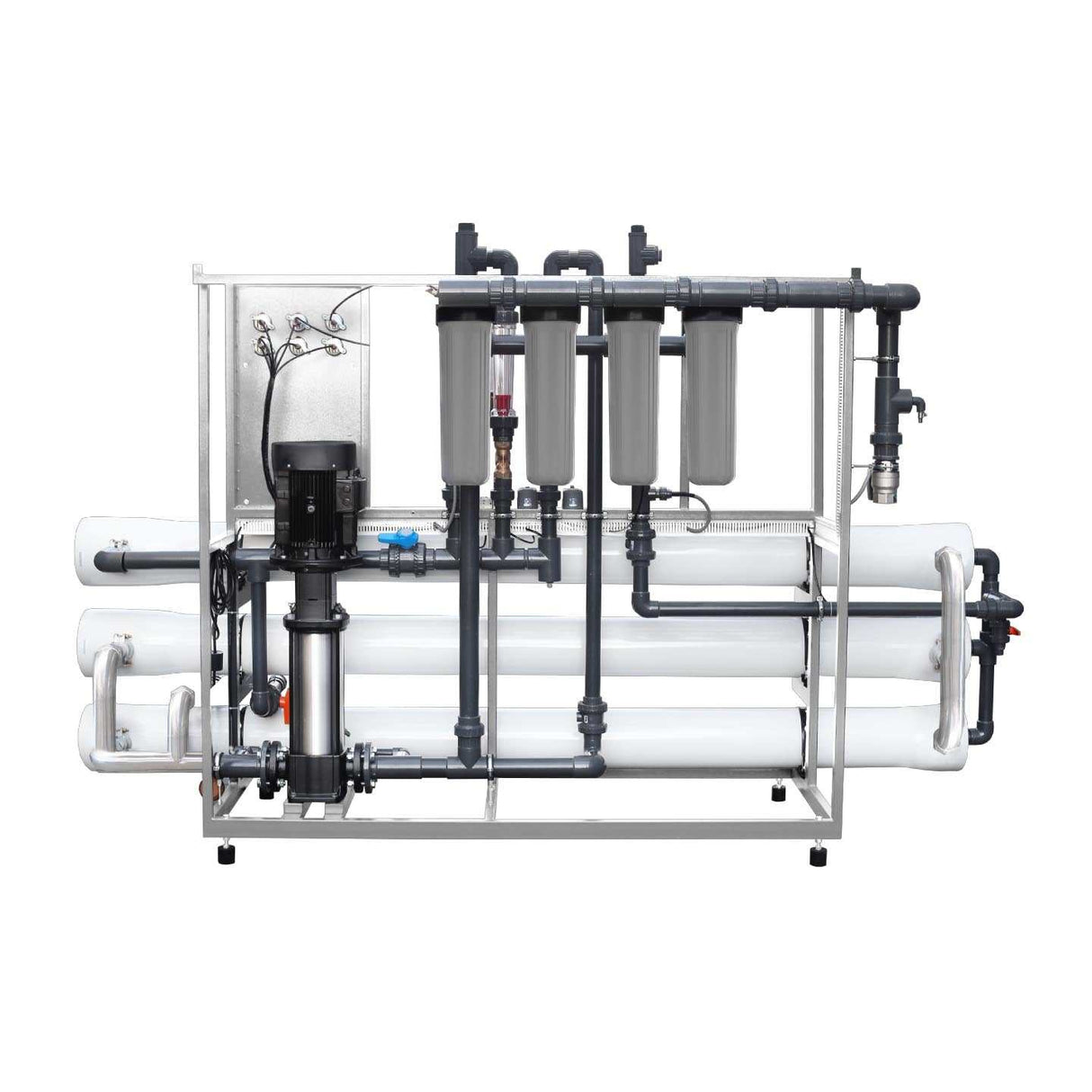

Ecosoft INOX IoT MO6 8" Reverse Osmosis System
The Ecosoft INOX IoT MO6 is a state-of-the-art reverse osmosis (RO) system designed for industrial-grade water purification. Capable of producing 6–8 cubic meters of high-quality water per hour, this system combines IoT-powered monitoring, digital automation, and robust stainless steel construction to deliver reliable and efficient performance for industrial and commercial applications.
Why Choose the Ecosoft INOX MO6?
-
Advanced IoT Monitoring
Equipped with the innovative Econnect module, you can monitor, adjust, and diagnose the system remotely to minimize downtime and ensure optimal performance. -
Precision Automation
The OC5000 controller with an LCD interface simplifies system management by streamlining operations, automating adjustments, and providing real-time status updates. -
Robust Stainless Steel Build
Constructed with a durable AISI 316 high-pressure pipeline and AISI 304 frame, the MO6 is designed for long-lasting performance in challenging environments. -
Efficient and Reliable Flow Control
The Grundfos® CR 15-9 high-pressure pump ensures stable water flow, energy efficiency, and consistent output backed by a global warranty.
Technical Highlights
Performance
- Permeate Capacity: 6–8 m³/h
- Recovery Rate: 75%
- Maximum TDS Handling: 4500 mg/L
- Operating Pressure: 8–12 bar
- Power Consumption: 7.5 kW
Specifications Table
| Component | Details |
|---|---|
| Pump | Grundfos® CR 15-9 |
| Membrane Vessels | 3 pcs of 8040-2 housing |
| Sediment Prefilter | 4 pcs (BB20) |
| Valves | 2 motorized, 2 balancing |
| Controller | OC5000 with LCD |
| High-Pressure Line | AISI 316 stainless steel |
| Frame | AISI 304 stainless steel |
| Frame Casters | Included for portability |
Feed Water Requirements
| Parameter | Value |
|---|---|
| TDS | Up to 4500 mg/L |
| Hardness | 150 mg/L as CaCO₃ |
| Iron | 0.1 mg/L |
| Manganese | 0.05 mg/L |
| Silicates | 20 mg/L |
| Residual Chlorine | 0.1 mg/L |
| Hydrogen Sulfide | None |
| Minimum Feed Pressure | 2 bar |
| SDI | 5 |
| COD | 4 mg/L O₂ |
Connection Dimensions
- Influent Water: G 2″
- Permeate Outlet: G 1½″
- Concentrate Outlet: G 2″
- CIP Ports: G 1½″
Key Features
-
IoT-Enabled Monitoring
Enjoy complete control and seamless access to diagnostic data remotely via the Econnect platform. -
Premium Stainless Steel Durability
Designed to operate under high pressure and resist corrosion, the stainless steel frame and piping ensure long-lasting performance. -
Customizable Options
Select from a variety of flexible features, including dosing pumps, specialized membranes, and raw water mixing lines, to meet unique operational needs. -
Cost and Energy Efficiency
With the Grundfos® pump, you get stable, energy-saving performance supported by global warranty coverage for true peace of mind.
Applications
The Ecosoft INOX MO6 is engineered for industries requiring large volumes of purified water, including food and beverage manufacturing, pharmaceutical production, and chemical processes. Its high capacity, adaptable operation, and robust construction make it an outstanding choice for demanding industrial and commercial environments.
Increase efficiency and ensure reliable water purification with the Ecosoft INOX IoT MO6 system.
Contact us today to learn more about how the MO6 can transform your water treatment process!
