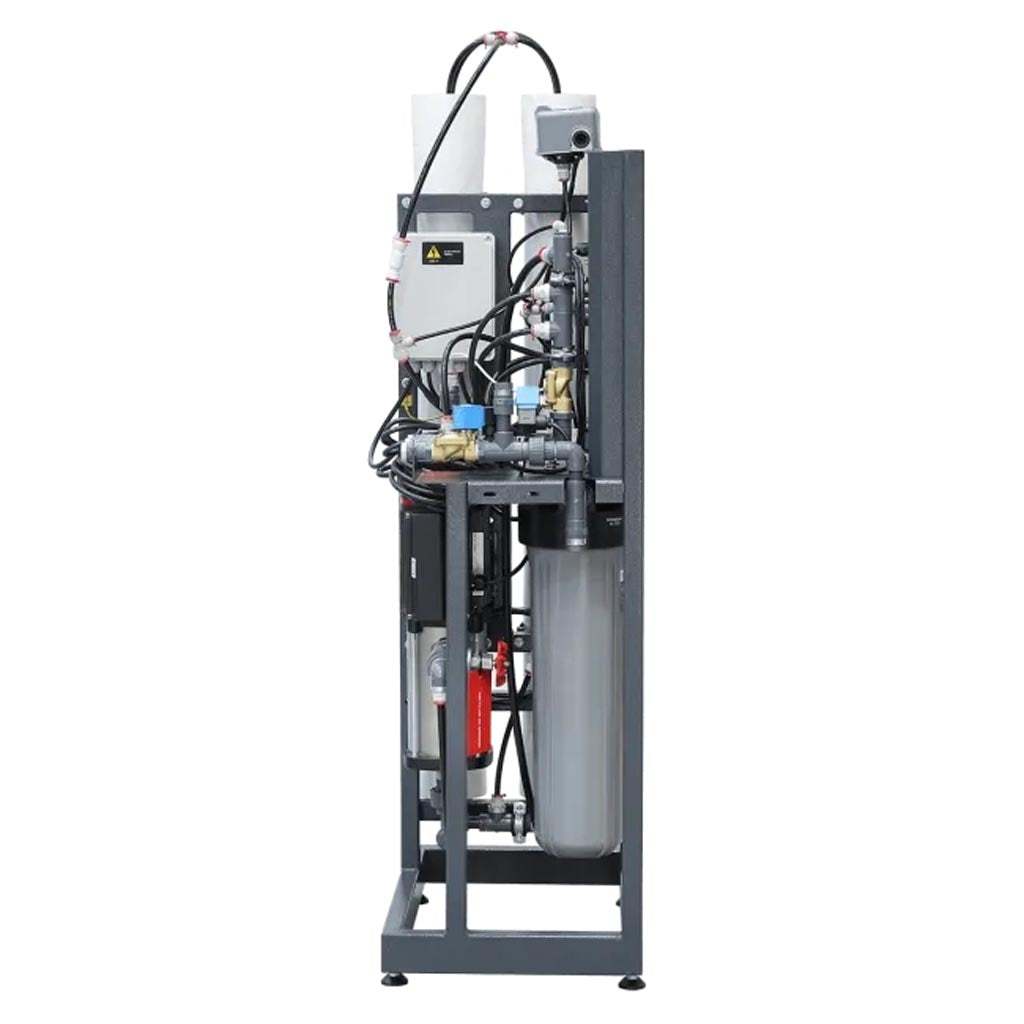

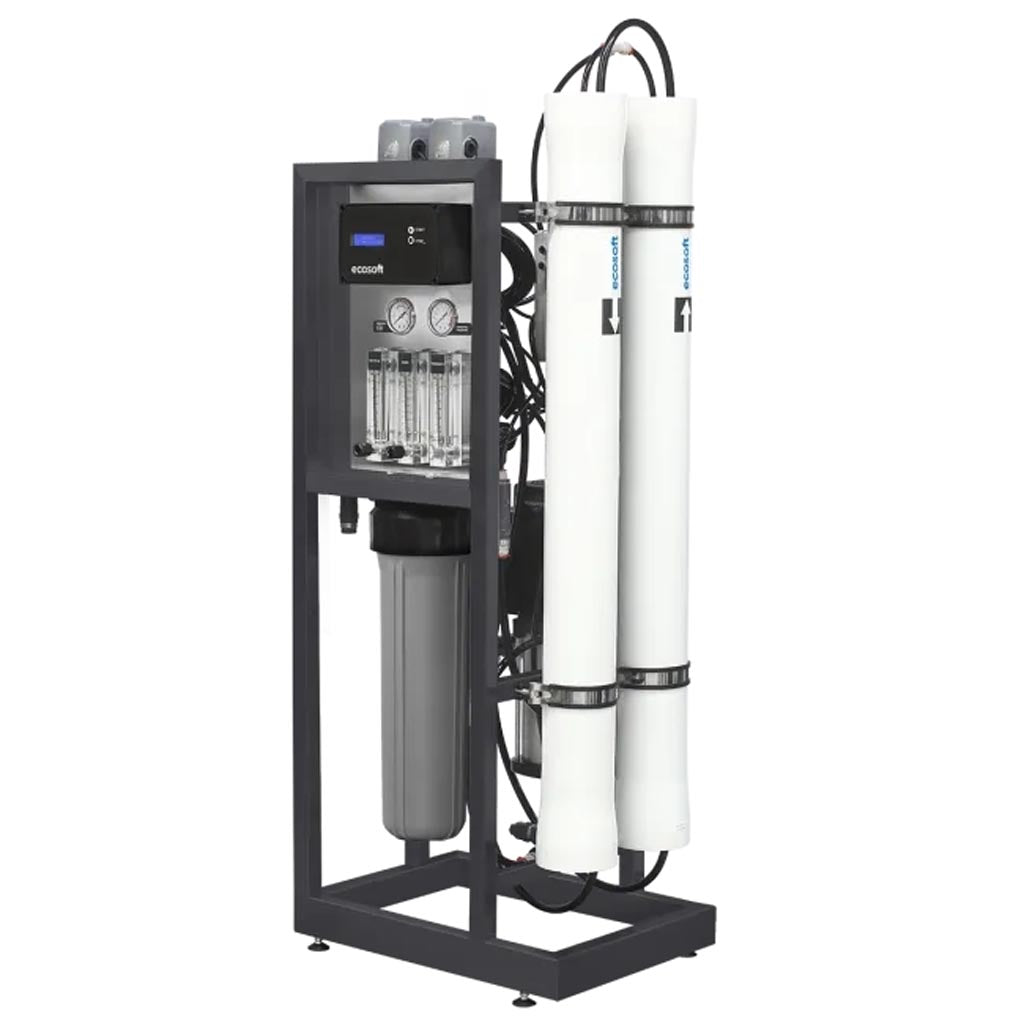

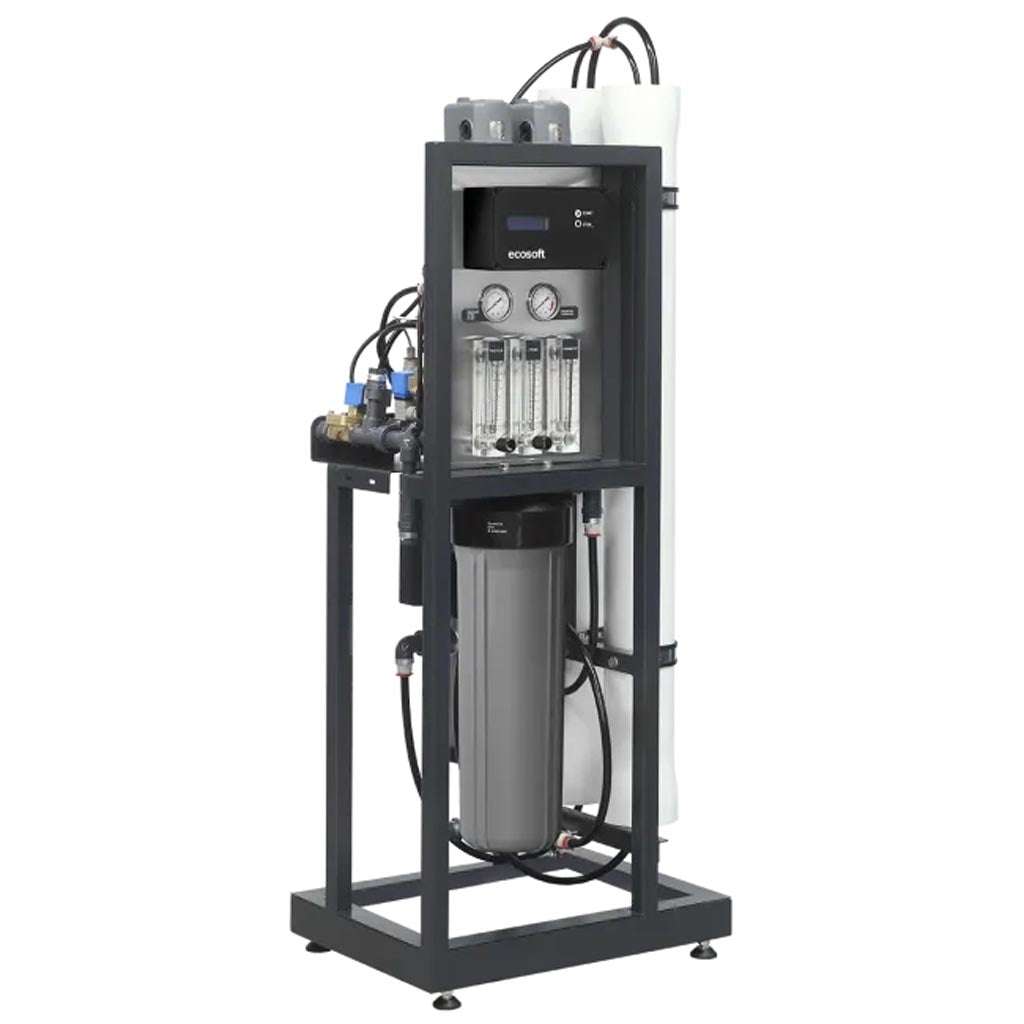

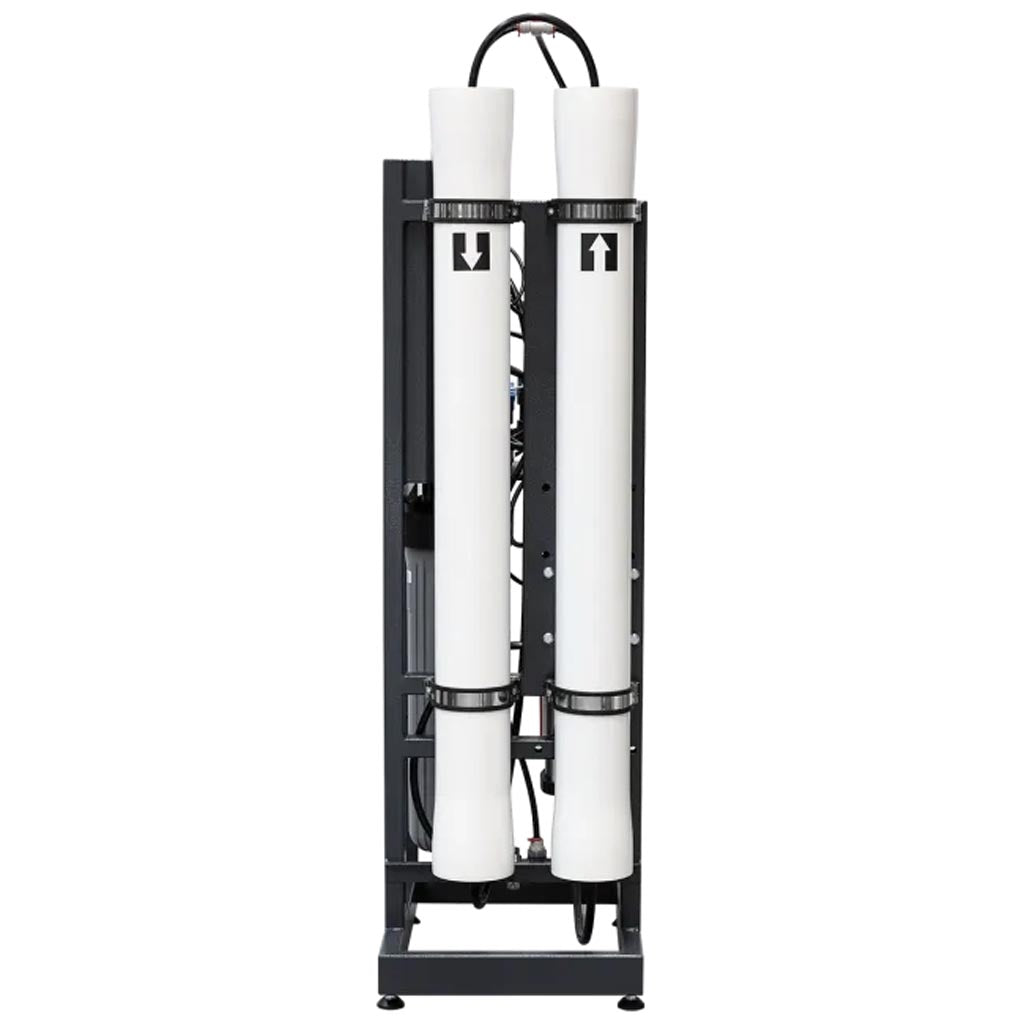

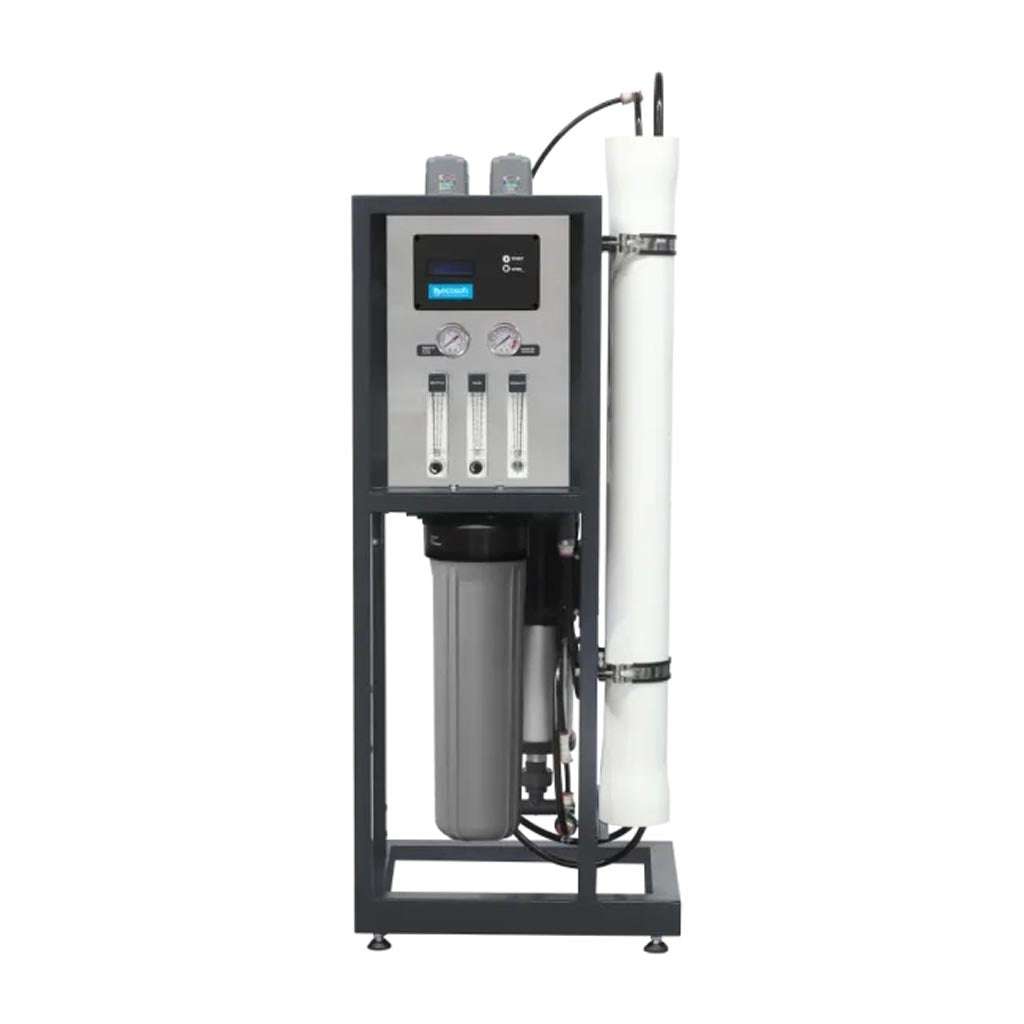

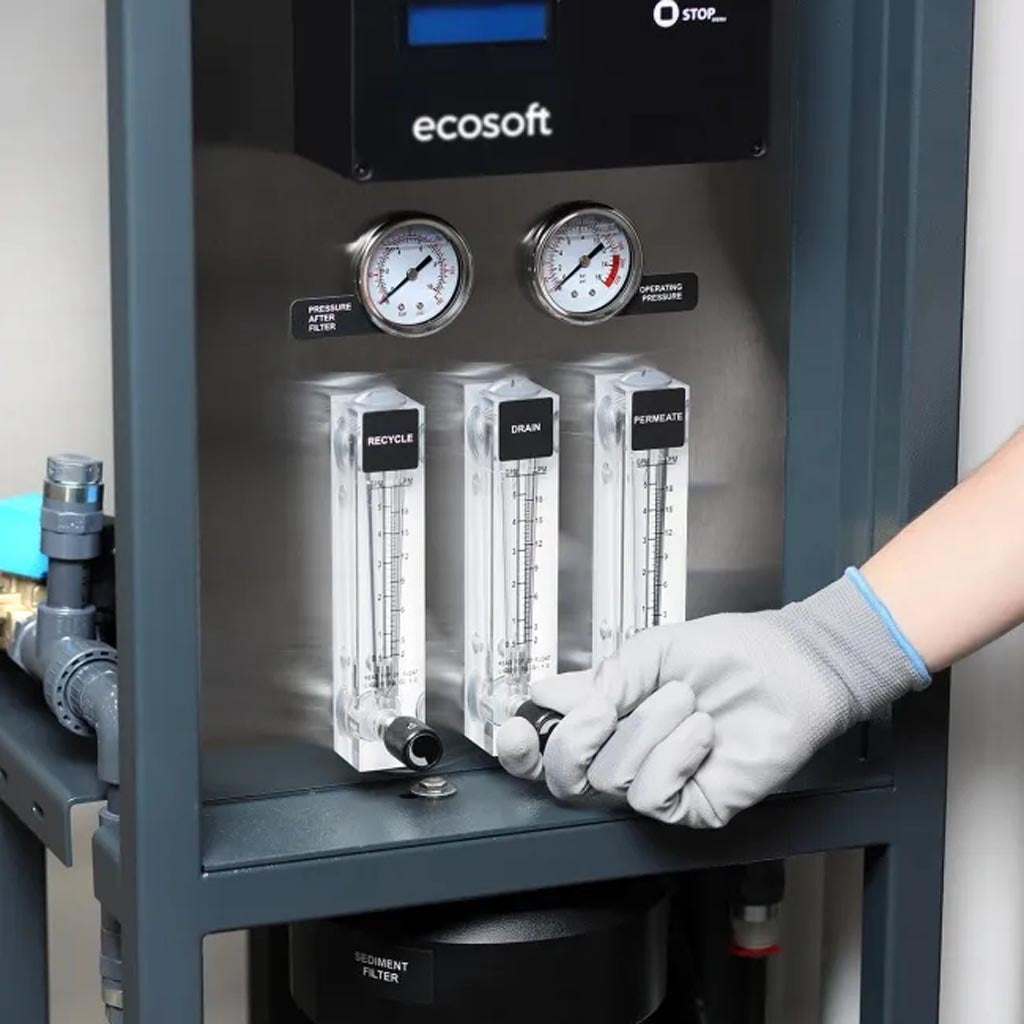

Ecosoft Professional MO12000 4″ Reverse Osmosis System 500LPH
The Ecosoft Professional MO12000 is an advanced 4″ reverse osmosis system designed for efficiency, durability, and adaptability. With its 500 liters per hour flow capacity and superior energy efficiency, it’s the perfect solution for a wide range of commercial and light industrial water purification needs.
Key Benefits
- Unmatched Energy Efficiency: Operates at just 0.67 kW per 500 liters, saving up to €500 annually compared to similar systems.
- Advanced Performance Customization: Features flexible flow adjustment, permeate flushing, and blending assembly for diverse applications.
- Reliable 24/7 Operation: Includes robust components like the Ecosoft OC5000 controller and Grundfos® CM 1-10 pump for seamless performance.
- Extended Membrane Life: Permeate flushing increases membrane lifespan by up to 30%.
- Wide-Ranging Applications: Ideal for car washes, hotels, bottling plants, and food production operations.
Features and Advantages
The Ecosoft MO12000 delivers performance, reliability, and cost-effectiveness through its carefully selected components and advanced design:
- Flow Capacity: 500 L/h or 12,000 L/day for high-demand environments.
- Energy Efficiency: Uses only 0.67 kW for lower operational costs.

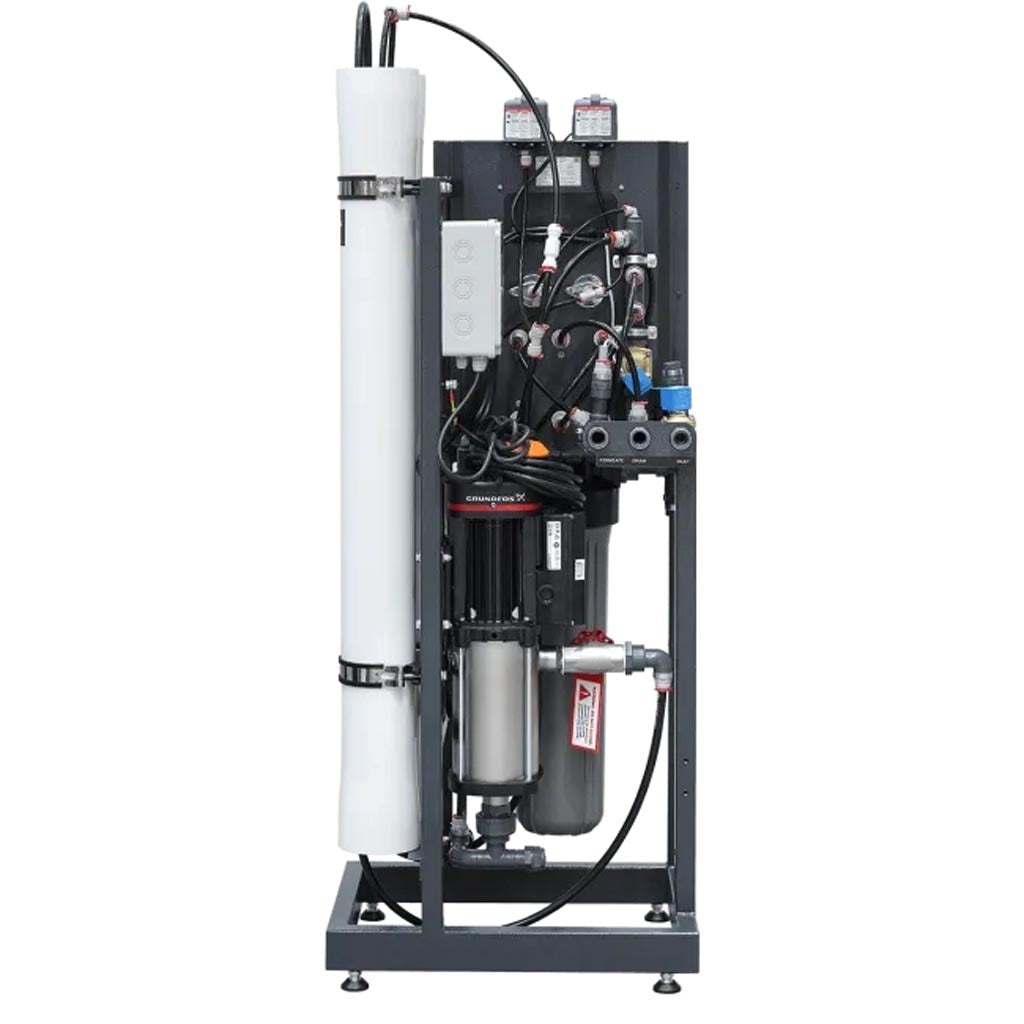

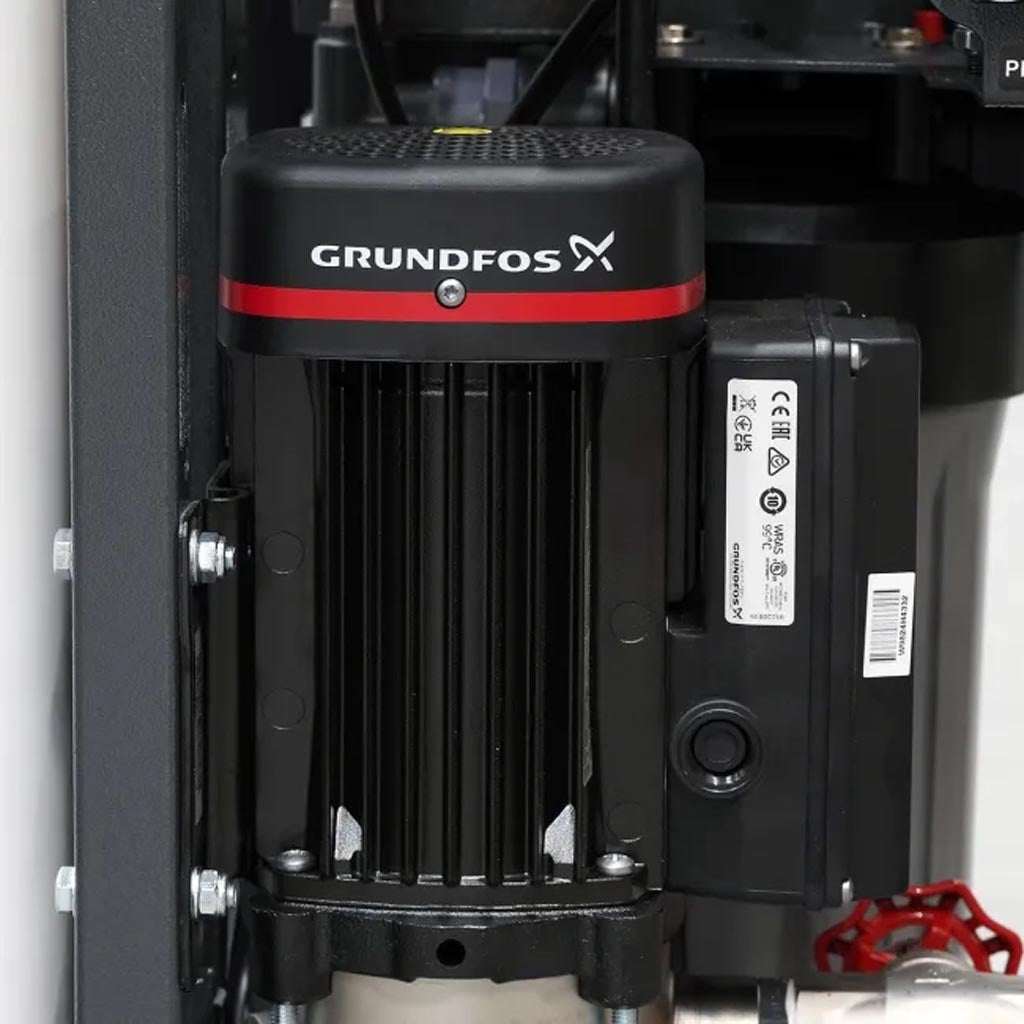

- Pump Technology: Equipped with the Grundfos® CM 1-10 pump for quiet, energy-efficient operation.

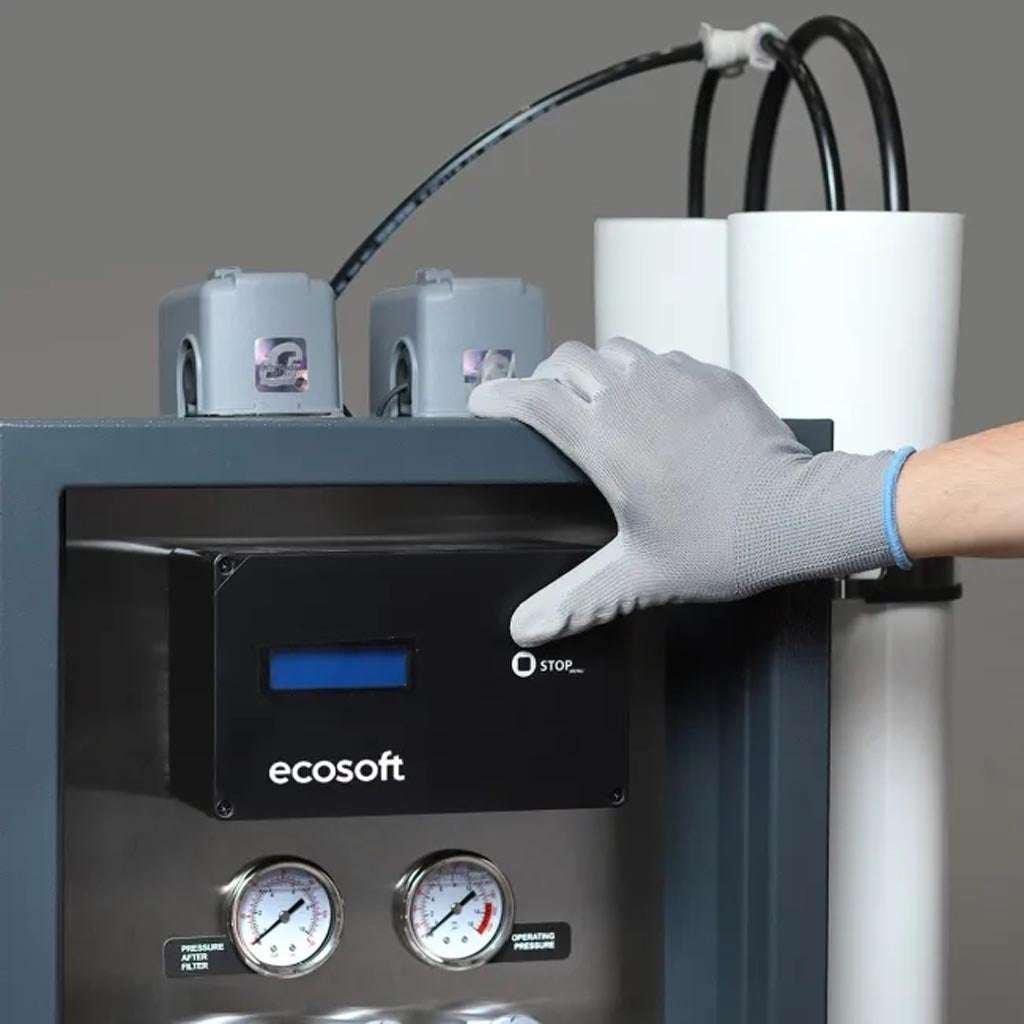

- Smart Control: Ecosoft OC5000 controller enables custom settings and real-time performance tracking.
- Sturdy Build: Powder-coated steel frame, capable of quick maintenance.

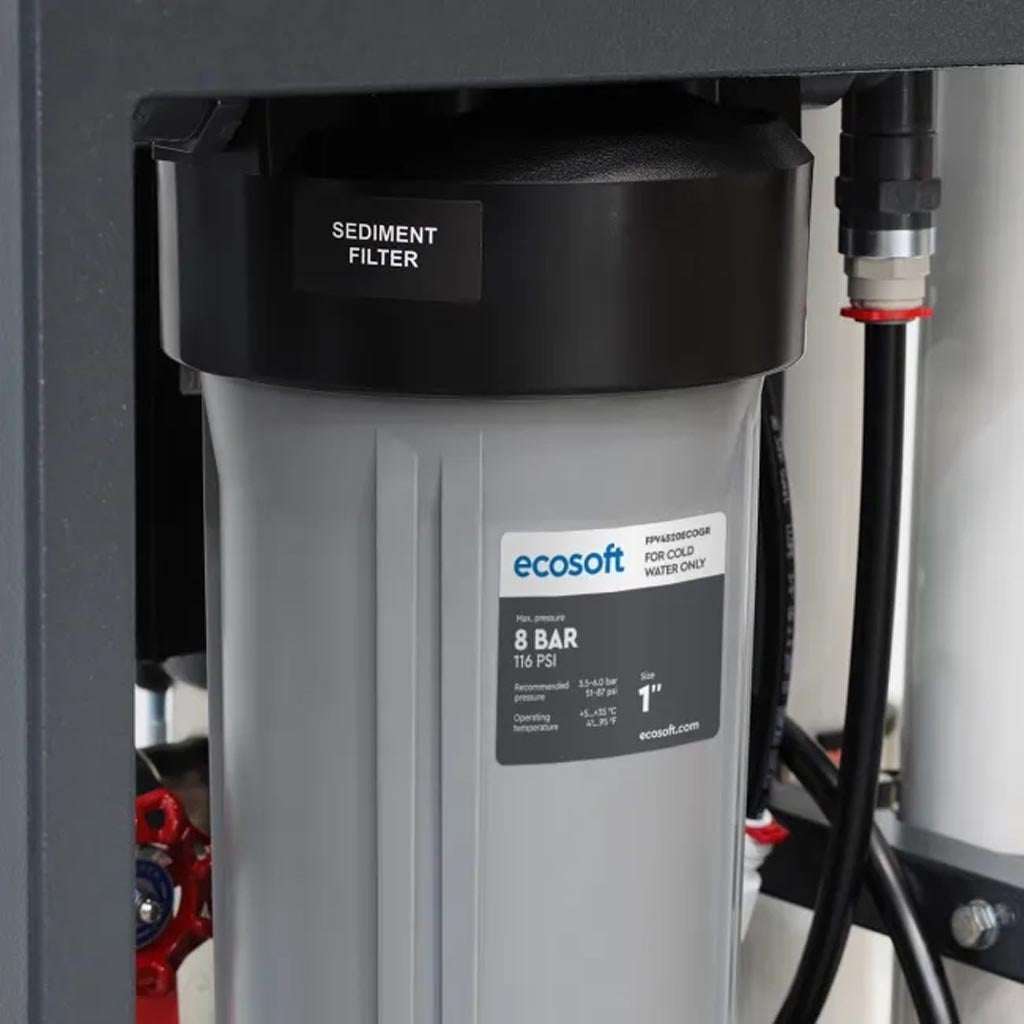

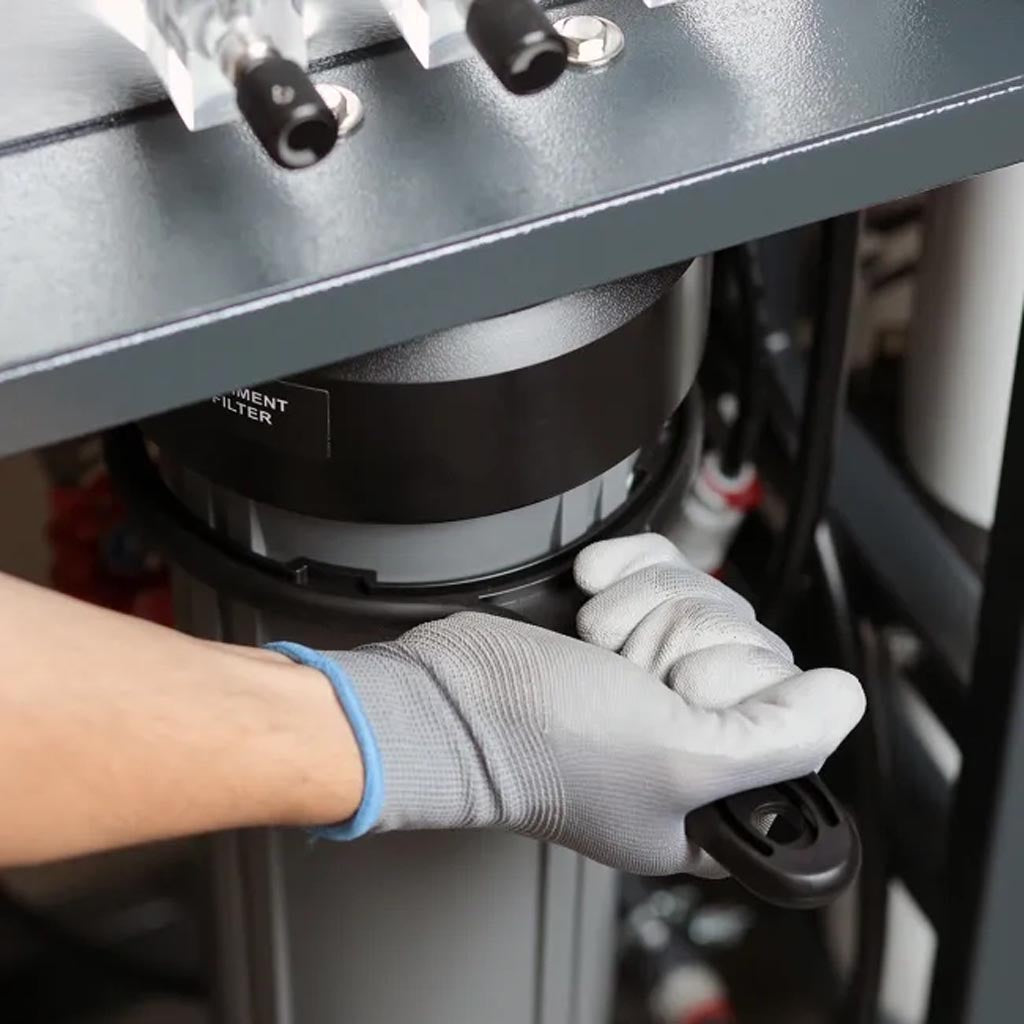

- Pre-Filtration: Includes a sediment filter system to safeguard membranes from contaminants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 L/h (12,000 L/d) |
| Recovery Rate | Up to 75% |
| Power Consumption | 0.67 kW |
| Operating Pressure | 8–12 bar |
| Maximum Pressure | 14 bar |

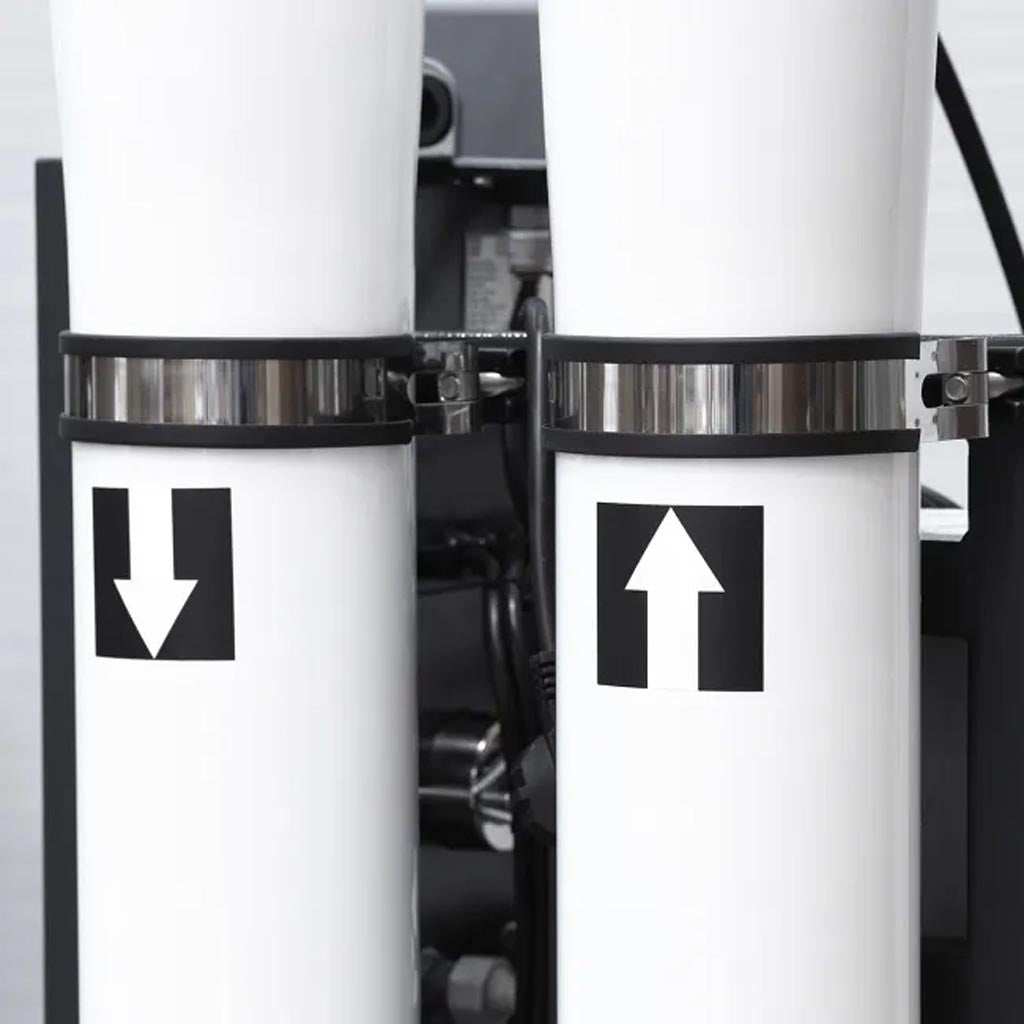

| Membrane Type and Quantity | 2 × 40″ × 40″ |
| Service Feed Flow | 650–800 L/h |
| Forward Flush Feed Flow | 2400 L/h |
| Permeate Flow Rate | 8.3 LPM |
| Concentrate Flow Rate | 2.8 LPM |
| Recycle Flow Rate | 9.2 LPM |
| Compatible Water TDS | Up to 3000 ppm |
| Dimensions (H × W × D) | 1450 × 540 × 385 mm |
| Weight | 65 kg |
Source Water Requirements
- Maximum TDS: 3000 ppm
- Hardness: 150 ppm CaCO₃ (without antiscalant), 15000 ppm CaCO₃ (with antiscalant)
- Silica: 20 mg/L SiO₂
- Residual Chlorine: 0.1 mg/L
- Chlorides: 500 mg/L
- Iron and Manganese: 0.1 mg/L and 0.05 mg/L respectively
Maintenance Guidelines
Timely maintenance ensures that the Ecosoft MO12000 continues to deliver top-notch performance:
- Sediment Filter: Replace every 4 months or if pressure drops by 0.5 bar.
- Membrane Care: Clean or replace membranes every 6 months if performance drops by 15–20% or pressure increases by a similar amount.
Note: Always use sterile gloves when handling membranes, and disinfect the system when high microbiological purity is required.
