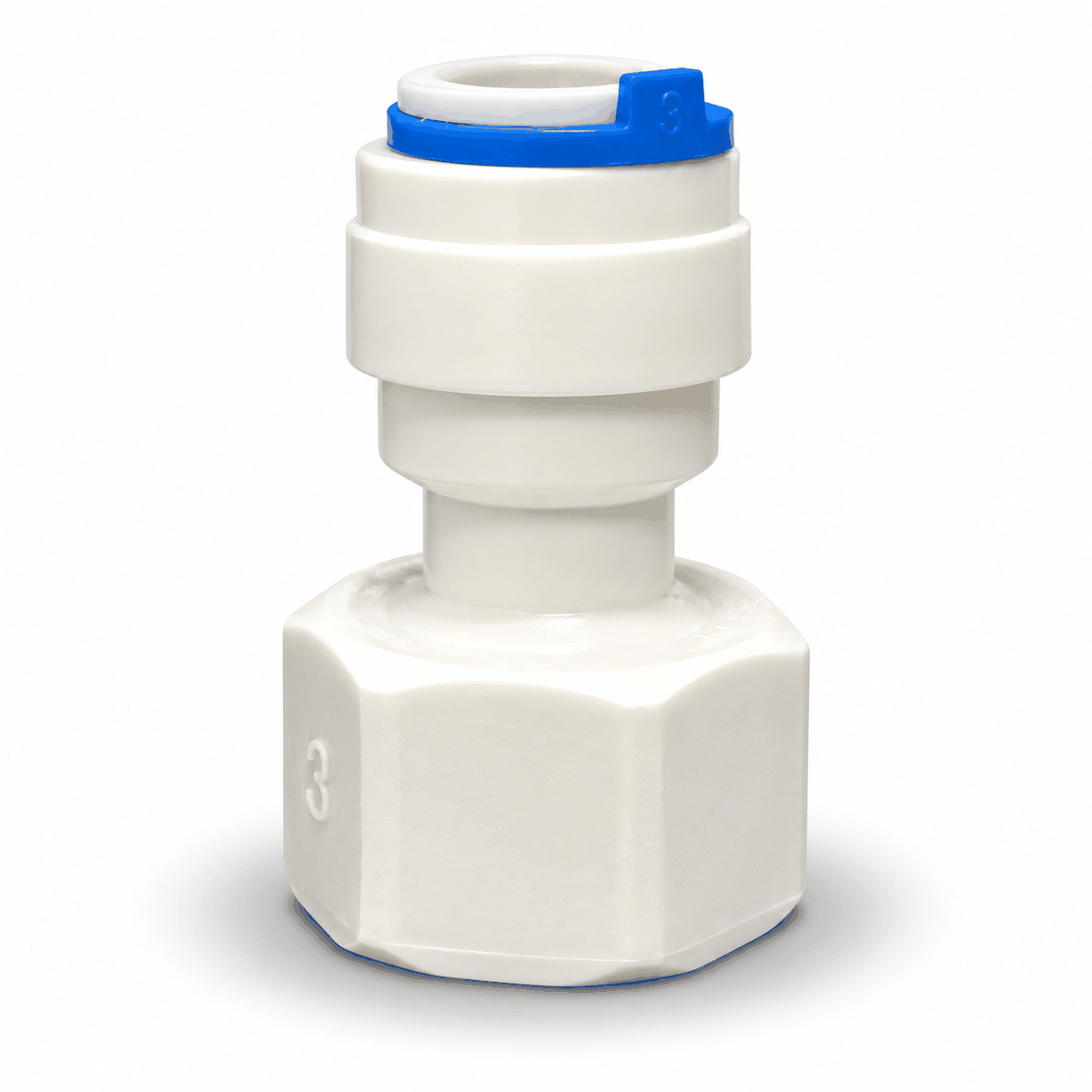

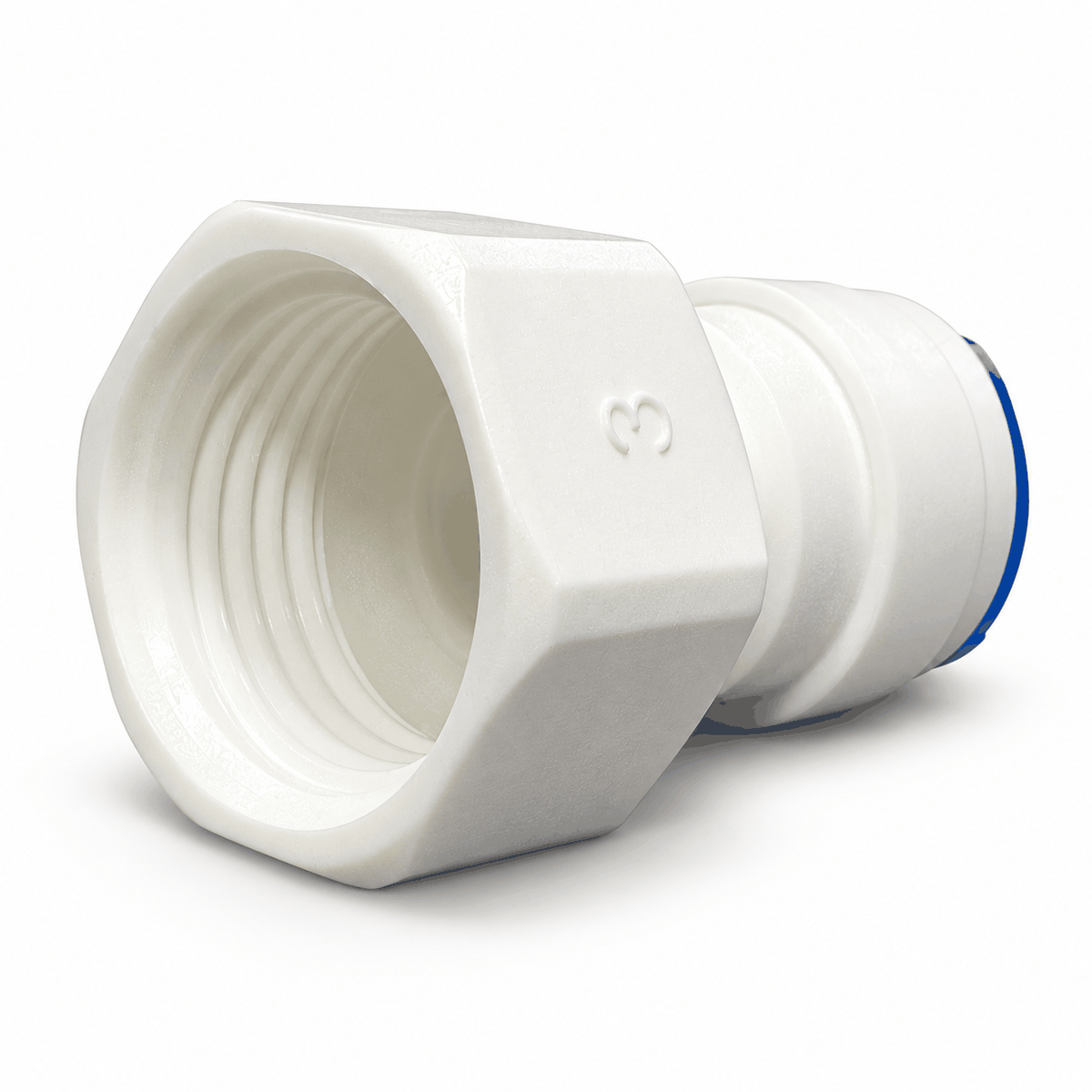

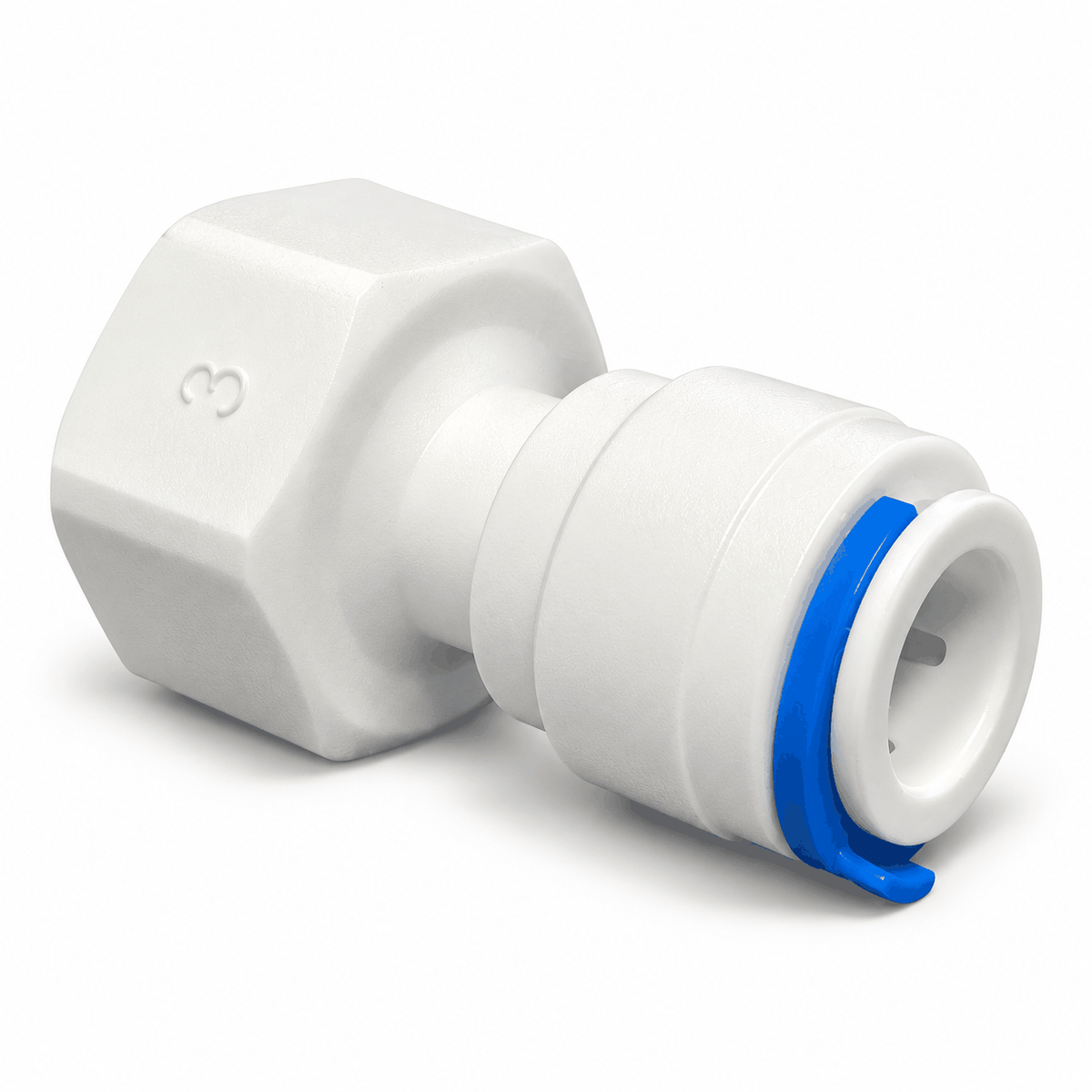

Female Adaptor 3/8'' Pushfit x 1/2" BSPF

Female Adaptor 3/8" Pushfit x 1/2" BSPF

The Female Adaptor 3/8" Pushfit x 1/2" BSPF provides a simple and reliable way to connect 3/8" OD tubing to a 1/2" BSP male threaded connection. Manufactured from durable polyethylene plastic, the fitting is suitable for a wide range of water treatment, filtration and dispensing applications.

The 3/8" push-fit connection allows tubing to be installed quickly without specialist tools. Simply push the tube fully into the fitting to create a secure connection. The 1/2" BSP female threaded end enables connection to compatible male threaded valves, filter housings, manifolds and other water treatment components.

Designed for water applications, the adaptor is corrosion resistant, lightweight and suitable for installations where a compact and easily serviceable connection is required.

Key Features

• 3/8" push-fit x 1/2" BSP female thread
• Quick and easy push-fit tube connection
• No specialist installation tools required
• Durable polyethylene plastic construction
• Corrosion resistant
• Suitable for water applications
• Compact straight adaptor design
• Maximum working pressure: 145 psi / approximately 10 bar
• Suitable for use with compatible 3/8" OD tubing

Typical Applications

Ideal for use in:

• Reverse osmosis systems
• Water purifiers
• Drinking water filtration systems
• RODI systems
• Water dispensing equipment
• Refrigerators and ice makers
• Coffee machines
• Beverage dispensing systems
• General small-bore water plumbing

Installation Notes

Ensure tubing is cut cleanly and square before pushing it fully into the fitting. Avoid excessive bending, twisting or pulling loads on the fitting, as external stresses may cause damage or leakage.

Connection: 3/8" Pushfit x 1/2" BSPF
Material: Polyethylene Plastic
Configuration: Straight Female Adaptor
Medium: Water
Maximum Working Pressure: 145 psi / approx. 10 bar
