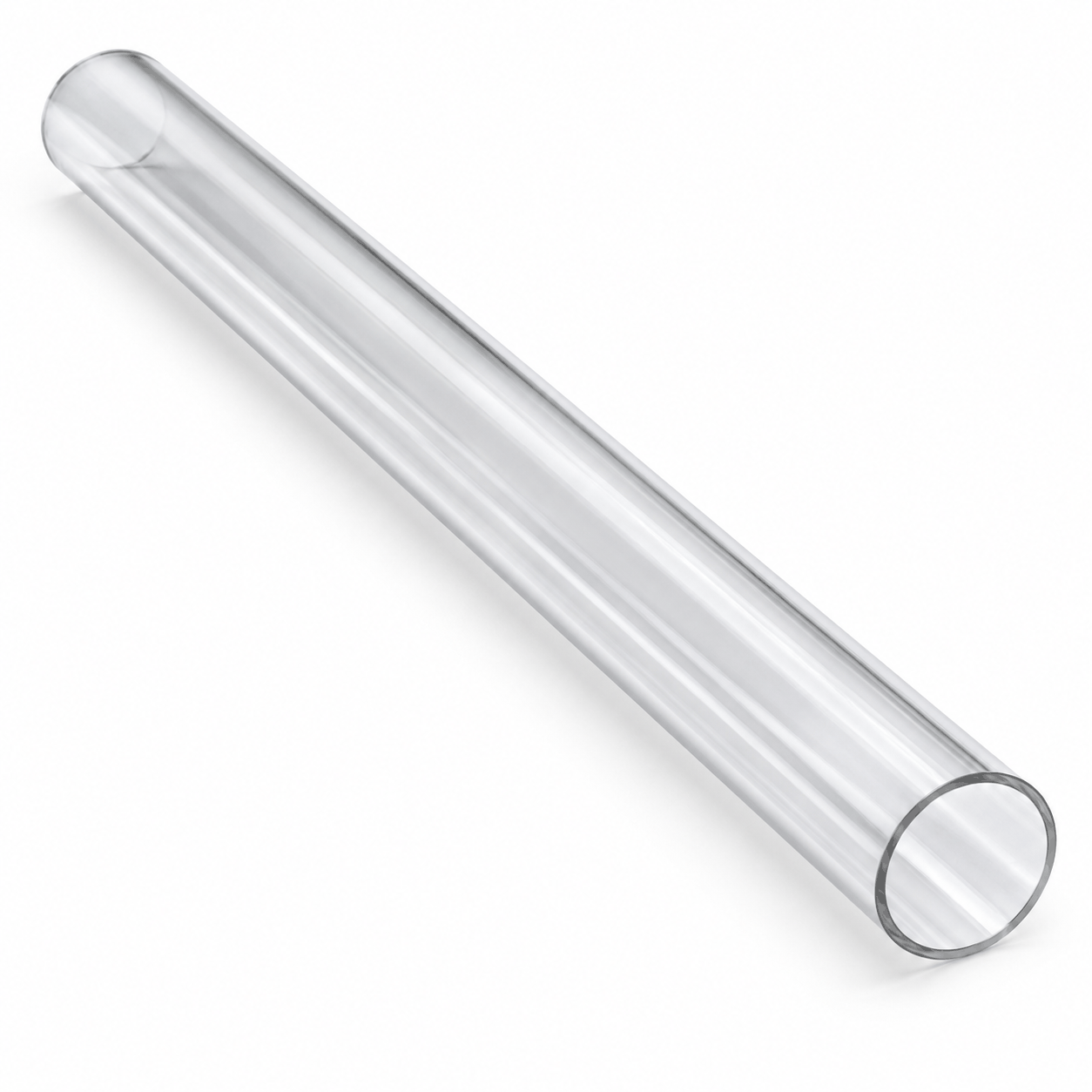

G-QS-001 Replacement Viqua QS-001 Quartz Sleeve for VH200, S1Q-PA, SSM-14

G-QS-001 Replacement Viqua QS-001 Quartz Sleeve for VH200, S1Q-PA & SSM-14 UV Systems

Maintain the performance and efficiency of your UV water steriliser with the G-QS-001 Replacement Quartz Sleeve, a high-quality compatible replacement for the Viqua QS-001. Manufactured from premium fire-polished quartz, this sleeve provides exceptional UV transmission, allowing the ultraviolet lamp to deliver maximum disinfection performance while protecting it from direct contact with water.

Designed for use with Viqua VH200, S1Q-PA and SSM-14 UV systems, this replacement sleeve is supplied complete with two replacement O-rings to ensure a reliable, watertight seal during installation.

Over time, mineral deposits such as limescale, iron and manganese can build up on the quartz sleeve, reducing UV light transmission and lowering the effectiveness of your UV system. Regular cleaning and periodic replacement help maintain optimum disinfection performance and extend the life of your UV equipment.

Features & Benefits

• Compatible replacement for Viqua QS-001 Quartz Sleeve
• Fits VH200, S1Q-PA and SSM-14 UV systems
• Manufactured from high-quality fire-polished quartz
• Excellent UV transmission for maximum sterilisation efficiency
• Supplied complete with 2 replacement O-rings
• Precision manufactured for a secure fit
• Protects the UV lamp while maintaining maximum UV output
• Easy to install during routine UV system servicing

Technical Specifications

• Product Code: G-QS-001
• Replaces: Viqua QS-001
• Length: 330 mm
• Outside Diameter: 23 mm
• End Type: Open Both Ends
• Material: Fire-polished quartz
• Supplied with: 2 × O-rings

Maintenance Recommendations

For optimum UV system performance:

• Clean the quartz sleeve every 6–12 months, depending on water quality.
• Remove mineral deposits using Calcium, Lime & Rust (CLR) remover or white vinegar.
• Replace the quartz sleeve every 2 years, even if it appears undamaged, to maintain maximum UV transmission and reliable disinfection.
• Always inspect the O-rings during servicing and replace if worn or damaged.

Compatible UV Lamp

This quartz sleeve is designed for use with the S287RL UV lamp, ensuring correct lamp positioning and maximum UV output.

Compatible UV Systems

• Viqua VH200
• Viqua S1Q-PA
• Viqua SSM-14

The G-QS-001 is a high-quality compatible replacement quartz sleeve that offers an economical alternative to the original part while maintaining excellent optical clarity, durability and UV performance, making it ideal for routine servicing of Viqua ultraviolet water treatment systems.
