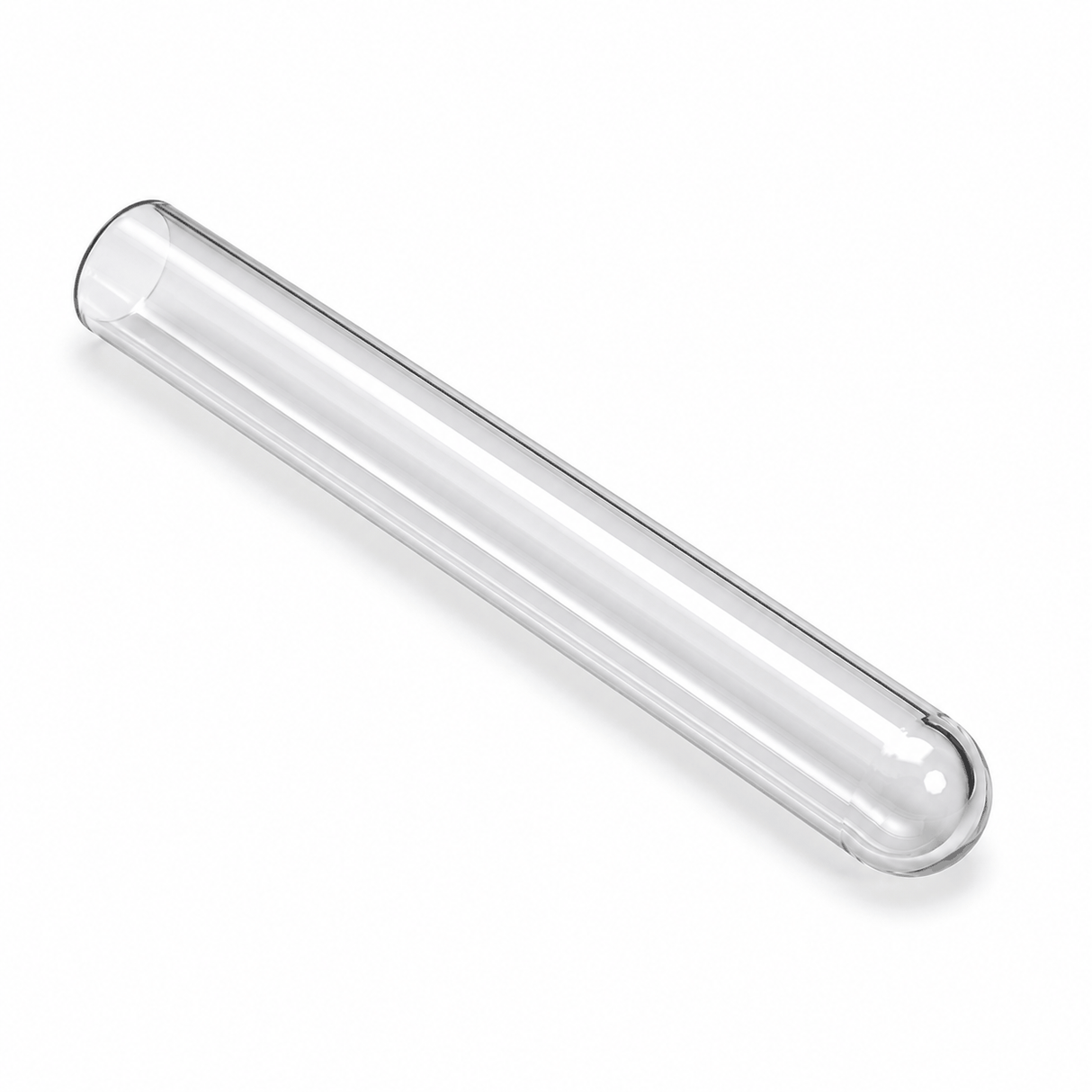

G-QS-150 Replacement Sterilight QS-150 Quartz Sleeve for SP150-HO & SPV-2.5

Maintain the efficiency and reliability of your UV water treatment system with the G-QS-150 Replacement Quartz Sleeve, a premium compatible replacement for the Sterilight QS-150. Manufactured from high-quality fire-polished fused quartz, this sleeve provides exceptional UV light transmission while protecting the UV lamp from direct contact with water.

Designed for Sterilight SP150-HO and SPV-2.5 UV systems, this compatible quartz sleeve features a closed (domed) end and is supplied complete with two replacement O-rings for a secure, leak-free installation.

Over time, mineral deposits such as limescale, iron and manganese can build up on the quartz sleeve, reducing UV light transmission and lowering the effectiveness of your UV disinfection system. Regular cleaning and scheduled replacement help ensure your UV system continues to provide maximum protection against bacteria, viruses and other microorganisms.

Features & Benefits

• Compatible replacement for Sterilight QS-150 Quartz Sleeve
• Fits Sterilight SP150-HO and SPV-2.5 UV systems
• Manufactured from high-quality fire-polished fused quartz
• Closed (domed) end design for the correct fit
• Excellent UV transmission for maximum disinfection performance
• Supplied complete with 2 replacement O-rings
• Precision manufactured for a reliable seal
• Easy to install during routine UV maintenance

Technical Specifications

• Product Code: G-QS-150
• Replaces: Sterilight QS-150
• Length: 282 mm
• Outside Diameter: 23 mm
• Inside Diameter: 20 mm
• End Type: Closed (Domed) One End
• Material: Fire-polished fused quartz
• Supplied with: 2 × O-rings

The QS-150 quartz sleeve measures 282 mm long with a 23 mm outside diameter and is designed specifically for SP150-HO and SPV-2.5 UV systems.

Maintenance Recommendations

To keep your UV system operating at peak performance:

• Clean the quartz sleeve every 6–12 months, depending on water quality.
• Remove mineral deposits using Calcium, Lime & Rust (CLR) remover or white vinegar.
• Replace the quartz sleeve every 2 years to maintain optimum UV transmission.
• Always inspect and replace O-rings if they show signs of wear or damage.

Compatible UV Lamp

This quartz sleeve is designed for use with the Sterilight S150RL-HO UV lamp.

Compatible UV Systems

• Sterilight SP150-HO
• Sterilight SPV-2.5

The G-QS-150 is a high-quality compatible replacement quartz sleeve offering outstanding optical clarity, durability and UV performance. It provides a cost-effective alternative to the original Sterilight QS-150 while maintaining the high standards required for effective ultraviolet water disinfection.
