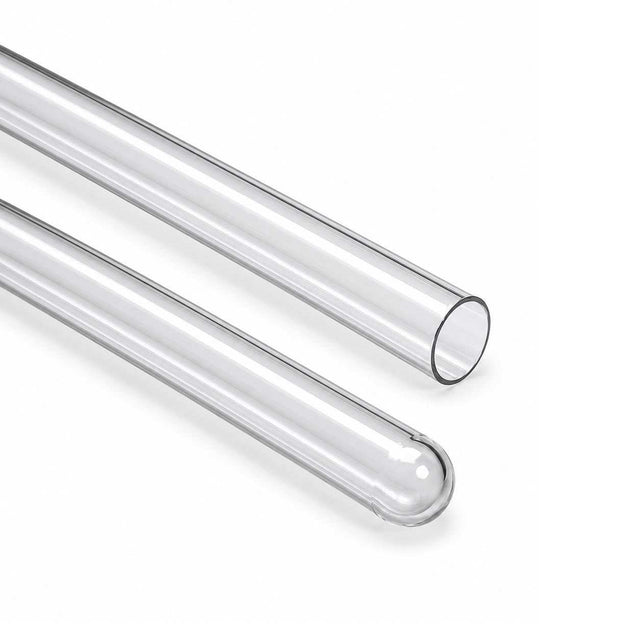

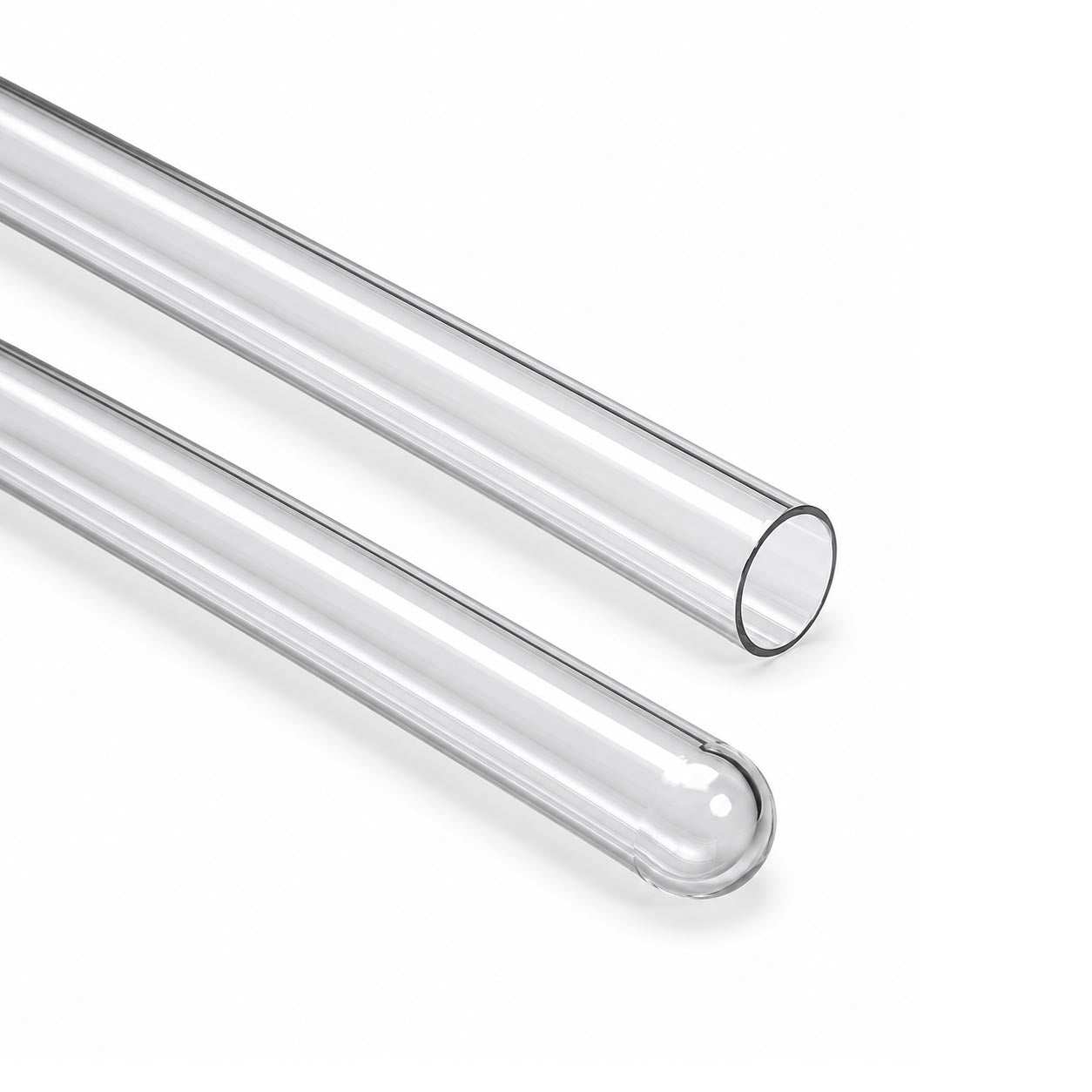

G-QS-410 Replacement Sterilight QS-410 Quartz Sleeve for SP410-HO

Maintain the performance and reliability of your UV water treatment system with the G-QS-410 Replacement Quartz Sleeve, a premium compatible replacement for the Sterilight / Viqua QS-410. Manufactured from high-quality fire-polished fused quartz, this sleeve delivers exceptional UV light transmission while protecting the UV lamp from direct contact with water.

The G-QS-410 features a closed (domed) one-end design and is supplied complete with two replacement EPDM O-rings for a secure, leak-free installation. It is compatible with a wide range of Sterilight, Viqua, Evoqua and A.O. Smith ultraviolet disinfection systems.

Over time, limescale, iron, manganese and other mineral deposits can accumulate on the quartz sleeve, reducing UV transmission and lowering the effectiveness of your UV system. Routine cleaning and scheduled replacement help maintain optimum UV output and ensure reliable protection against bacteria, viruses and other harmful microorganisms.

Features & Benefits

• Compatible replacement for Sterilight / Viqua QS-410
• Premium fire-polished fused quartz
• Closed (domed) one-end design
• Excellent UV light transmission for maximum UV performance
• Protects the UV lamp from direct water contact
• Supplied complete with 2 EPDM O-rings
• Precision manufactured for a reliable, leak-free seal
• Easy to install during routine maintenance
• Cost-effective alternative to the OEM quartz sleeve

Technical Specifications

• Product Code: G-QS-410
• Replaces: Sterilight / Viqua QS-410
• Length: 542 mm
• Outside Diameter: 23 mm (22.5 mm nominal)
• Inside Diameter: 20 mm
• End Type: Closed (Domed) One End
• Material: Fire-polished fused quartz
• Supplied with: 2 × EPDM O-rings

Maintenance Recommendations

For optimum UV system performance:

• Clean the quartz sleeve every 6–12 months, depending on water quality.
• Remove mineral deposits using Calcium, Lime & Rust (CLR) remover or white vinegar.
• Replace the quartz sleeve every 2 years to maintain maximum UV light transmission.
• Inspect the supplied O-rings during servicing and replace them if they become worn or damaged.

Compatible UV Lamp

Designed for use with the Sterilight / Viqua S410RL-HO UV lamp. Some compatible systems may also use the S410RL-HW lamp variant.

Compatible UV Systems

A.O. Smith

• 1103031
• AO-UV-HF-QUARTZ
• AO-UV-HIFLOW-QS
• AO-WH-UV

Evoqua Water Technologies

• W2T376804

Sterilight / R-Can

• QS-410
• SC-410
• SP410-HO
• SPV-410
• SPV-8

Viqua

• QS-410
• VH410

This compatibility is based on published manufacturer cross-reference information for the QS-410 quartz sleeve.

The G-QS-410 is a premium compatible replacement quartz sleeve offering excellent optical clarity, durability and long service life. Manufactured to high standards, it provides a cost-effective alternative to the original Sterilight / Viqua QS-410 while maintaining the UV transmission required for effective ultraviolet water disinfection.
