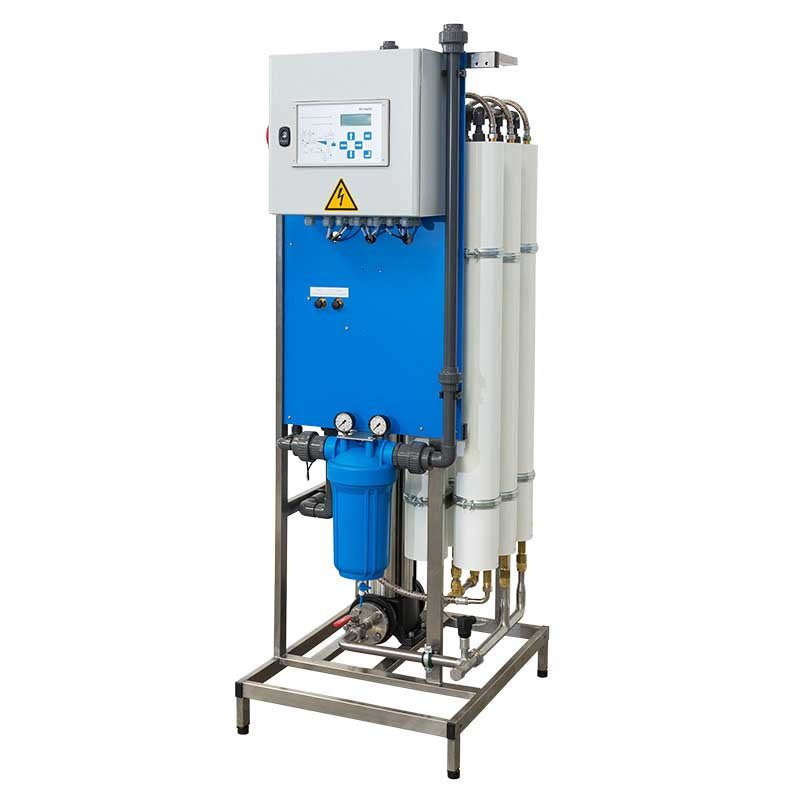

Herco UO-D 900 FU 900 lph Reverse Osmosis System 387 162

Product Description

For desalination of softened drinking water according to drinking water regulations (free chlorine not detectable).

Up to 30% energy savings due to high pressure pump with frequency converter (FU) with control of permeate flow rate at constant value (PKR). Particularly quiet operation.

Membranes: 4040 x 3

FEATURES

• Skid mounted, complete unit
• Particularly space-saving (650 x 810 x 1820 mm)
• RO Digital controller
• Recovery from 75% to 80%
• Salt rejection percentage: 97%
• Working pressure: 14 bar
• Voltage: 3 phase 400V / 50 Hz
• Digital flow meters
• Energy savings of up to 30%
• Automatic regulation PKR for constant permeate rates even at fluctuating operating conditions included
• Particularly quiet operation


Membranes: 4040 x 3

FEATURES

• Skid mounted, complete unit
• Particularly space-saving (650 x 810 x 1820 mm)
• RO Digital controller
• Recovery from 75% to 80%
• Salt rejection percentage: 97%
• Working pressure: 14 bar
• Voltage: 3 phase 400V / 50 Hz
• Digital flow meters

ARA - CONNECTION KIT FOR MANUAL CLEANING UNIT

Ball valves for the connection of a manual cleaning unit e.g. for acid or alkali cleaning of the RO membrane.
Advantages:
• Easier to make the cleaning as the piping’s do not need to be disconnected first.
• Economy of time for making the cleaning
• Avoiding mistakes

PKR - CONSTANT PERMEATE FLOW CONTROL

Regulation of the permeate capacity to a defined value, using a high-pressure pump with frequency converter.

The units are designed for a maximum TDS of 1,000 mg/l, a water temperature of 15°C, a max. colloidal index of 3 and free permeate outlet. Under these conditions, the unit still reaches design permeate flow after 3 years of operation. The permeate recovery depends on the raw water quality and the type of pre-treatment.
