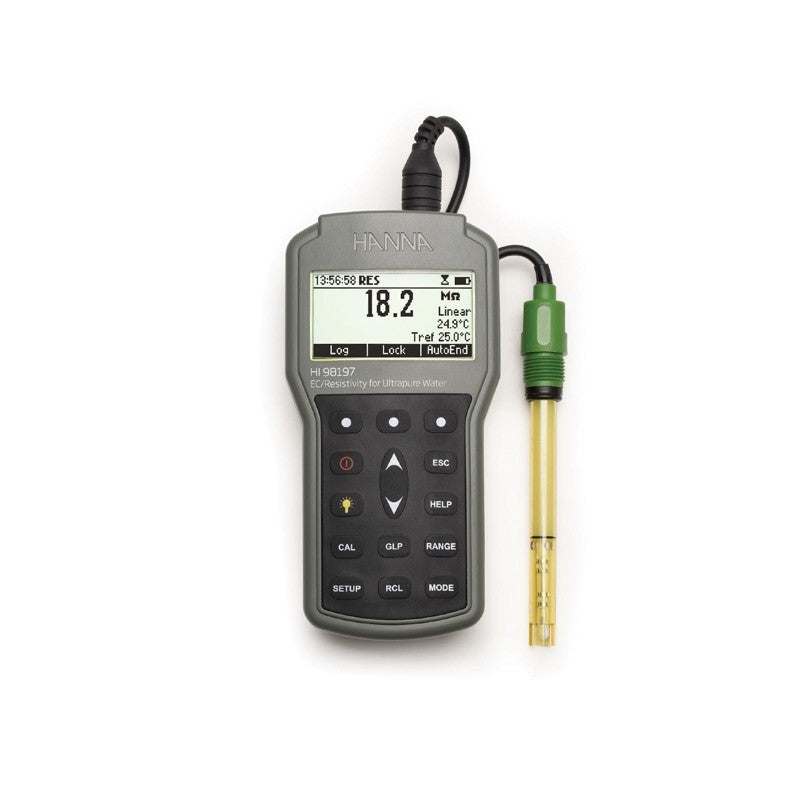

HI-98197 Professional Waterproof Meter for Ultrapure Water
HI-98197 Professional Waterproof Meter for Ultrapure Water
HI-98197 Professional Waterproof Meter for Ultrapure Water
The HI-98197 Professional Waterproof Meter for Ultrapure Water, supplied by GAPS Water Treatment, is engineered to meet the highest standards of precision and durability for ultrapure water analysis. With the capability to perform all three stages of USP <645> conductivity testing for water for injection, this meter is an essential tool for water professionals working in power generation, pharmaceutical, semiconductor, and other high-purity industries.
Designed for High Purity Water Applications
The HI-98197 is specifically optimized for challenging ultrapure water environments where accuracy is paramount. Its high-resolution measurements detect even the slightest changes in conductivity and resistivity, offering fast, stable readings critical for monitoring systems like mixed bed resins and high-efficiency purification equipment.

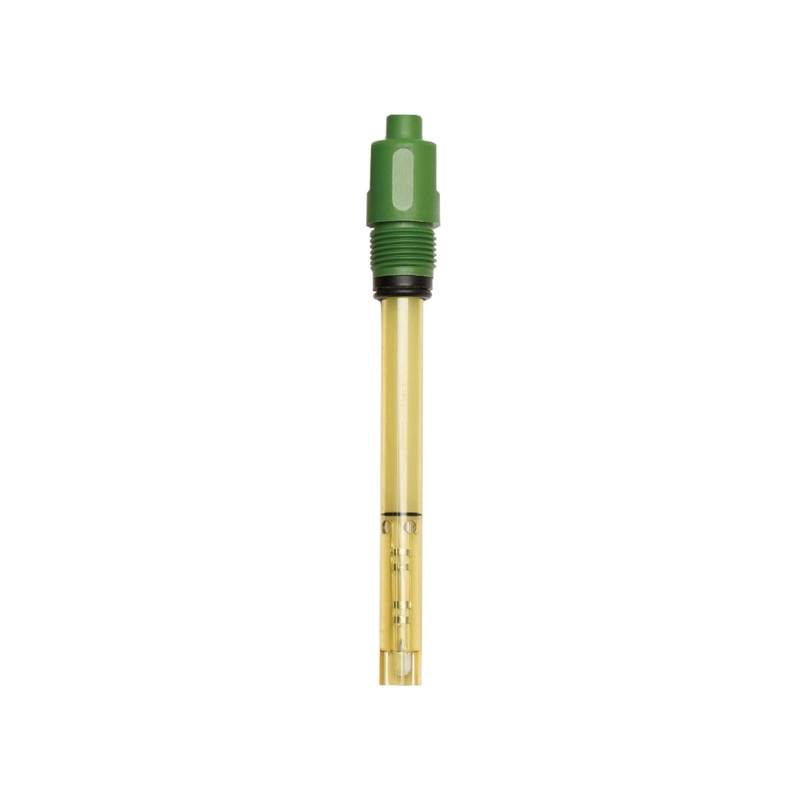

A key feature is the HI-763123 four-ring platinum conductivity probe with a threaded connection, which fits securely into the HI-605453 stainless steel flow cell. This setup ensures continuous, bubble-free sample flow and accurate results by preventing contamination from carbon dioxide and air exposure.
Comprehensive Measurement and Customization
- Exceptional Measurement Ranges
-
- Conductivity: 0.000 to 9.999 μS/cm, scaling up to 1000.0 mS/cm (autoranging and actual conductivity)
- Resistivity: 1.0 Ω·cm to 100.0 MΩ·cm with 0.1 Ω·cm (low range) and 0.1 MΩ·cm (high range) resolutions
- TDS: 0.00 to 400.0 ppt (g/L), with precise resolution options for both ppm and g/L
- Salinity: % NaCl (0.0 to 400.0%), practical salinity (PSU: 0.00 to 42.00), and natural seawater scale (0.00 to 80.00 ppt)
- Temperature: -20.0 to 120.0°C with 0.1°C resolution for precise compensation
- Customizable Calibration and Compensation
-
- Up to five-point conductivity calibration using seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm)
- One-point salinity calibration (% range) with HI-7037 standard
- Configurable temperature compensation coefficient: 0.00 to 10.00%/°C
- User-selectable reference temperatures: 15°C, 20°C, and 25°C, as well as a selectable TDS factor (0.40 to 1.00)
- Enhanced calibration features including out-of-range alerts and calibration timeout warnings

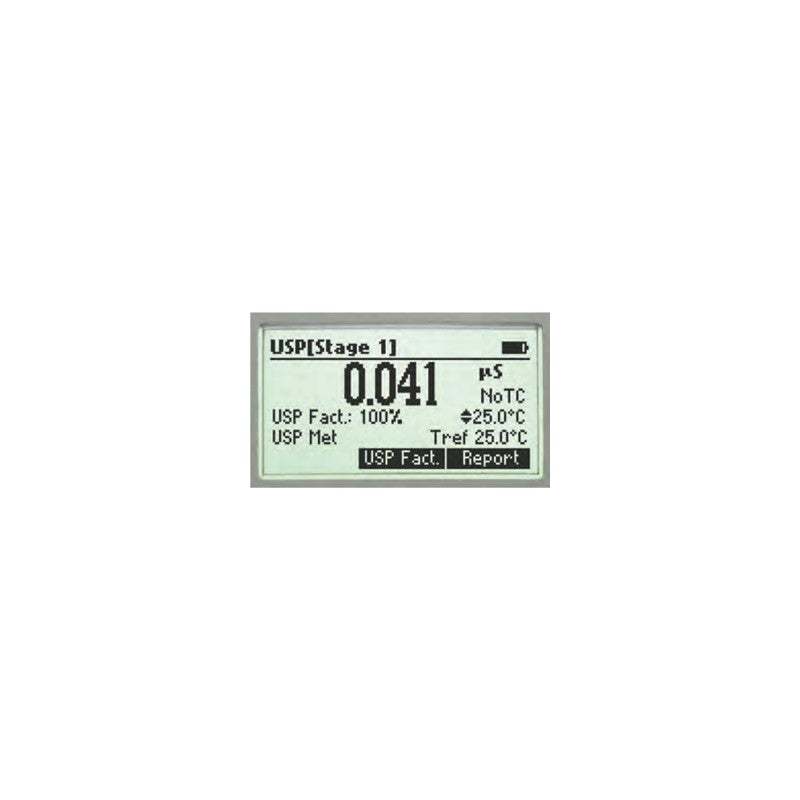

- USP <645> Water Quality Testing
-
- Performs all three USP <645> stages with on-screen guidance and generates documentation for regulatory compliance
- On-screen progress bar helps guide users through stability and conformity requirements
Rugged, Intuitive & Feature-Rich Design
- IP67 Waterproof Casing: Fully protected for routine use in demanding environments, even withstanding immersion up to 1 meter for 30 minutes.

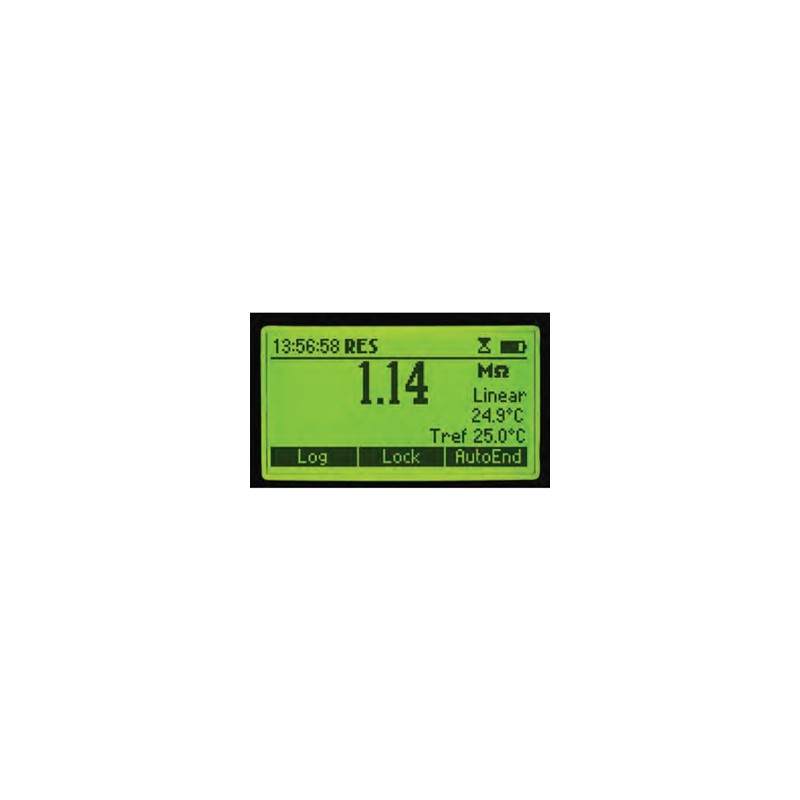

- Backlit Graphic LCD: Multi-function display with virtual/on-screen keys, dedicated HELP, GLP, and calibration access.
- AutoHold & Enhanced Calibration Reminders: AutoHold captures the first stable reading; calibration timeout and out-of-range warning ensure consistently accurate operation.
- Data Logging & Connectivity: Store up to 400 log-on-demand samples or 1000 lot-logging records. Easily transfer data to PC using the supplied micro USB cable and HI-92000 PC software.
- GLP Compliance: Automatic recording and retrieval of calibration history, including date, time, and standards used.
- Long Battery Life: Powered by four 1.5V AA batteries for approximately 100 hours of continuous use without backlight, or up to 25 hours with backlight.
- Intuitive Keypad: Dedicated keys for core functions, plus two virtual soft keys for easy parameter access and operation.

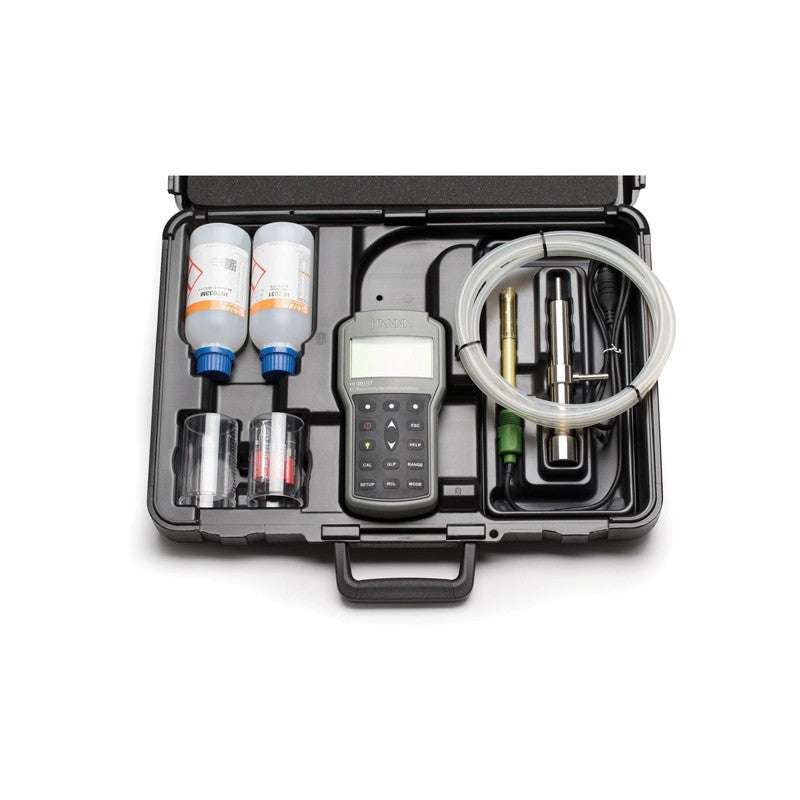

Supplied Complete For Professional Use
Your HI-98197 is ready for immediate deployment and includes the following:
- HI-763123 four-ring platinum conductivity probe (with threaded connection and 1 m cable)
- HI-605453 stainless steel flow cell for continuous ultrapure water measurement
- HI-7033M (84 μS/cm) and HI-7031M (1413 μS/cm) calibration solutions (230 mL)
- 100 mL plastic beakers (2)
- HI-92000 PC software & HI-920015 micro USB cable
- Quick start guide, detailed instruction manual, and rugged HI-720197 carrying case
- Four 1.5V AA batteries
- Calibration certificate/probe warranty (2 years meter, 6 months probe)
Key Specifications
|
Parameter |
Details |
|---|---|
|
EC Range |
0.000 to 9.999 μS/cm; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; up to 1000.0 mS/cm |
|
EC Resolution |
0.001, 0.01, 0.1 μS/cm; 0.001, 0.01, 0.1 mS/cm (autoranging) |
|
EC Accuracy |
±1% of reading (±0.01 μS/cm or 1 digit, whichever is greater) |
|
EC Calibration |
Automatic, up to five points with seven memorized standards |
|
TDS Range |
0.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 g/L; up to 400.0 g/L (ppt) |
|
TDS Resolution |
0.01, 0.1 ppm; 0.001, 0.01, 0.1 g/L (ppt) |
|
TDS Accuracy |
±1% of reading (±0.05 mg/L or 1 digit) |
|
TDS Calibration |
Based on conductivity calibration |
|
Resistivity Range |
1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 kΩ•cm; up to 100.0 MΩ•cm |
|
Resistivity Resolution |
0.1, 1 Ω•cm; 0.01, 0.1, 1 kΩ•cm; 0.01, 0.1 MΩ•cm |
|
Resistivity Accuracy |
±1% of reading (±10 Ω or 1 digit) |
|
Resistivity Calibration |
Based on conductivity calibration |
|
Salinity Range/Calibration |
% NaCl: 0.0 to 400.0% (max one-point calibration with HI-7037 standard); PSU: 0.00–42.00; seawater scale: 0.00–80.00 ppt |
|
Temperature Range |
-20.0 to 120.0°C (-4.0 to 248.0°F) |
|
Temperature Resolution |
0.1°C (0.1°F) |
|
Temperature Accuracy |
±0.2°C; ±0.4°F (excluding probe error) |
|
Temperature Calibration |
One or two points |
|
Temperature Compensation |
None, linear (-20.0 to 120.0°C), or non-linear (ISO/DIN 7888 standard, 0 to 36.0°C) |
|
Reference Temperature |
15°C, 20°C, 25°C |
|
Temperature Coefficient |
0.00 to 10.00 %/°C |
|
TDS Factor |
0.40 to 1.00 |
|
Electrode/Probe |
HI-763123 platinum four-ring probe with internal temperature sensor and 1 m cable |
|
Logging |
Log-on-demand (400 samples); lot-logging (up to 1000 samples at selectable intervals) |
|
Memorized Profiles |
Up to 10 user profiles |
|
Measurement Modes |
Autorange, autoend, lock, fixed range |
|
PC Connectivity |
Opto-isolated USB with HI-92000 software and supplied micro USB cable |
|
Battery Type/Life |
Four 1.5V AA batteries (~100 hours without backlight, ~25 hours with backlight) |
|
Auto-off |
User-selectable: 5, 10, 30, 60 min or disabled |
|
Environment |
0 to 50°C (32 to 122°F); RH 100% (IP67) |
|
Dimensions/Weight |
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”); 400 g (14.2 oz.) |
|
Warranty |
2 years (meter), 6 months (probe) |
The Professional’s Choice for Ultrapure Water Accuracy
Choose the HI-98197 Professional Waterproof Meter for Ultrapure Water, supplied by GAPS Water Treatment, for robust performance, compliance with leading standards, and total confidence in your ultrapure water quality testing.
