HI-98199 pH, EC, DO digital portable meter (pH electrode included only)
Technical Resources
Technical Resources
HI-98199 pH, EC, DO digital portable meter (pH electrode included o...

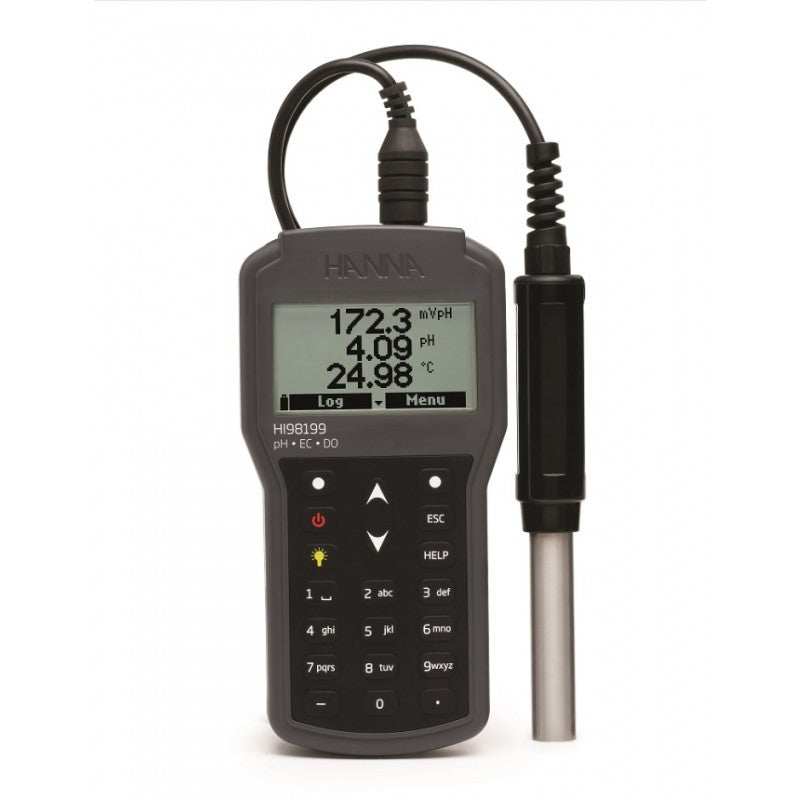

HI-98199 pH, EC, DO Digital Portable Meter
Achieve precise and reliable water quality analysis with the HI-98199 Digital Portable Meter, a versatile instrument supplied by GAPS Water Treatment. Engineered for professionals who demand accuracy in the field, this meter is your all-in-one solution for comprehensive water testing. This package includes the HI-829113 digital pH probe, making it ready for immediate pH measurement and temperature readings right out of the box. Hanna’s pH probe is included with the HI-98199 and the EC and DO probes can be ordered separately.
The HI-98199 simplifies complex testing with its intuitive interface and backlit graphic LCD, which displays multiple parameters at once. Its rugged, waterproof IP67-rated casing ensures performance even in harsh environments, while the probes feature an IP68 rating for continuous immersion. Benefit from features like automatic temperature compensation for accurate readings and extensive data logging for up to 45,000 samples. The quick-connect digital probe system with auto-sensor recognition makes setup fast and secure.
Comprehensive Measurement Capabilities
Expand your testing range with optional probes. The HI-98199 is a truly versatile meter:
- pH Measurement (Probe Included): Perform up to a three-point calibration using five standard buffers. The included gel-filled, maintenance-free probe provides stable and accurate pH and temperature data.
- Conductivity (with optional HI-763093 probe): Measure conductivity, TDS, resistivity, and salinity. Features include auto-ranging, single-point calibration, and configurable temperature coefficients.
- Dissolved Oxygen (with optional HI-764103 probe): Get DO readings in % saturation or mg/L (ppm). The meter features a built-in barometer for automatic atmospheric pressure compensation and manual salinity compensation for accurate results in saline waters.
Advanced Features for Professionals
Designed for efficiency and compliance, the HI-98199 streamlines your workflow from field to lab.
- Extensive Data Logging: Store up to 45,000 continuous or log-on-demand samples. Logging intervals are adjustable from one second to three hours, providing complete flexibility for your monitoring needs.
- Seamless PC Connectivity: Easily transfer logged data to a Windows PC using the included micro USB cable and Hanna software for analysis and record-keeping.
- Full GLP Compliance: A dedicated key allows you to view Good Laboratory Practice (GLP) data at any time. This includes calibration date, time, buffers used, offset, and slope, ensuring your data is traceable and defensible.
- User-Friendly Interface: A contextual "HELP" key provides clear, on-screen instructions for setup and calibration. The meter runs for up to 360 hours on four AA batteries, keeping you productive in the field.
|
Feature Highlights |
Specification |
|---|---|
|
Waterproof Rating |
Meter: IP67 / Probe: IP68 |
|
Data Logging Capacity |
Up to 45,000 samples |
|
pH Calibration |
Up to 3 points, 5 standard buffers + 1 custom |
|
Connectivity |
Micro USB to PC |
|
Battery Life |
Up to 360 hours (4 x 1.5V AA) |
|
Key Functions |
Auto-sensor recognition, GLP data, On-screen Help |
Comprehensive Measurement Capabilities
Expand your testing range with optional probes. The HI-98199 is a truly versatile meter, offering detailed multi-parameter measurements for demanding field and lab applications:
|
Parameter |
Range/Details |
Resolution |
Accuracy |
Calibration |
|---|---|---|---|---|
|
pH / mV (with HI-829113 pH Probe, included) |
0.00 to 14.00 pH / ±600.0 mV |
0.01 pH / 0.1 mV |
±0.02 pH / ±0.5 mV |
Automatic, one/two/three points; five standards (pH 4.01, 6.86, 7.01, 9.18, 10.01) or custom |
|
EC (with HI-763093 EC Probe, sold separately) |
0 to 200 mS/cm |
Auto/manual: 1 μS/cm to 0.1 mS/cm |
±1.5% of reading or ±2 μS/cm (whichever greater) |
Automatic single point, six standards (84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom |
|
TDS (with HI-763093 EC Probe, sold separately) |
0.0 to 200.0 ppt (g/L), dependent on TDS factor |
1 ppm to 0.1 ppt |
±1% of reading or ±1 ppm (whichever greater) |
Based on conductivity calibration |
|
Resistivity (with HI-763093 EC Probe, sold separately) |
0 to 999999 Ω•cm, 0 to 1000.0 kΩ•cm, 0 to 1.0000 MΩ•cm |
1 Ω•cm to 0.0001 MΩ•cm |
— |
Based on conductivity calibration |
|
Salinity (with HI-763093 EC Probe, sold separately) |
0.00 to 70.00 PSU |
0.01 PSU |
±2% of reading or ±0.01 PSU (whichever greater) |
Based on conductivity calibration |
|
Seawater σ (with HI-763093 EC Probe, sold separately) |
0.0 to 50.0 σt, σ₀, σ₁₅ |
0.1 σt, σ₀, σ₁₅ |
±1 σt, σ₀, σ₁₅ |
Based on conductivity calibration |
|
Dissolved Oxygen (with HI-764103 DO Probe, sold separately) |
0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L) |
0.1%; 0.01 ppm (mg/L) |
0.0–300.0%: ±1.5% of reading or ±1.0%; |
Automatic one/two points: 0, 100%, or custom |
|
Atmospheric Pressure (with HI-764103 DO Probe, sold separately) |
450–850 mm Hg; 17.72–33.46 in Hg; 600.0–1133.2 mbar; 8.702–16.436 psi; |
0.1 mm Hg; 0.01 in Hg, etc. |
±3 mm Hg within ±15°C of calibration temp |
Automatic at one custom point |
|
Temperature |
-5.00 to 55.00°C; 23.00 to 131.00°F; 268.15 to 328.15K |
0.01°C/F/K |
±0.15°C; ±0.27°F; ±0.15K |
Automatic at one custom point |
Additional Specifications:
|
Specification |
Details |
|---|---|
|
Temp compensation |
Automatic from -5 to 55°C (23 to 131°F) |
|
Logging Memory |
45,000 records (continuous or log-on-demand) |
|
Logging Interval |
One second to three hours |
|
PC Connectivity |
Via USB, with Hanna PC software |
|
Environment |
0 to 50°C (32 to 122°F); RH 100% IP67 |
|
Battery Type / Life |
Four 1.5V AA batteries / ~400 h continuous (50 h with backlight) |
|
Dimensions / Weight |
185.0 x 93.0 x 35.2 mm (7.3 x 3.6 x 1.4”) / 400 g (14.2 oz.) |
|
Ordering Information |
HI-98199 includes HI-829113 pH digital probe (4m cable), calibration solutions, USB cable, software, batteries, QC, manual, rugged case |
|
Probes |
Supplied: HI-829113 pH digital probe (4m); Buy separately: HI-763093 EC & HI-764103 DO probes (4m each) |
|
Accessories |
HI-710034 orange protective silicone rubber boot |
This expanded table provides a clear and complete overview of the HI-98199's measurement capabilities and technical specifications.
