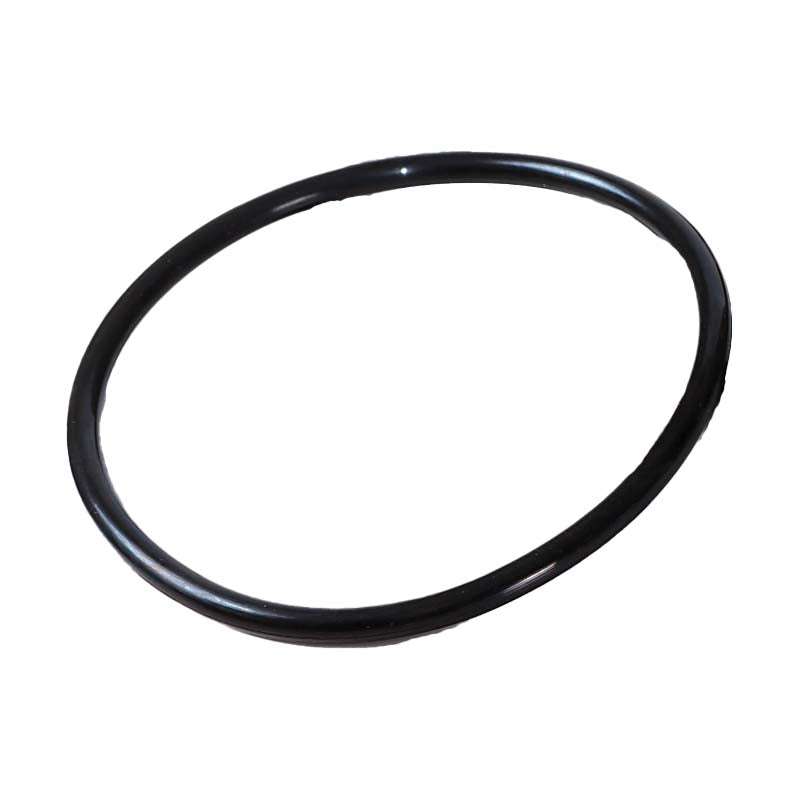

Hydranautics Brine Seal for 8" Membrane (84473.0696): Reliable Sealing Solutions

Hydranautics Brine Seals are essential components for maintaining the integrity and performance of your water treatment systems. Designed for use with all standard eight-inch and four-inch elements, these brine seals ensure a secure fit and optimal functionality.

Key Features:

Standard Compatibility: Suitable for all standard 8-inch and 4-inch elements.
Pre-installed Convenience: Each element is shipped with a single brine seal installed on the seal carrier/anti-telescoping device (ATD) at the feed end.
Inspection Ready: Brine seals should be inspected before installation to ensure they are properly seated and fully nested into the ATD groove with the u-cup facing the feed end.

Replacement Guidelines:

When to Replace: Replace brine seals if you notice nicks, dents, cracks, improper fitting, or debris that cannot be removed.
How to Replace:
1. Remove: Use an o-ring extraction tool to carefully remove the existing brine seal without damaging the ATD surface.
2. Install: Place the new brine seal with the u-cup facing the feed end of the element.

Product Details:

8-inch Brine Seal (U-Cup): HYD P/N: 84473.0696
4-inch Brine Seal (U-Cup): HYD P/N: 84473.0350

Ensure the longevity and efficiency of your water treatment systems with Hydranautics Brine Seals, providing reliable sealing solutions for optimal performance.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the purpose of the Hydranautics 84473.0696 Brine Seal?

The brine seal is a specialized rubber gasket that fits onto the outer perimeter of an 8-inch reverse osmosis (RO), nanofiltration (NF), or ultrafiltration (UF) membrane element. Its job is to eliminate water bypassing. When installed inside a pressure vessel, the seal blocks feed water from rushing down the narrow gap between the outside of the membrane and the inside wall of the housing, forcing $100\%$ of the incoming water to flow properly through the element's internal feed spacer channels.

What is the purpose of the Hydranautics Brine Seal for 8" Membrane?

The Hydranautics Brine Seal for 8" Membrane helps ensure a secure fit and maintains the integrity of your water treatment system by providing reliable sealing solutions.

Is the Hydranautics Brine Seal compatible with my water treatment system?

Yes, this brine seal is suitable for use with all standard 8-inch and 4-inch elements, making it a versatile choice for various systems.

How do I know when to replace the Hydranautics Brine Seal for 8" Membrane?

Replace the brine seal if you notice nicks, dents, cracks, improper fitting, or debris that cannot be removed, to maintain optimal system performance.

What is the proper way to install the Hydranautics Brine Seal for 8" Membrane?

Remove the old seal carefully using an o-ring extraction tool, then install the new brine seal with the u-cup facing the feed end, ensuring it is properly seated in the groove.

Does the Hydranautics Brine Seal come pre-installed on the membrane?

Yes, each membrane is shipped with a single brine seal pre-installed on the seal carrier/anti-telescoping device at the feed end for convenience and easy installation.
