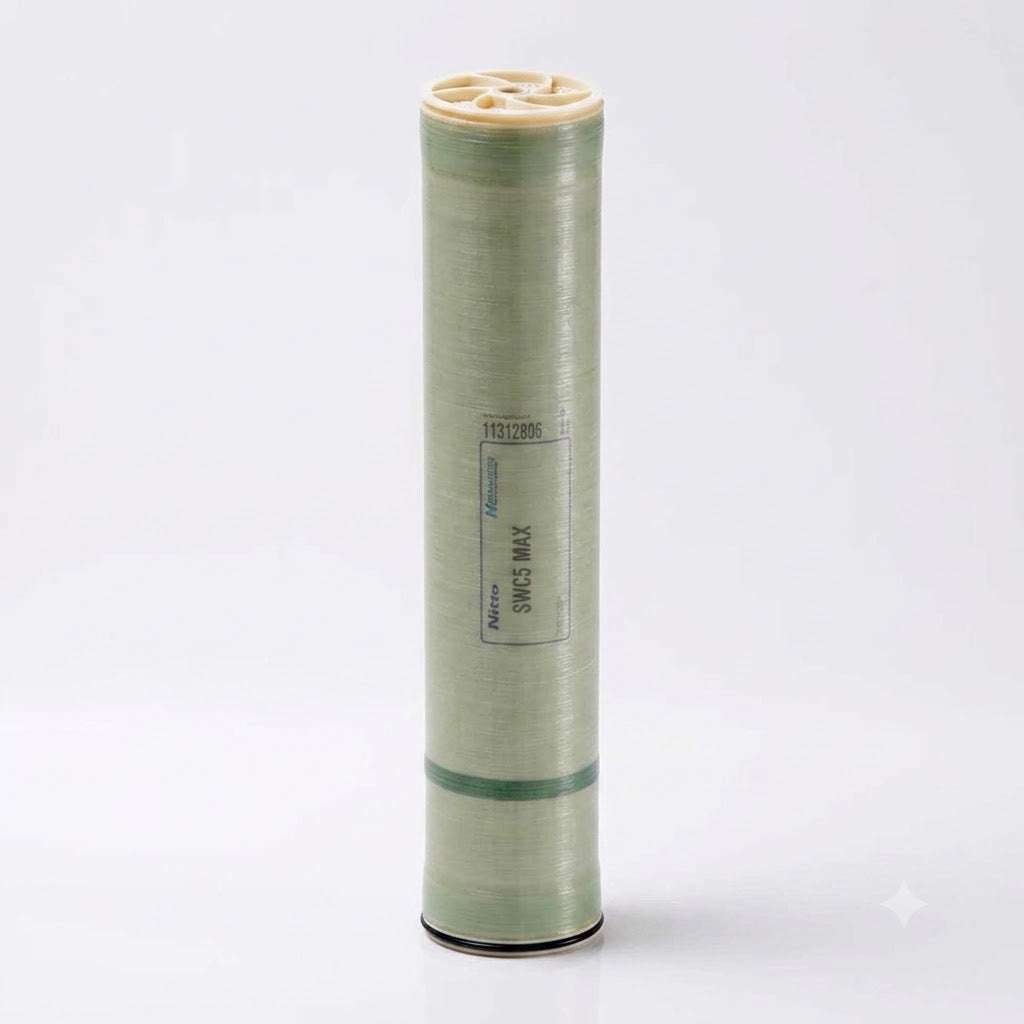

Hydranautics SWC5 MAX Reverse Osmosis Membrane Element 8" x 40"
DISCOUNT AVAILABLE FOR QUANTITY ORDERS - CONTACT US FOR A QUOTE
Technical Resources
Technical Resources
Hydranautics SWC5 MAX Reverse Osmosis Membrane Element 8" x 40...
Hydranautics SWC5 MAX Reverse Osmosis Membrane Element (8" x 40")
No one does seawater desalination better. The Hydranautics SWC5 MAX is a high-performance reverse osmosis membrane tailored for the rigorous demands of seawater desalination and high TDS industrial wastewater treatment. Experience unmatched efficiency, exceptional salt and boron rejection, and reliability even in warm water applications.
Why You’ll Love It
- Maximum Performance with High TDS Removal: Engineered to handle high salinity levels while delivering excellent permeate quality.
- Large Active Surface Area: The MAX model’s 440 ft² surface area boosts productivity and reduces downtime.
- Warm Water Efficiency: Delivers optimal performance even in warmer climates, ensuring consistent desalination outcomes.
- Low Energy Consumption: Optimized for energy efficiency, which helps lower operational costs.
- Environmentally Friendly: Reduces environmental impact while maintaining high desalination efficiency.
Key Features
- Permeate Flow: 9,900 gpd (37.5 m³/day)
- Salt Rejection: 99.8% (99.7% minimum) ensures high water purity.
-
Operating Conditions:
- Pressure up to 1,200 psig (8.27 MPa)
- Maximum temperature of 113°F (45°C)
- Wide pH Tolerance for Cleaning: Handles pH levels of 1–13, covering diverse cleaning needs.
- Durable Construction: Composite polyamide material ensures long-lasting performance.
- Packaging Designed for Protection: Includes a brine seal, interconnectors, and sealed polyethylene bag protection.
Technical Specifications
| Property | Value |
|---|---|
| Active Membrane Area | 440 ft² (40.9 m²) |
| Permeate Flow | 9,900 gpd (37.5 m³/day) |
| Salt Rejection | 99.8% (Minimum 99.7%) |
| Test Pressure | 800 psig (5.5 MPa) |
| Maximum Applied Pressure | 1,200 psig (8.27 MPa) |
| Operating Temperature Range | Up to 113°F (45°C) |
| Maximum Feedwater Turbidity | 1.0 NTU |
| Maximum Feedwater SDI (15 min) | 5.0 |
Real-Life Applications
This reverse osmosis membrane is ideal for use in:
- Mega desalination plants: Optimized for high TDS and boron removal.
- Seawater desalination systems: Supporting hybrid and conventional designs.
- Challenging industrial wastewater treatment: Reliable even in warm water environments.
Reliability and Assurance
Hydranautics guarantees the dependability of the SWC5 MAX with stringent performance standards and innovative design. The MAX variant is crafted for durability and optimized efficiency, ensuring sustainable desalination while minimizing energy costs.
No one does seawater desalination better. Upgrade to the Hydranautics SWC5 MAX and ensure superior quality and performance in your operations today!
