Pallas APT-160 Pressure Storage Tank, 160 Litres Total Volume, 1 1/...

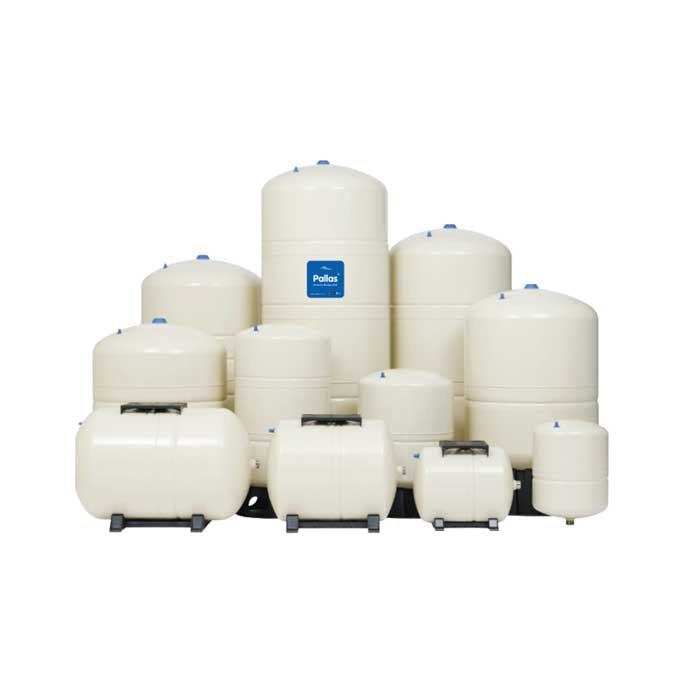

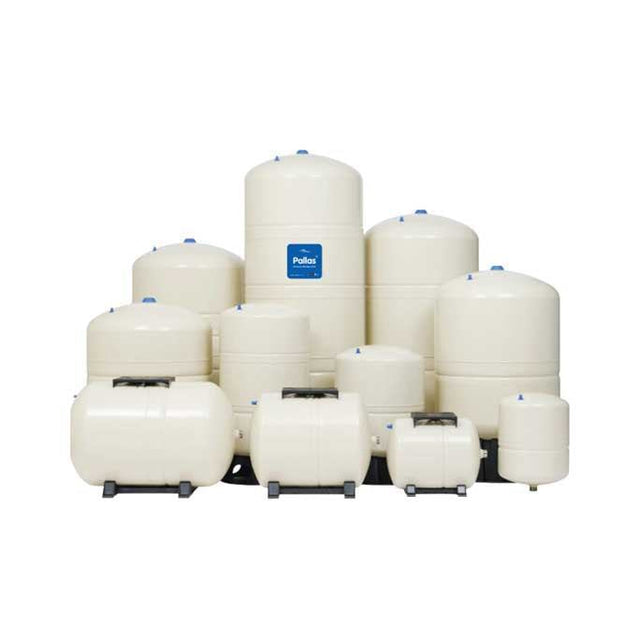

Pallas Pressure Storage Tanks – Reliable and Efficient Water Pressure Solutions
The Pallas Pressure Storage Tank is a vital component of any pressurized water system. Designed for optimal performance, it ensures consistent water pressure while reducing motor usage. This innovation saves energy, requires no maintenance, and is easy to install.
Key Features
- Energy Saving – Minimize motor use and power consumption.
- No Maintenance Required – Hassle-free performance for years.
- Easy Installation – Install quickly without complex adjustments.
- 100% Quality Tested – Guaranteed reliability and efficiency.
- Extended Horizontal & Vertical Range – Flexible installation options.
Premium Characteristics
- Shell Material – Made from cold-rolled carbon steel for superior durability.
- System Connection – Equipped with a 304 stainless steel connector.
- Coating – Protected by a triple-grade paint for corrosion resistance.
- Diaphragm – Crafted from heavy-duty butyl rubber for flexibility and longevity.
- Liner Material – FDA-grade polypropylene ensures clean, safe water storage.
- Factory Pre-charge – Optimized at 2 bar for immediate use.
- Max Working Temperature – Handles up to 93°C, perfect for rigorous conditions.
- Max Working Pressure – Withstands up to 10 bar, ideal for high-pressure systems.
- Warranty – Backed by a 5-year comprehensive warranty.
Certifications
The Pallas Pressure Storage Tank meets the highest industry standards and is certified for safety and quality:
- CE Certified
- NSF Approved
- ACS Certified
- WRAS Approved
Technical Specifications
Stand Models Without Base
| Model Number | Tank Volume (L) | Diameter (cm) | Height (cm) | Weight (Kg) | Connection |
|---|---|---|---|---|---|
| APT-8 | 8 | 20.3 | 30.4 | 1.9 | 1" BSP |
| APT-24 | 24 | 29.0 | 41.5 | 3.9 | 1" BSP |
Stand Models With Base
| Model Number | Tank Volume (L) | Diameter (cm) | Height (cm) | Weight (Kg) | Connection |
|---|---|---|---|---|---|
| APT-60 | 60 | 39.0 | 59.2 | 9.7 | 1" BSP |
| APT-80 | 80 | 39.0 | 77.0 | 13.1 | 1" BSP |
| APT-100 | 100 | 43.0 | 76.5 | 13.3 | 1" BSP |
| APT-120 | 120 | 39.0 | 114.8 | 20.1 | 1" BSP |
| APT-160 | 160 | 55.0 | 93.1 | 24.5 | 1-14" BSP |
| APT-200 | 200 | 55.0 | 106.6 | 27.6 | 1-14" BSP |
| APT-300 | 300 | 55.0 | 146.3 | 41.1 | 1-14" BSP |
| APT-450 | 450 | 65.0 | 141.0 | 56.5 | 1-14" BSP |
Customizable Options
Choose the right tank size and capacity that best suits your system's requirements. With a wide range of volumes and configurations available, the Pallas Pressure Tank is perfect for residential, commercial, or industrial use.
Ensure consistent, reliable water pressure with Pallas Pressure Storage Tanks – your ultimate choice for durability and efficiency!
