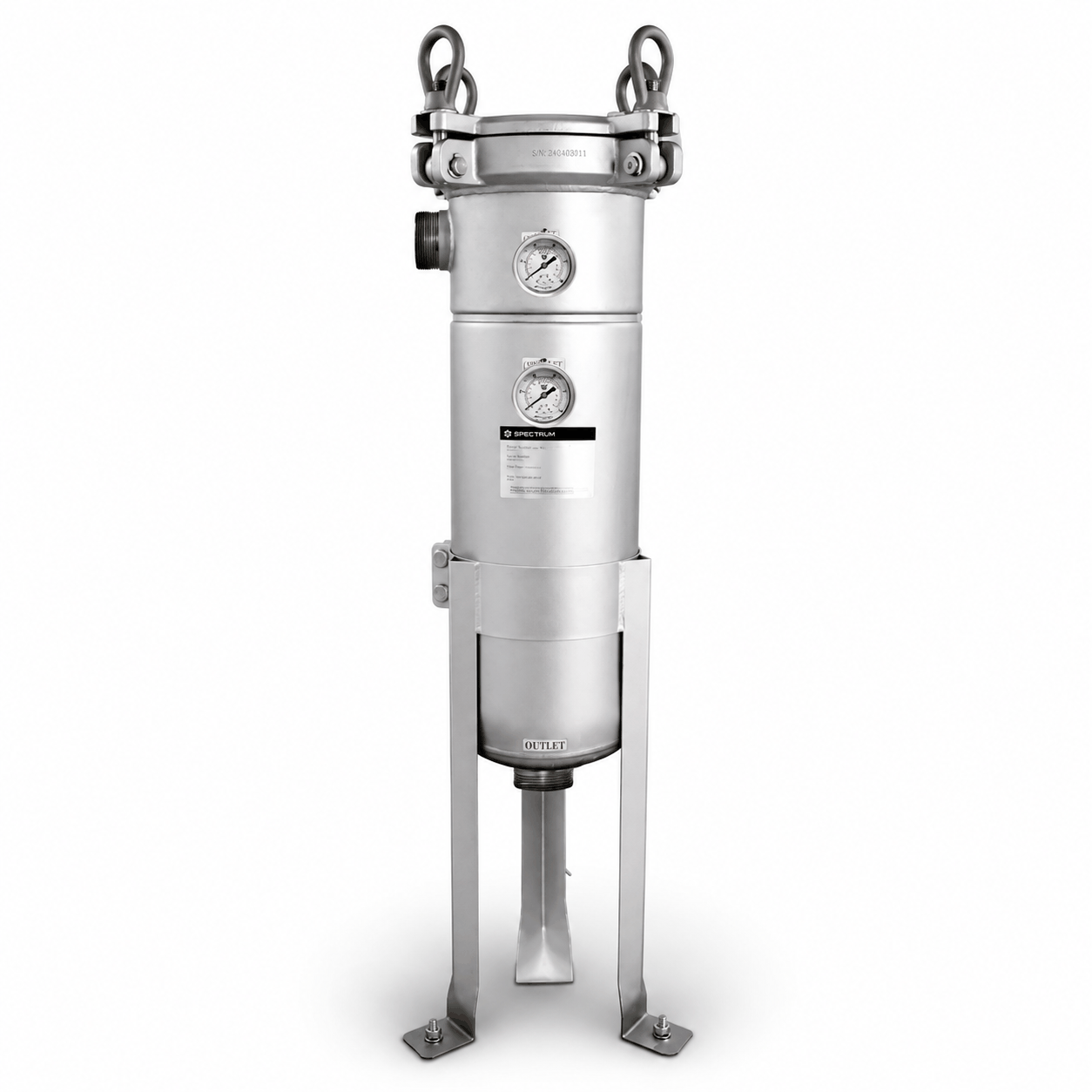

SPECTRUM INOX Bag Housing Stainless Steel Size 3 1.5" BSPM with Gauges – PBH-SGB-1-3-1.5-G

The SPECTRUM INOX PBH-SGB-1-3-1.5-G Bag Housing is a heavy-duty 316L stainless steel Size 3 bag filter housing designed for commercial and industrial liquid filtration applications. Part of the SPECTRUM INOX Premier range, it combines a robust swing-bolt closure, integrated pressure gauges and a compact single-bag design capable of flow rates up to 75 litres per minute.

Designed to accommodate one Size 3 filter bag, the housing features 1.5" BSP male inlet and outlet connections, making it a practical solution for process filtration, water treatment and suspended solids removal where a compact but durable stainless steel housing is required.

Heavy-Duty 316L Stainless Steel Construction

The housing body, lid and internal filter basket are manufactured from 316L stainless steel, providing excellent durability and resistance to corrosion, elevated temperatures, pressure and aggressive chemicals.

The mounting legs and swing bolts are manufactured from 304 stainless steel, while a Buna-N (NBR) O-ring provides reliable sealing.

With a maximum operating pressure of 10 bar and temperature rating of 121°C, the PBH-SGB-1-3-1.5-G is designed for demanding professional filtration installations.

Premier Swing-Bolt Closure

The Size 3 SPECTRUM INOX Premier housing incorporates a heavy-duty swing-bolt closure system.

This secure closure provides reliable sealing while allowing access to the internal filter basket and Size 3 filter bag for inspection, cleaning and replacement.

Unlike the Size 1 and Size 2 SPECTRUM INOX housings, which are available in both Standard V-band and Premier configurations, Size 3 and Size 4 models are supplied with swing-bolt closures.

Integrated Pressure Gauges

The PBH-SGB-1-3-1.5-G is supplied with inlet and outlet pressure gauge ports and pressure gauges as standard.

Monitoring pressure before and after the filter bag allows operators to assess the pressure differential across the filter. As solids accumulate within the bag, increasing differential pressure can provide a useful indication that the filter bag requires replacement.

This makes routine system monitoring and preventative maintenance considerably easier in commercial and industrial applications.

Vent and Drain Ports

Integrated vent and drain ports assist with safe depressurisation and draining of the housing during routine servicing and filter bag replacement.

These features help simplify filter changeout and reduce unnecessary downtime during scheduled maintenance.

Adjustable Mounting Legs

The housing is supplied with adjustable stainless steel mounting legs, providing stability while allowing the installation height to be adapted to suit surrounding pipework and servicing requirements.

Key Features

• Manufacturer: SPECTRUM

• Product range: INOX Premier

• Part number: PBH-SGB-1-3-1.5-G

• Configuration: 1 × Size 3 filter bag

• Body & lid: 316L stainless steel

• Filter basket: 316L stainless steel

• Legs: 304 stainless steel

• Swing bolts: 304 stainless steel

• Closure: Premier swing-bolt

• Port size: 1.5" BSP Male (BSPM)

• Seal: Buna-N (NBR)

• Maximum operating pressure: 10 bar

• Maximum operating temperature: 121°C

• Maximum flow rate: 75 LPM

• Pressure gauge ports: Included

• Pressure gauges: Included

• Vent and drain ports: Included

• Adjustable mounting legs: Included

Dimensions

Typical Applications

The SPECTRUM INOX Size 3 stainless steel bag housing is suitable for liquid filtration duties including:

• Commercial and industrial water treatment

• Process water filtration

• Batch process filtration

• Sediment and suspended solids removal

• Pre-filtration

• Cooling and process water

• Chemical process filtration where materials are compatible

• Manufacturing processes

• Applications requiring frequent filter bag replacement

• Space-restricted filtration installations

Compact Premier Stainless Steel Bag Filtration

The SPECTRUM PBH-SGB-1-3-1.5-G combines the compact dimensions of a Size 3 bag housing with the durability of 316L stainless steel construction and the secure access provided by a Premier swing-bolt closure.

With a maximum flow rate of 75 LPM, 1.5" BSPM connections, integrated pressure gauges, vent and drain ports and adjustable mounting legs, it provides a complete professional bag filtration solution for commercial water treatment and industrial process applications.

Compliance

The SPECTRUM INOX Premier range is identified on the manufacturer's datasheet as DWI Approved and PED Compliant – Article 4, Paragraph 3, Group 2 Liquids.

Please Note

The stated maximum flow rate is dependent on the filter bag selected, micron rating, fluid characteristics, contaminant loading, system pressure and acceptable differential pressure. Always select the filter bag and operating conditions according to the requirements of the individual application.
