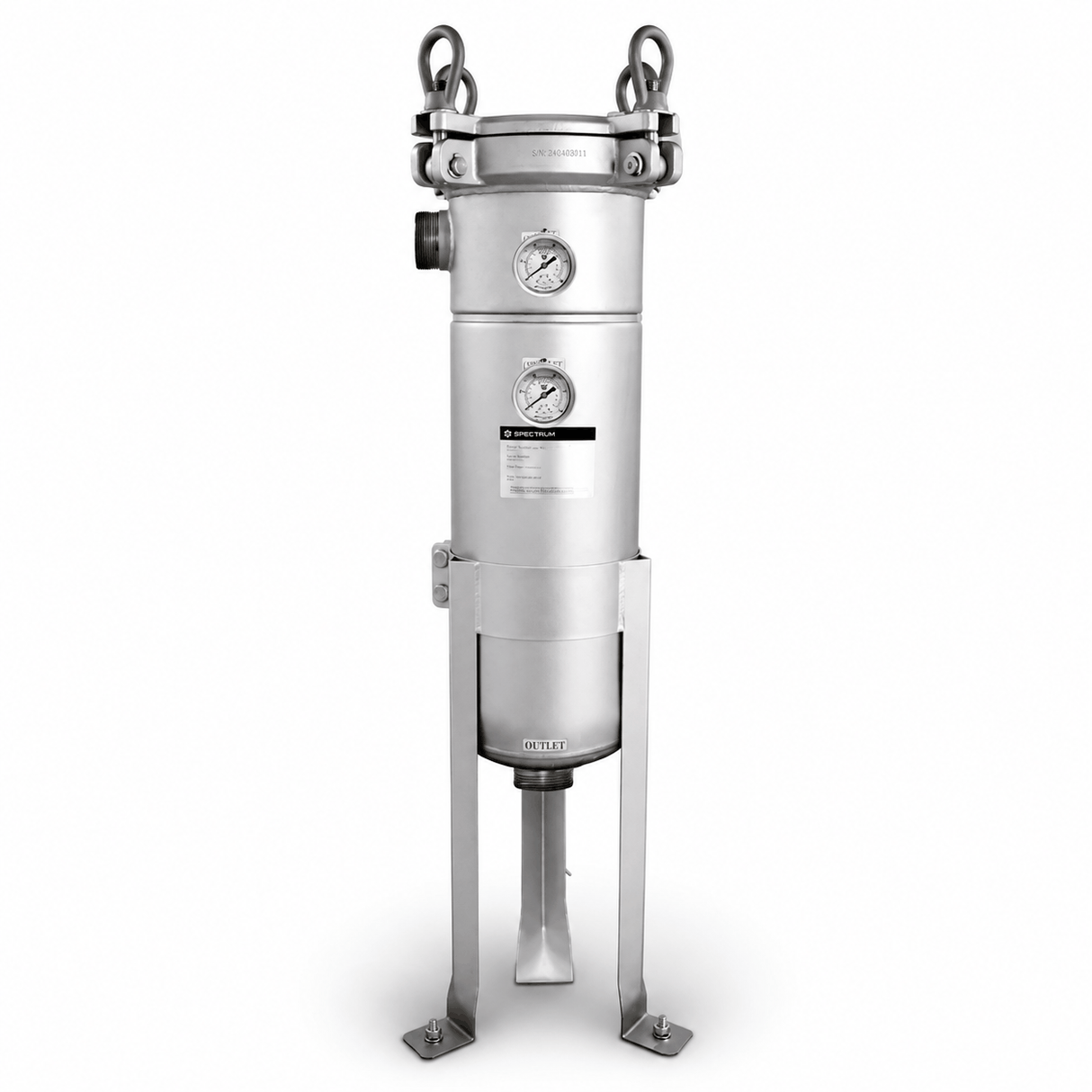

SPECTRUM INOX Bag Housing Stainless Steel Size 4 1.5" BSPM with Gauges – PBH-SGB-1-4-1.5-G

The SPECTRUM INOX PBH-SGB-1-4-1.5-G Bag Housing is a heavy-duty 316L stainless steel Size 4 bag filter housing designed for commercial and industrial liquid filtration applications. Part of the SPECTRUM INOX Premier range, it combines a robust swing-bolt closure, integrated pressure gauges and a maximum flow rate of 150 litres per minute.

Designed to accommodate one Size 4 filter bag, the housing features 1.5" BSP male inlet and outlet connections and provides an effective solution for removing suspended solids and particulate contamination from process and water treatment applications.

Heavy-Duty 316L Stainless Steel Construction

The housing body, lid and internal filter basket are manufactured from 316L stainless steel, providing excellent durability and resistance to corrosion, high temperatures, pressure and aggressive chemicals.

The supporting legs and swing bolts are manufactured from 304 stainless steel, while a Buna-N (NBR) O-ring provides the housing seal.

With a maximum operating pressure of 10 bar and temperature rating of 121°C, the PBH-SGB-1-4-1.5-G is engineered for demanding professional filtration installations.

Premier Swing-Bolt Closure

Unlike the smaller SPECTRUM INOX housings available with standard V-band closures, the Size 4 housing uses the Premier swing-bolt closure system.

This heavy-duty closure provides secure sealing while allowing the housing to be opened for filter bag inspection and replacement. Integrated lifting eyes assist with handling the lid during servicing.

Integrated Inlet and Outlet Pressure Gauges

The PBH-SGB-1-4-1.5-G is supplied with pressure gauges together with inlet and outlet gauge ports.

Monitoring pressure before and after the filter bag allows operators to assess system performance and monitor differential pressure. An increasing pressure differential can indicate that the filter bag is becoming loaded and requires replacement.

The housing also incorporates vent and drain ports to assist with depressurisation, draining and efficient filter bag changeout.

Adjustable Mounting Legs

Stainless steel mounting legs provide a stable installation and can be adjusted to assist with positioning the housing correctly within the filtration system.

The combination of a compact Size 4 bag configuration and 1.5" BSPM connections makes the housing suitable where a robust stainless steel filtration solution is required without the larger dimensions and flow capacity of Size 1 and Size 2 housings.

Key Features

• Manufacturer: SPECTRUM

• Product range: INOX Premier

• Part number: PBH-SGB-1-4-1.5-G

• Configuration: 1 × Size 4 filter bag

• Body & lid: 316L stainless steel

• Filter basket: 316L stainless steel

• Legs: 304 stainless steel

• Swing bolts: 304 stainless steel

• Closure: Premier swing-bolt

• Port size: 1.5" BSP Male (BSPM)

• Seal: Buna-N (NBR)

• Maximum pressure: 10 bar

• Maximum temperature: 121°C

• Maximum flow rate: 150 LPM

• Pressure gauge ports: Included

• Pressure gauges: Included

• Vent and drain ports: Included

• Mounting legs: Included

Dimensions

Typical Applications

The SPECTRUM INOX Size 4 stainless steel bag housing is suitable for a wide variety of liquid filtration duties, including:

• Commercial and industrial water treatment

• Process water filtration

• Sediment and suspended solids removal

• Pre-filtration

• Cooling and process water

• Manufacturing processes

• High dirt-loading filtration applications

• Food and beverage process applications where material compatibility permits

Professional Stainless Steel Bag Filtration

The SPECTRUM PBH-SGB-1-4-1.5-G combines corrosion-resistant 316L stainless steel construction with a secure swing-bolt closure and convenient pressure monitoring.

With a flow capacity of up to 150 LPM, 1.5" BSPM connections and integrated gauges, vent, drain and mounting facilities, it provides a practical and durable solution for professional water treatment and industrial liquid filtration systems.

Please Note

Maximum flow rate is dependent on the filter bag selected, micron rating, fluid characteristics, contaminant loading, system pressure and acceptable differential pressure. The filter bag should always be selected according to the individual filtration application.
