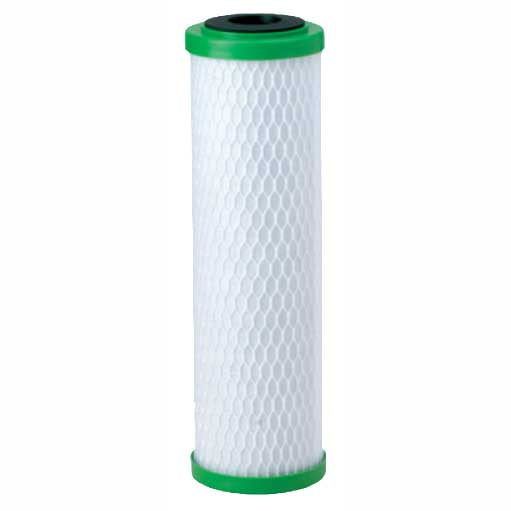

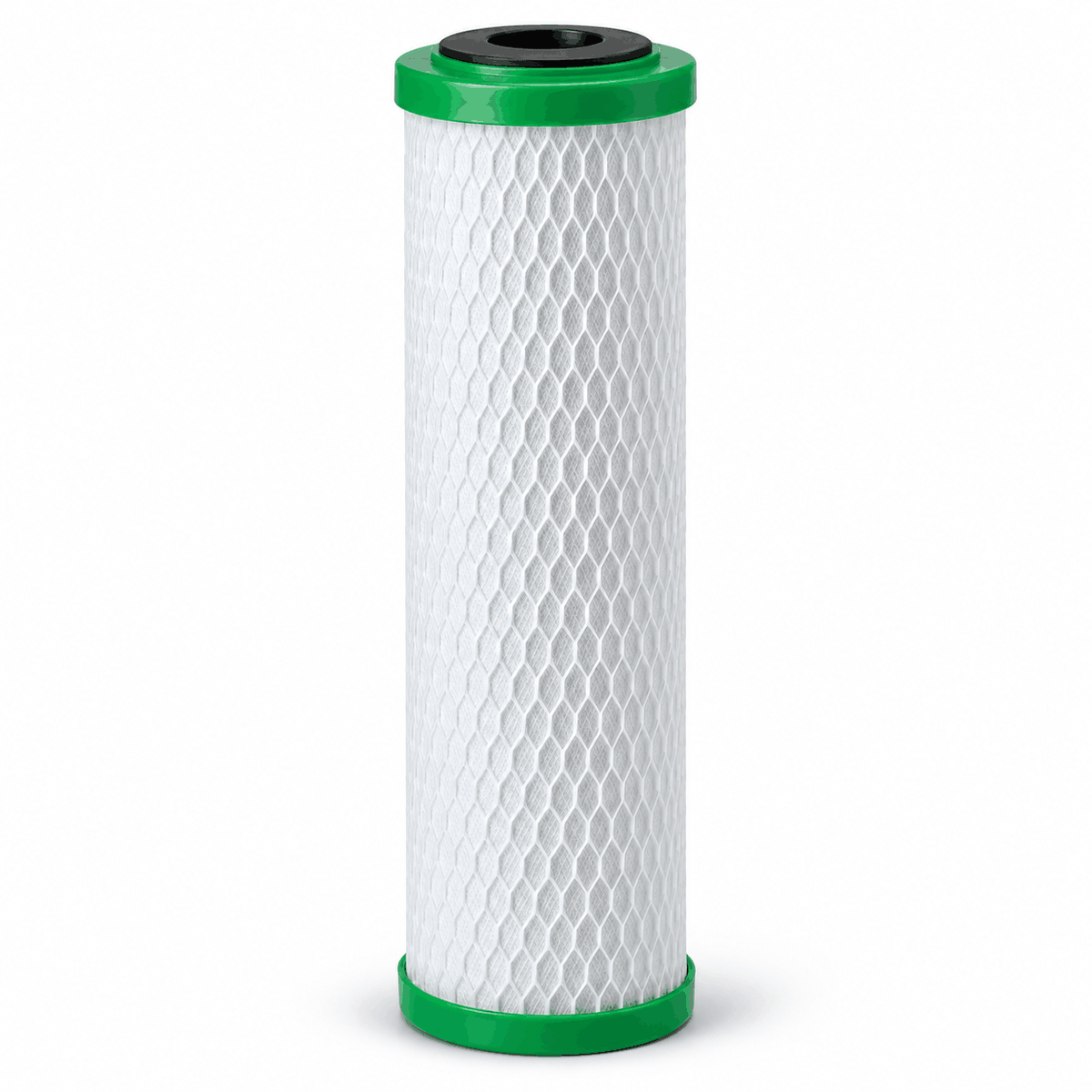

Pentair CBR2-10 Carbon Block Filter Cartridge – 0.5 Micron 9¾" – 155268-43

The Pentair CBR2-10 Carbon Block Filter Cartridge is a high-performance 0.5 micron nominal carbon block filter designed to provide advanced drinking water treatment, including the reduction of chlorine taste and odour, lead, mercury, cysts, MTBE and certain volatile organic compounds (VOCs).

Unlike a conventional carbon block cartridge, the CBR2-10 uses a multi-media construction combining powdered activated carbon with a specially formulated adsorbent media. This enables the cartridge to reduce both dissolved and particulate lead, with lead reduction performance rated through 7,500 litres under specified operating conditions.

A specially formulated polypropylene bilaminate pre-filter surrounds the carbon block, helping capture sediment before it reaches the treatment media. This increases dirt-holding capacity and helps extend the useful life of the cartridge.

With its fine 0.5 micron nominal rating, the Pentair CBR2-10 also provides excellent particulate filtration. Where the incoming water contains significant sediment or turbidity, additional pre-filtration is recommended to prevent premature blockage and maximise cartridge life.

Features & Benefits

• 0.5 micron nominal filtration
• Reduces chlorine taste and odour
• Helps reduce unpleasant tastes and odours
• Reduction of dissolved and particulate lead
• Lead reduction performance through 7,500 litres
• Special adsorbent media for lead and mercury reduction
• Helps reduce cysts
• Reduction of MTBE
• Helps reduce certain volatile organic compounds (VOCs)
• Multi-media carbon block construction
• Polypropylene bilaminate pre-filter improves dirt-holding capacity
• Combines fine particulate filtration with activated carbon treatment
• Designed for high-quality drinking water applications

Multi-Media Carbon Block Technology

The CBR2-10 combines powdered activated carbon with specialised adsorbent media rather than relying on carbon alone. This multi-media construction provides a broader range of contaminant reduction while retaining the taste and odour improvement associated with high-quality activated carbon filtration.

The external polypropylene pre-filter also captures larger suspended particles before they reach the carbon block, helping maximise the available adsorption capacity of the cartridge.

Specifications

Model: CBR2-10
Pentair Part Number: 155268-43
Nominal Micron Rating: 0.5 micron
Cartridge Length: 9¾"
Filter Type: Multi-media carbon block
Primary Media: Powdered activated carbon with specialised adsorbent media
Pre-Filter: Polypropylene bilaminate
Lead Reduction Capacity: Up to 7,500 litres under specified test conditions

Typical Applications

The Pentair CBR2-10 is ideal for applications requiring a high level of drinking water treatment, including:

• Under-sink drinking water systems
• Point-of-use filtration
• Lead reduction
• Chlorine taste and odour reduction
• Fine sediment filtration
• Cyst reduction
• VOC reduction
• Domestic drinking water treatment

Pre-filtration is recommended where sediment levels are high, as the fine 0.5 micron carbon block can otherwise become prematurely restricted.
