ChlorPlus Protect 10 PFAS Filtration System
Advanced Filtration for Cleaner, Safer Water
The ChlorPlus Protect 10 System is designed to provide clean and safe drinking water for your home with unparalleled performance. With the ability to reduce up to 99.6% of total PFAS (commonly known as "forever chemicals") along with sediment, chlorine, and chloramine, this system ensures your water tastes great and protects your health.
Features and Benefits
-
99.6% PFAS Reduction
Certified by IAPMO R&T to NSF/ANSI 53 standards to significantly reduce harmful chemicals. -
Carbon Block Technology
Offers fine filtration down to 1 micron for superior sediment, chlorine, and chloramine reduction. -
Built-in Pressure Relief
Simplifies cartridge changes and ensures smooth operation. -
Compact and Durable Design
Ideal for under-sink installation with heavy-duty polypropylene housing for long-term reliability.

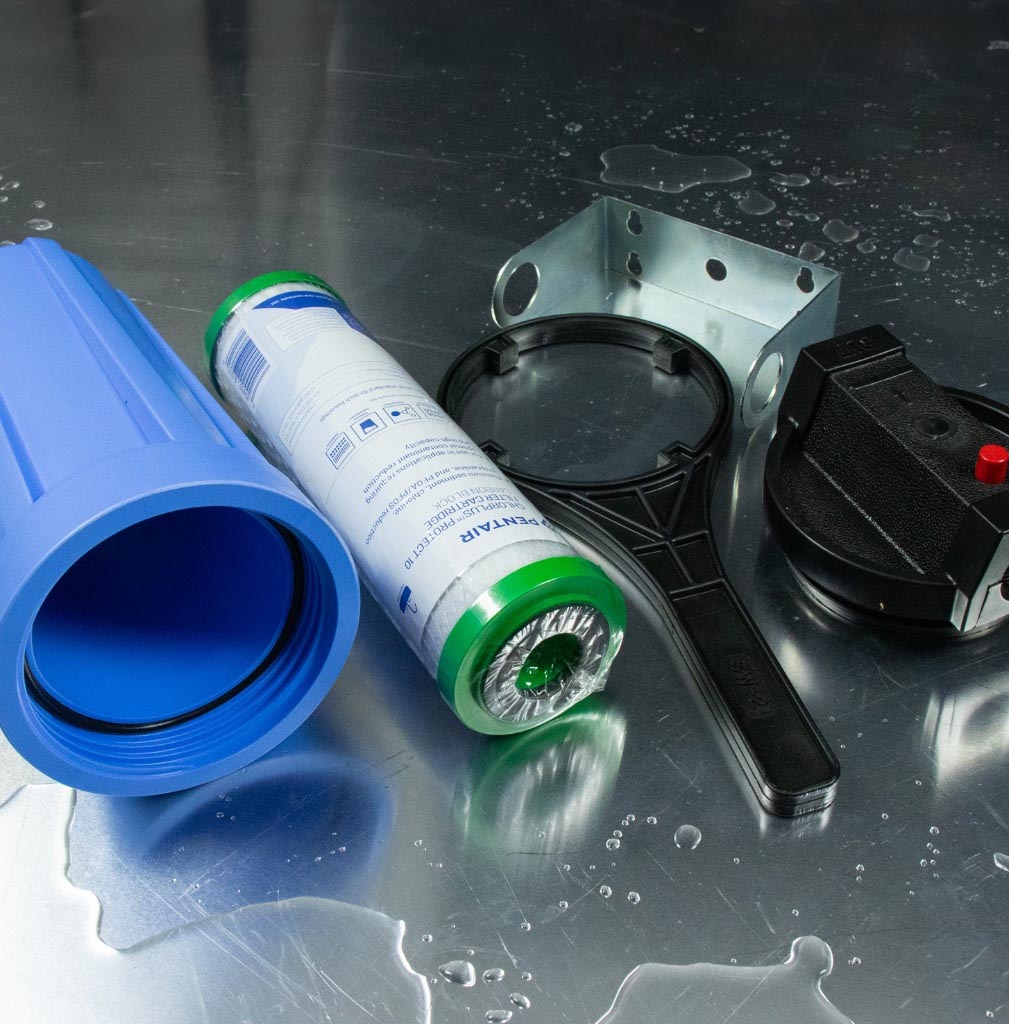

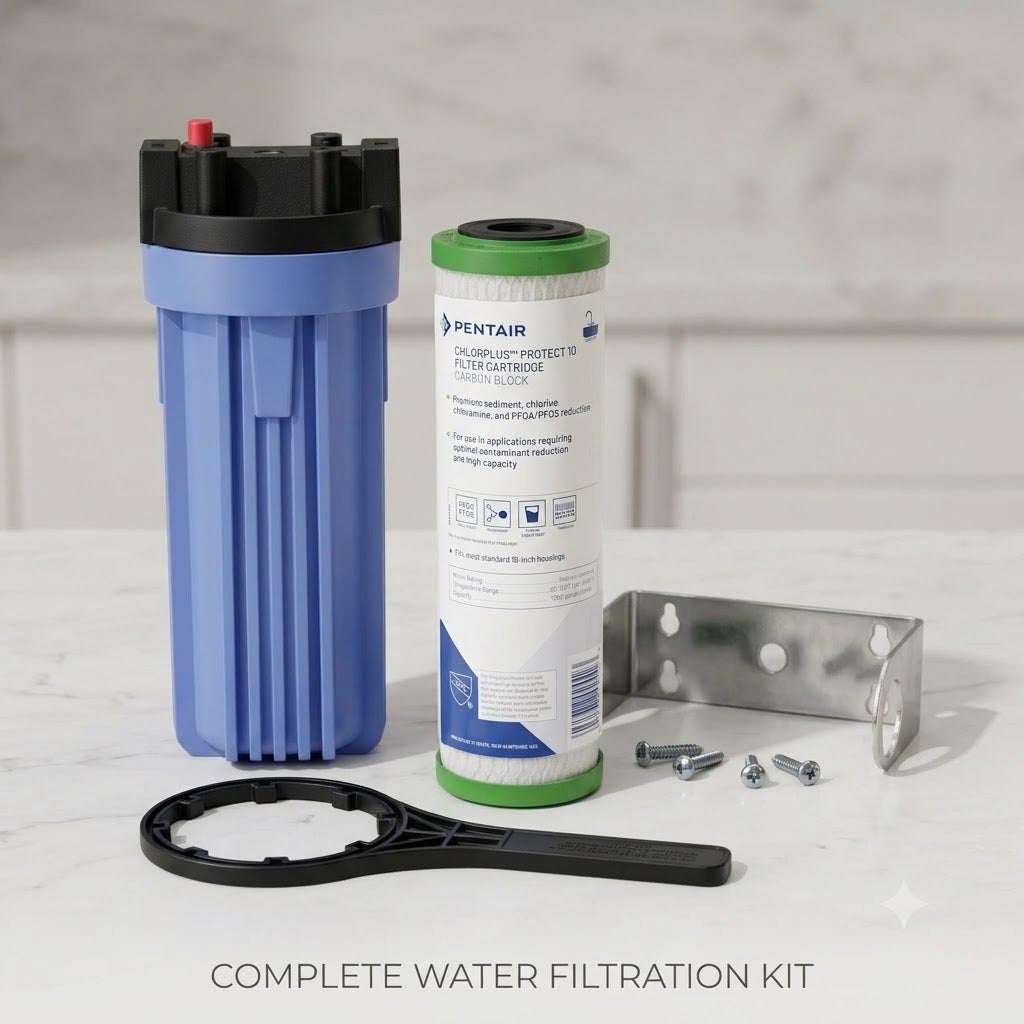

What's Included in the Kit

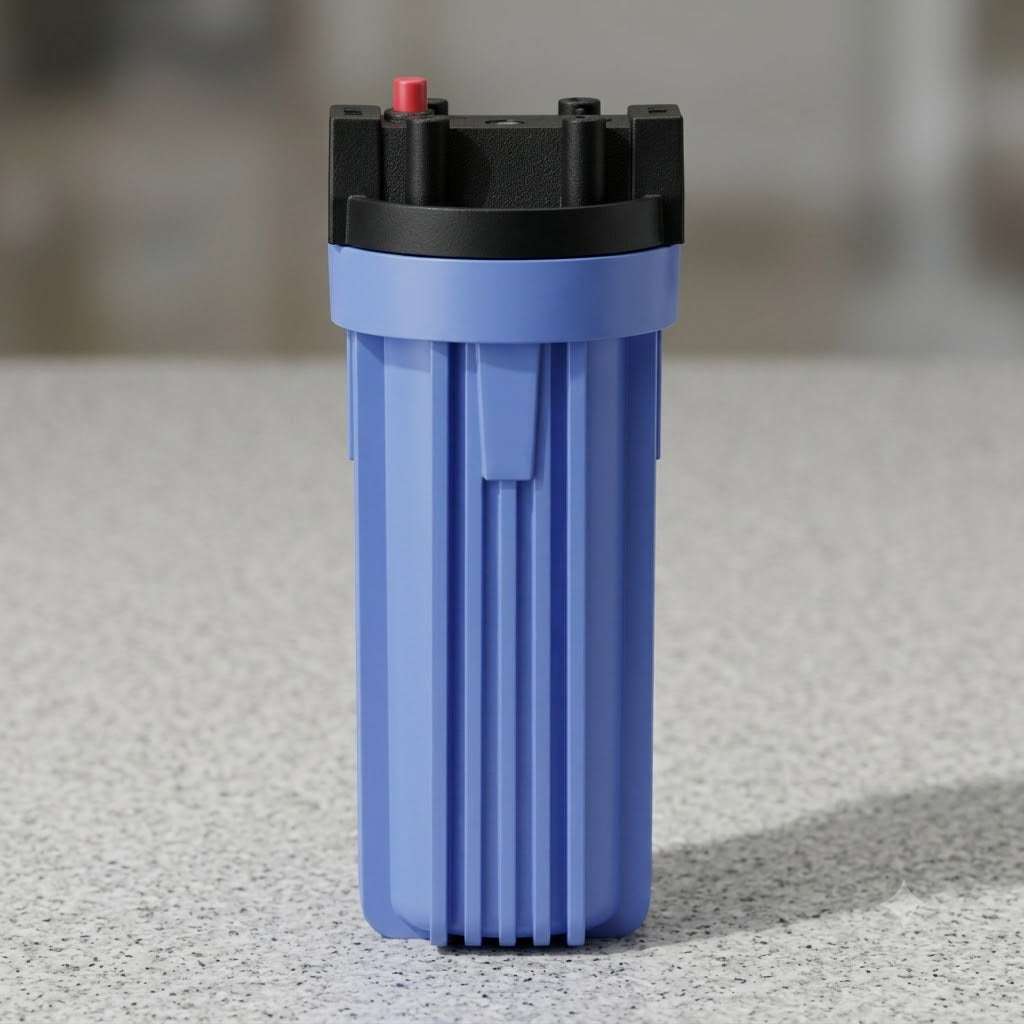

- 10" heavy-duty housing

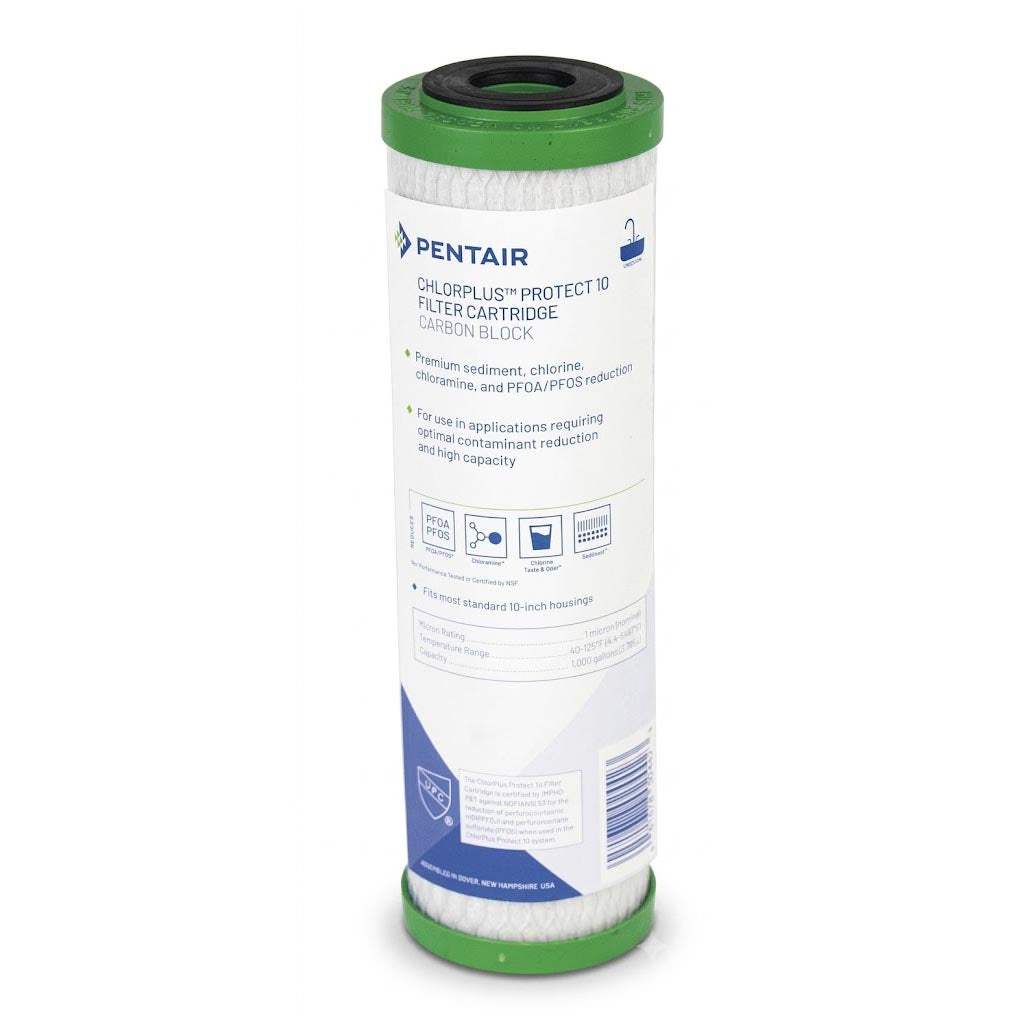

- ChlorPlus Protect 10 replacement cartridge
- Wrench for easy maintenance

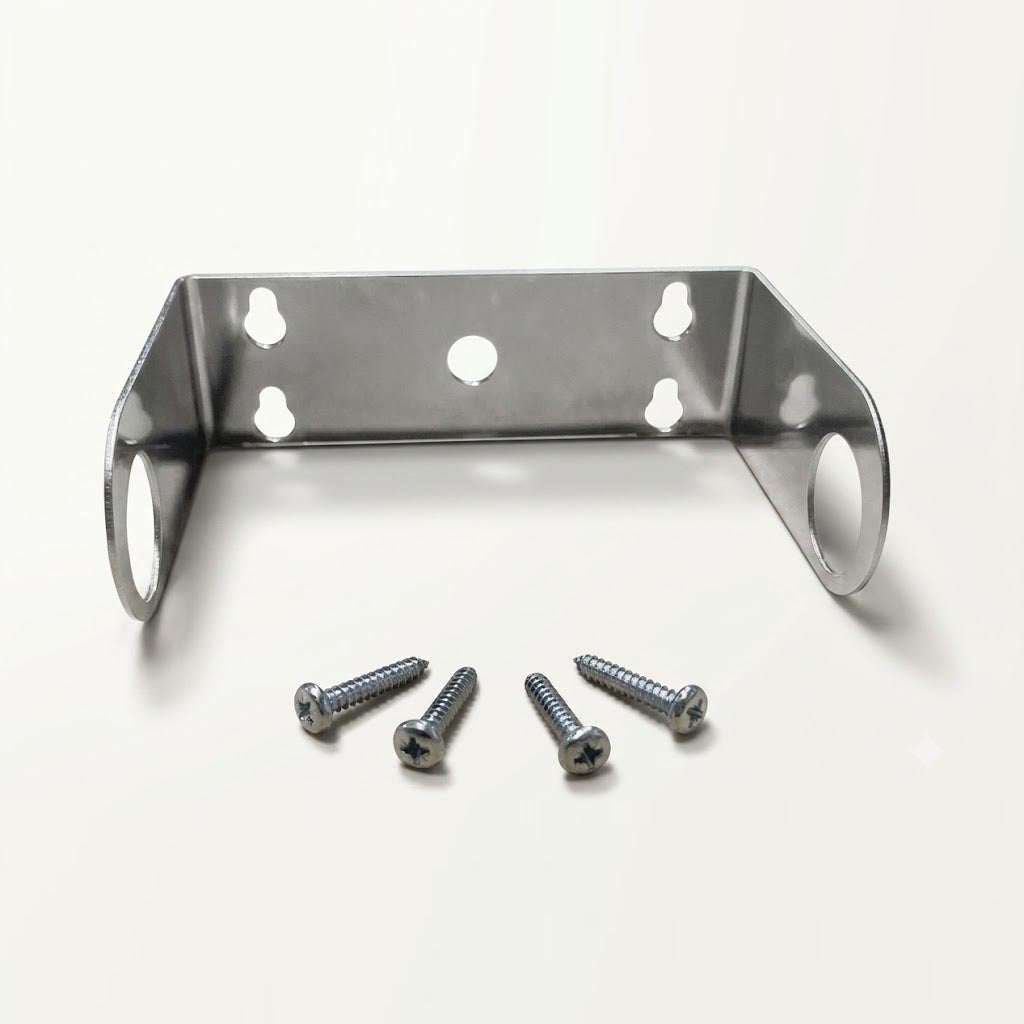

- Mounting bracket for secure installation
- Installation and operation manual
Installation and Operation Tips
- Choose a sturdy location to support the system's weight during use.
- Install vertically with the housing bowl facing downward. Ensure 1.5 inches of clearance below the cartridge for hassle-free replacement.
- Lubricate the O-ring during installation to prevent leaks.
- Replace the cartridge when the flow rate decreases for optimum performance.
Technical Specifications
| Specification | Details |
|---|---|
| Filtration Technology | Carbon block |
| Micron Rating | 1 micron |
| Reduction Capability | PFAS, sediment, chlorine, chloramine |
| Flow Rate | 1 gpm (3.785 Lpm) |
| Capacity | 1,000 gallons (3,785 liters) |
| Housing Material | Polypropylene |
| Dimensions | 5.13" H x 12.23" W (130 mm x 310 mm) |
| Feed Pressure Range | 0–125 psi (2.1–8.6 bar) |
| Temperature Range | 40°-100°F (4.4°-37.8°C) |
| Certification | NSF/ANSI Standard 53 |
| Replacement Cartridge | ChlorPlus Protect 10 / 655226-43 (12/Case) |
| Inlet Size | 3/4" BSP |
Why Choose the ChlorPlus Protect 10 System?
This system ensures the highest level of protection for your drinking water by reducing contaminants like PFAS while also improving the overall taste and clarity. The professional-grade technology is paired with a user-friendly design, making it simple to install and maintain.
Experience cleaner, safer water from the comfort of your home with ChlorPlus Protect 10.
