Pentair PCC-1 Scale Inhibiting Cartridge 10" 155100-43

Pentair PCC-1 Scale Inhibiting Cartridge 10" – 155100-43

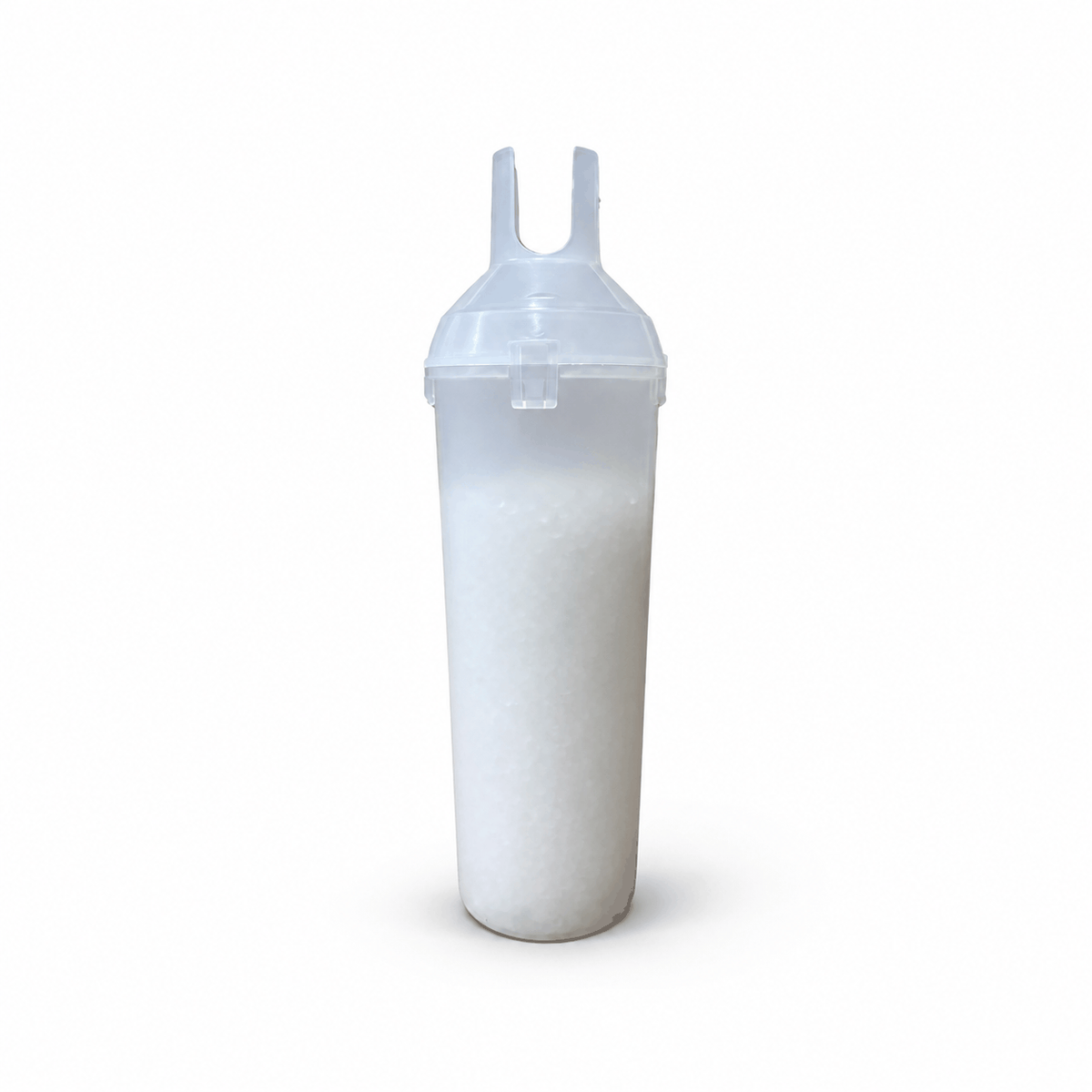

The Pentair Pentek PCC-1 Scale Inhibiting Cartridge is a 10" polyphosphate cartridge designed to help reduce lime scale, corrosion and iron staining in water systems and equipment.

Containing hexametaphosphate crystals, the PCC-1 slowly releases polyphosphate into the water. This helps keep hardness minerals suspended and separated, reducing their tendency to precipitate and form hard scale deposits when water is heated.

The cartridge is particularly suitable for protecting equipment such as water heaters, coffee machines, vending machines, ice machines and food service equipment, where scale build-up can reduce efficiency and shorten equipment life.

Scale, Corrosion & Iron Protection

The PCC-1 provides three key forms of water treatment:

Scale Control
Polyphosphate helps keep hardness particles separated, reducing their ability to precipitate and form lime scale deposits when heated. Suitable for water with hardness levels up to 15 grains per gallon (approximately 257 mg/L as CaCO₃).

Corrosion Control
The treatment helps form a protective coating on metal surfaces, reducing the effects of factors such as acidity, alkalinity, hardness and chlorides that can contribute to corrosion of pipes and water-using equipment.

Iron Control
Dissolved iron up to 1 ppm can be sequestered and kept suspended in the water, helping prevent precipitation that may otherwise cause staining and discolouration.

Features & Benefits

• Helps prevent lime and scale deposits

• Helps protect equipment and pipework from corrosion

• Sequesters dissolved iron to help reduce staining and discolouration

• Uses slowly dissolving hexametaphosphate / polyphosphate crystals

• Suitable for hardness levels up to 15 gpg

• Suitable for dissolved iron levels up to 1 ppm

• Maximum flow rate up to 19 litres per minute

• Designed for standard 10" filter housings

• Particularly useful for protecting water-heating and food service equipment

• Can provide effective treatment for up to six months, depending on water quality, flow rate and usage

Technical Specifications

Manufacturer: Pentair Pentek
Model: PCC-1
Part Number: 155100-43
Cartridge Size: 10" Standard Diameter
Dimensions: 73 mm diameter × 244 mm length
Filter Media: Polyphosphate
Shell: Polypropylene
Post Filter: Polypropylene
Maximum Flow Rate: 19 L/min
Temperature Range: 4.4°C to 37.8°C
Recommended pH Range: 6.5–9.0
Maximum Hardness: 15 gpg
Maximum Dissolved Iron: 1 ppm

Typical Applications

The Pentair PCC-1 is ideal for protecting:

• Water heaters

• Boilers and hot water equipment

• Coffee machines

• Vending machines

• Ice machines

• Food service equipment

• Catering equipment

• Water processing equipment

• Domestic and commercial appliances susceptible to scale

Fits Standard 10" Filter Housings

The PCC-1 is specifically designed for standard 10" filter housings. Unlike some of the smaller PCC cartridges, it is not intended for Slim Line housings.

Important Information

The Pentair PCC-1 is a scale inhibitor rather than a water softener. It does not physically remove calcium and magnesium hardness from the water. Instead, the polyphosphate treatment helps prevent these minerals from forming hard deposits on equipment and surfaces.

Cartridge life will vary depending on water hardness, flow rate, water consumption and operating conditions. Pentair advises that PCC cartridges can provide treatment for up to approximately six months under suitable conditions.

Do not use with microbiologically unsafe water or water of unknown microbiological quality without adequate disinfection before or after the filtration system.
