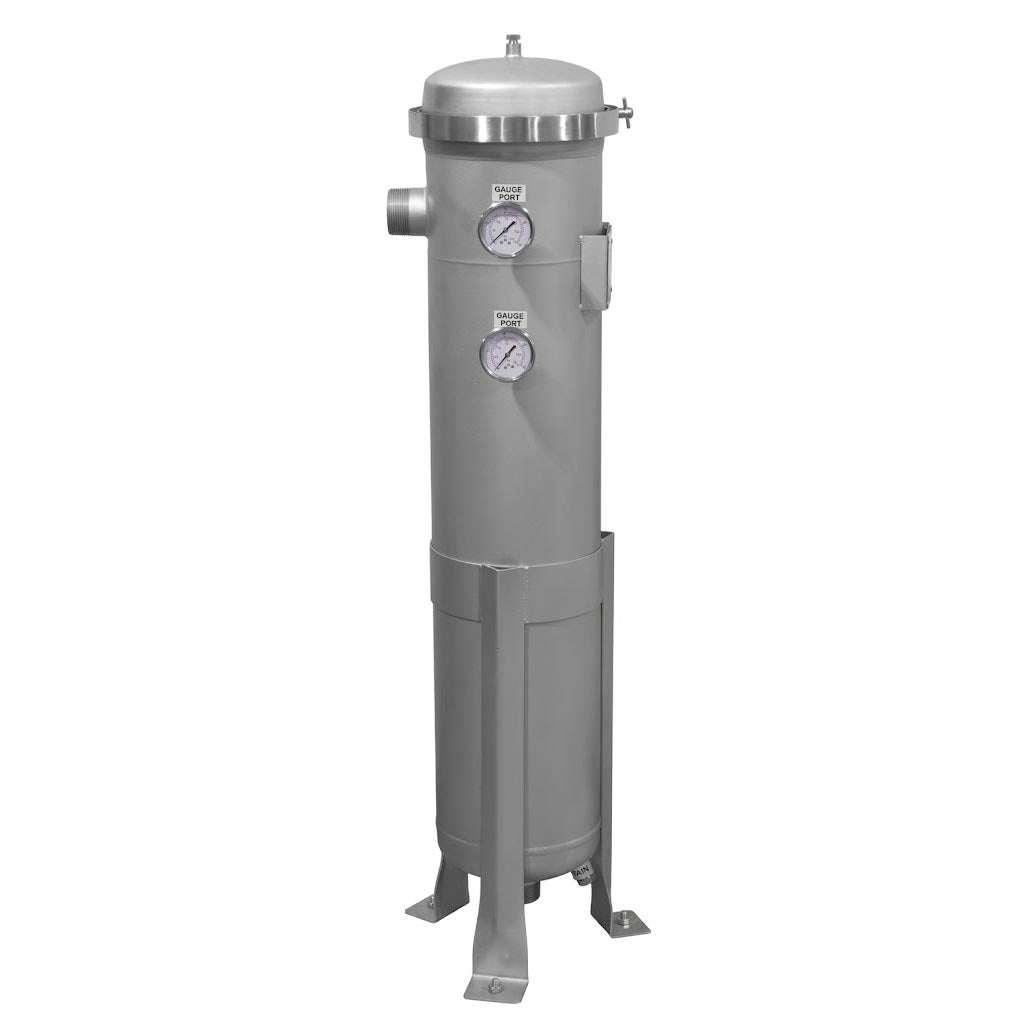

SPECTRUM INOX Bag Housing Stainless Steel Size 2 2" BSPM with Gauges – SBH-SGB-1-2-2-G

The SPECTRUM INOX SBH-SGB-1-2-2-G Stainless Steel Bag Housing is a heavy-duty 316L stainless steel Size 2 bag filter housing with pressure gauges, designed for high-flow commercial and industrial liquid filtration applications. With a maximum flow rate of 600 litres per minute, this robust single-bag housing is particularly suited to applications requiring efficient bulk solids removal and high dirt-holding capacity.

Constructed from 316L stainless steel, the SPECTRUM INOX housing provides excellent durability and resistance to high temperatures, operating pressures and aggressive chemicals. The housing incorporates inlet and outlet pressure gauge ports, vent and drain ports and adjustable mounting legs to simplify system monitoring, filter changeout and installation.

High-Flow Size 2 Bag Filtration

Designed to accept 1 x Size 2 filter bag, the SBH-SGB-1-2-2-G is the largest housing in SPECTRUM's standard single-round Size 1 and Size 2 range.

Its larger Size 2 filter bag provides increased filtration area and dirt-loading capacity, making the housing particularly effective for high-flow and bulk solids removal applications. The increased contaminant capacity can extend operating periods between filter changes, helping processes remain online for longer.

With a rated flow of up to 600 LPM, the housing provides a compact filtration solution for demanding industrial and process-water duties. The manufacturer's technical data confirms a maximum pressure rating of 10 bar, temperature rating of 121°C, and Size 2 flow rate of 600 LPM.

316L Stainless Steel Construction

Both the housing body and lid and the internal filter bag support basket are manufactured from 316L stainless steel. This provides the strength, corrosion resistance and durability required for demanding liquid filtration environments.

The adjustable supporting legs and V-band clamp are manufactured from 304 stainless steel, while sealing is provided by a Buna-N O-ring.

Supplied with Pressure Gauges

Unlike versions where gauges are optional, the SBH-SGB-1-2-2-G is supplied with pressure gauges. Gauges positioned at the inlet and outlet allow operators to monitor pressure across the filter housing and identify increasing differential pressure as the filter bag becomes loaded with contaminants.

This provides a practical indication of filter condition and helps operators determine when the bag requires inspection or replacement, reducing unnecessary filter changes while helping maintain system performance.

The SPECTRUM ordering guide confirms that this model includes gauge ports, gauges and mounting legs as standard.

Standard V-Band Clamp Closure

The SBH-SGB-1-2-2-G uses a robust 304 stainless steel V-band clamp closure, providing secure closure during operation while allowing convenient access to the internal Size 2 filter bag during servicing.

Vent and drain ports further simplify maintenance by allowing the housing to be vented, depressurised and drained during filter bag changeout.

Adjustable Mounting Legs

Adjustable stainless steel mounting legs provide a stable installation platform and allow the housing position to be adapted to the installation.

According to the dimensional drawing on page 1 of the manufacturer's datasheet, the SBH-SGB-1-2-2-G has dimensions A: 1048 mm, B: 127 mm and C: 560 mm.

Key Features

• SPECTRUM INOX industrial stainless steel bag housing

• Product code: SBH-SGB-1-2-2-G

• 1 x Size 2 filter bag configuration

• Heavy-duty 316L stainless steel body and lid

• 316L stainless steel filter bag support basket

• Maximum flow rate: 600 LPM

• 2" BSP male inlet and outlet connections

• Maximum operating pressure: 10 bar

• Maximum temperature: 121°C

• Buna-N O-ring seal

• Inlet and outlet pressure gauges included

• Pressure gauge ports for system monitoring

• 304 stainless steel V-band clamp

• Vent and drain ports for easier filter changeout

• Adjustable 304 stainless steel mounting legs

• High dirt-loading capability

• Designed for high-flow and bulk solids removal applications

Technical Specification

Typical Applications

The SPECTRUM INOX Size 2 stainless steel bag housing is suitable for a wide range of demanding liquid filtration duties, including:

• Industrial and process water filtration

• High-flow particulate filtration

• Bulk solids removal

• Pre-filtration and process protection

• Commercial water treatment systems

• Chemical and industrial liquid processing

• Applications requiring high dirt-loading capacity

Why Choose the SPECTRUM INOX SBH-SGB-1-2-2-G?

The SBH-SGB-1-2-2-G combines the capacity of a Size 2 filter bag with robust 316L stainless steel construction and a maximum flow rate of 600 LPM. Its high dirt-loading capability makes it particularly suitable for applications where maintaining flow and extending operating periods between filter changes are important.

With pressure gauges supplied as standard, operators can monitor inlet and outlet pressure and assess filter condition more effectively. Combined with the V-band closure, vent and drain ports and adjustable mounting legs, this provides a practical, durable and serviceable filtration solution for demanding commercial and industrial applications.
