SPECTRUM INOX Bag Housing Stainless Steel Size 2 – 2" BSPM – SBH-SPC-1-2-2-GP-ML

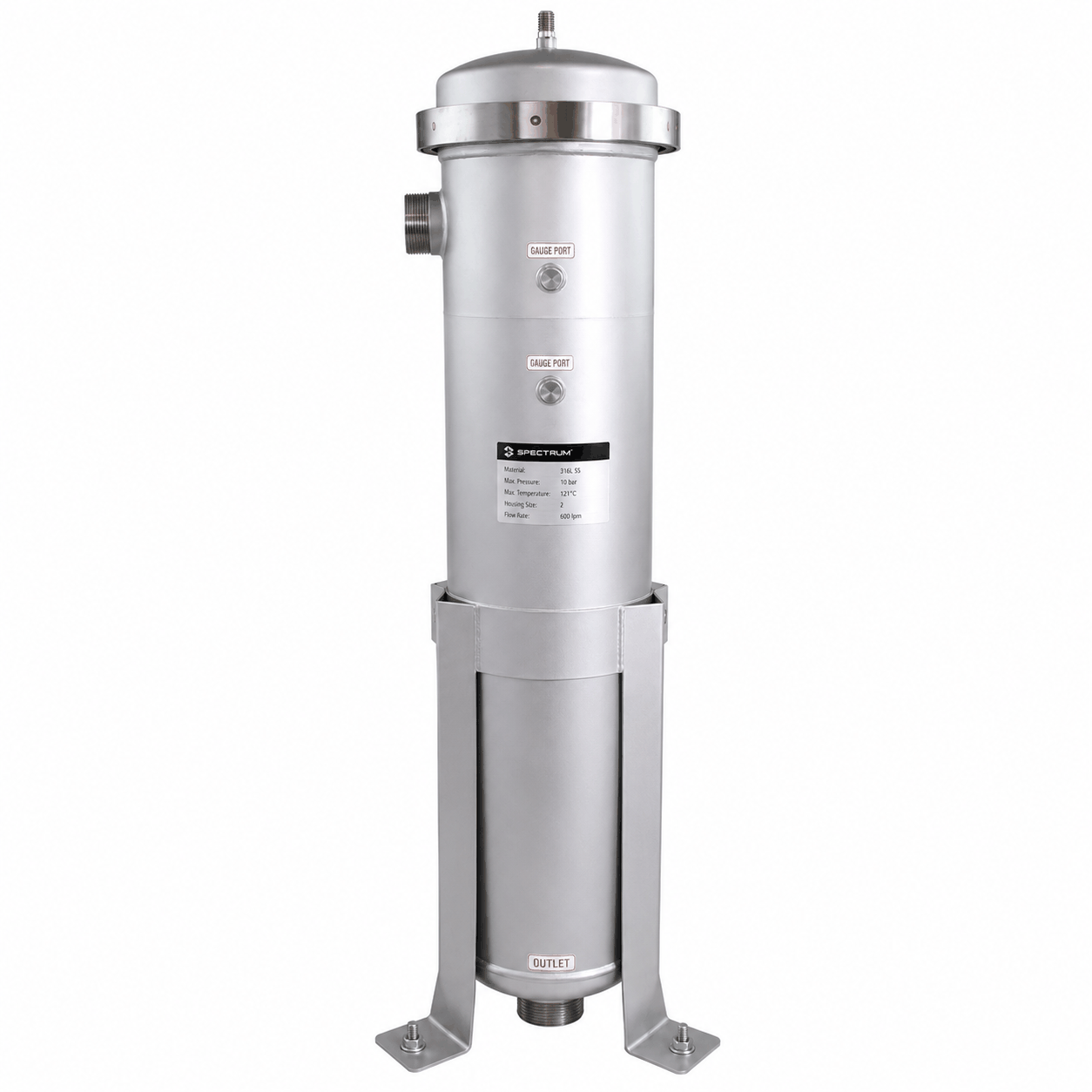

The SPECTRUM INOX SBH-SPC-1-2-2-GP-ML Stainless Steel Bag Housing is a heavy-duty single Size 2 bag filter housing designed for high-flow industrial and commercial liquid filtration applications. Manufactured with a 316L stainless steel body, this robust housing provides excellent durability and resistance to high temperatures, pressure and aggressive process chemicals.

Designed for flow rates of up to 600 litres per minute, the SPECTRUM INOX Size 2 Bag Housing is particularly suited to high-flow applications and bulk solids removal. The large Size 2 filter bag provides excellent dirt-holding capacity, helping extend operating periods between filter changes and reducing process downtime.

Heavy-Duty 316L Stainless Steel Construction

The housing body, lid, inlet and outlet ports, internal basket and wetted fittings are manufactured from 316L stainless steel, providing a durable filtration solution for demanding water treatment and process applications. The housing is rated for operation at pressures up to 10 bar and temperatures up to 120°C.

SPECTRUM INOX housings are designed for applications where the strength, temperature resistance and chemical compatibility of stainless steel are required.

Size 2 Bag Housing – Up to 600 LPM

The SBH-SPC-1-2-2-GP-ML accepts one industry-standard Size 2 filter bag and provides a maximum rated flow of 600 LPM.

Size 2 is the largest option within the SPECTRUM single-round bag housing range, making it particularly suitable for high-flow and bulk solids removal applications. Its high dirt-loading capability allows filtration systems and industrial processes to remain online for longer between filter changes.

Integrated Gauge, Vent and Drain Ports

The housing incorporates ¼" BSPF inlet and outlet pressure gauge ports, allowing pressure gauges to be fitted for monitoring system performance and pressure differential across the filter bag.

A ¼" BSPF vent port and ½" BSPF drain port are also incorporated into the housing, helping simplify depressurisation, draining and routine filter bag replacement.

Pressure gauges are optional on this Standard Housing (SBH) model.

Secure V-Band Closure

The SPECTRUM INOX Standard Bag Housing uses a robust 304 stainless steel V-band clamp closure to secure the 316L stainless steel lid. A Buna-N lid O-ring provides the housing seal.

Internally, the Size 2 filter bag is supported by a 316L stainless steel ⅛" perforated basket, while an integrated bag hold-down device helps retain the filter bag correctly during operation.

Adjustable Mounting Legs

Three adjustable 304 stainless steel mounting legs are supplied as standard, providing a stable installation while allowing the housing position to be adjusted to suit site pipework and floor requirements.

The three legs are positioned 120° apart and incorporate 12.7 mm mounting holes for securing the housing to a suitable base.

Technical Specification

The manufacturer's dimensional drawing confirms an overall height of 1132 mm, with a rated maximum flow of 600 LPM for the SBH-SPC-1-2-2-GP-ML.

Typical Applications

The SPECTRUM INOX Size 2 stainless steel bag housing is suitable for a wide range of demanding liquid filtration duties, including:

• Industrial water filtration

• Process water treatment

• High-flow sediment removal

• Bulk suspended solids removal

• Pre-filtration systems

• Manufacturing and process applications

• Commercial water treatment systems

Key Features

• Heavy-duty 316L stainless steel construction

• Accepts 1 x Size 2 filter bag

• High flow capacity of up to 600 LPM

• 2" BSPM inlet and outlet connections

• Maximum working pressure of 10 bar

• Maximum operating temperature of 120°C

• Buna-N lid seal

• Secure stainless steel V-band clamp closure

• Integrated inlet and outlet pressure gauge ports

• Pressure gauges available as an option

• Integrated vent and drain ports

• 316L stainless steel perforated support basket

• Adjustable stainless steel mounting legs

• Designed for high dirt-loading and bulk solids removal applications

• Durable construction for demanding industrial filtration duties

The SPECTRUM INOX SBH-SPC-1-2-2-GP-ML Size 2 Bag Housing combines high-flow performance, robust stainless steel construction and practical servicing features in a professional industrial filtration housing. With a capacity of up to 600 LPM, it is an excellent choice where high dirt loading, reliable solids removal and long-term durability are required.
