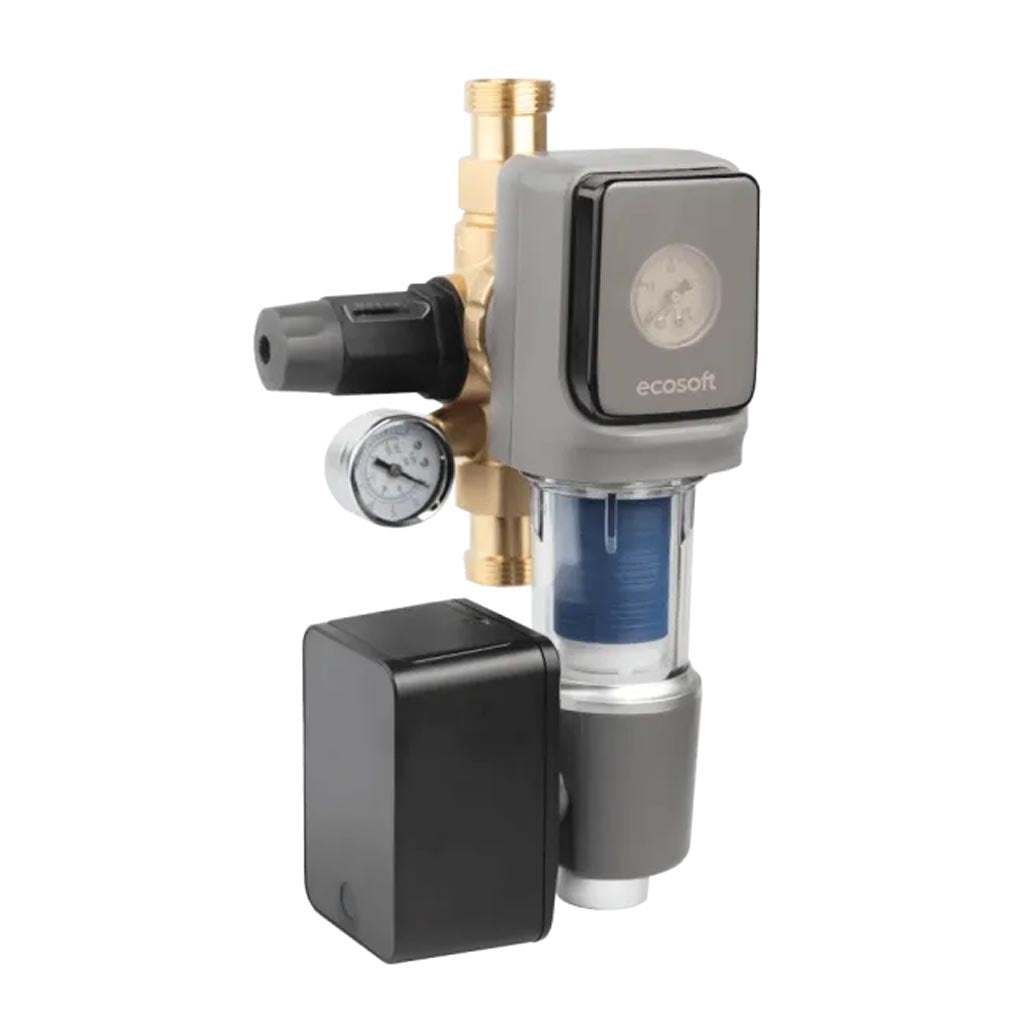

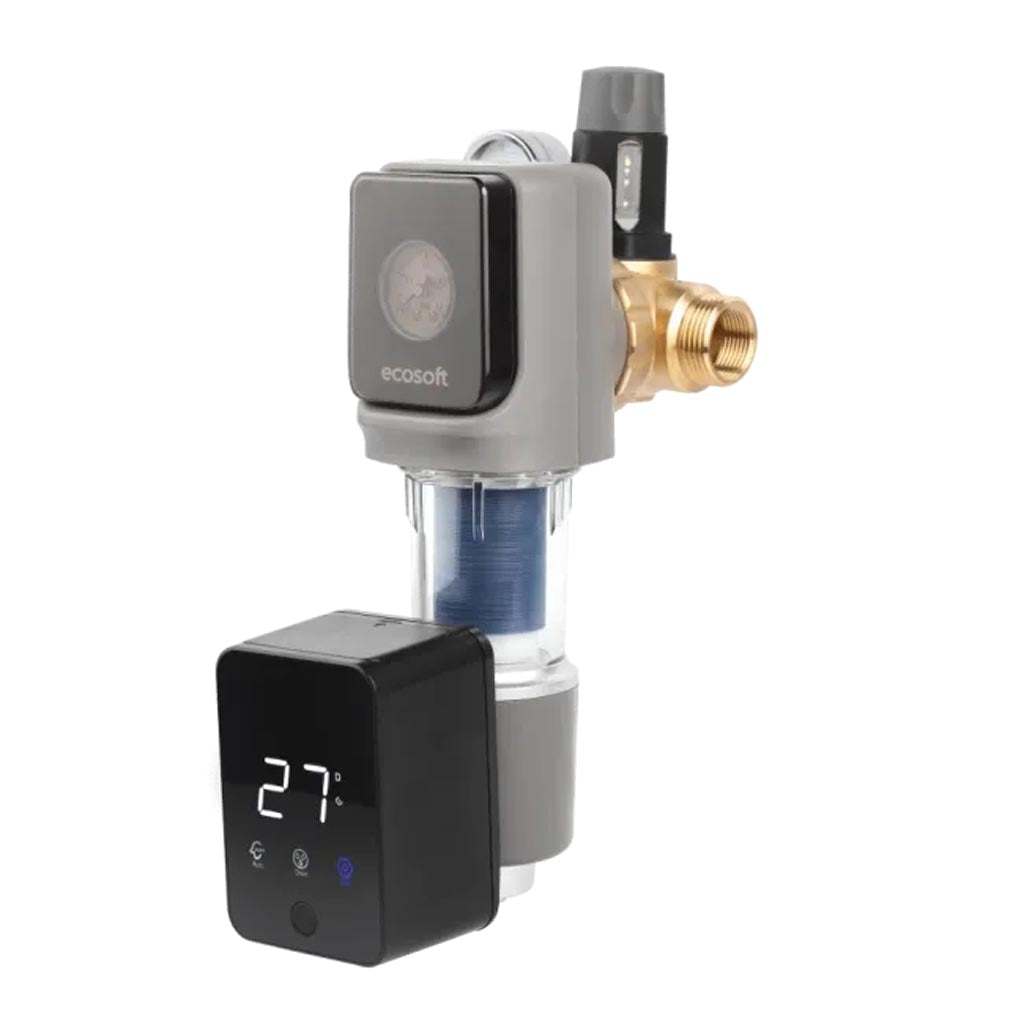

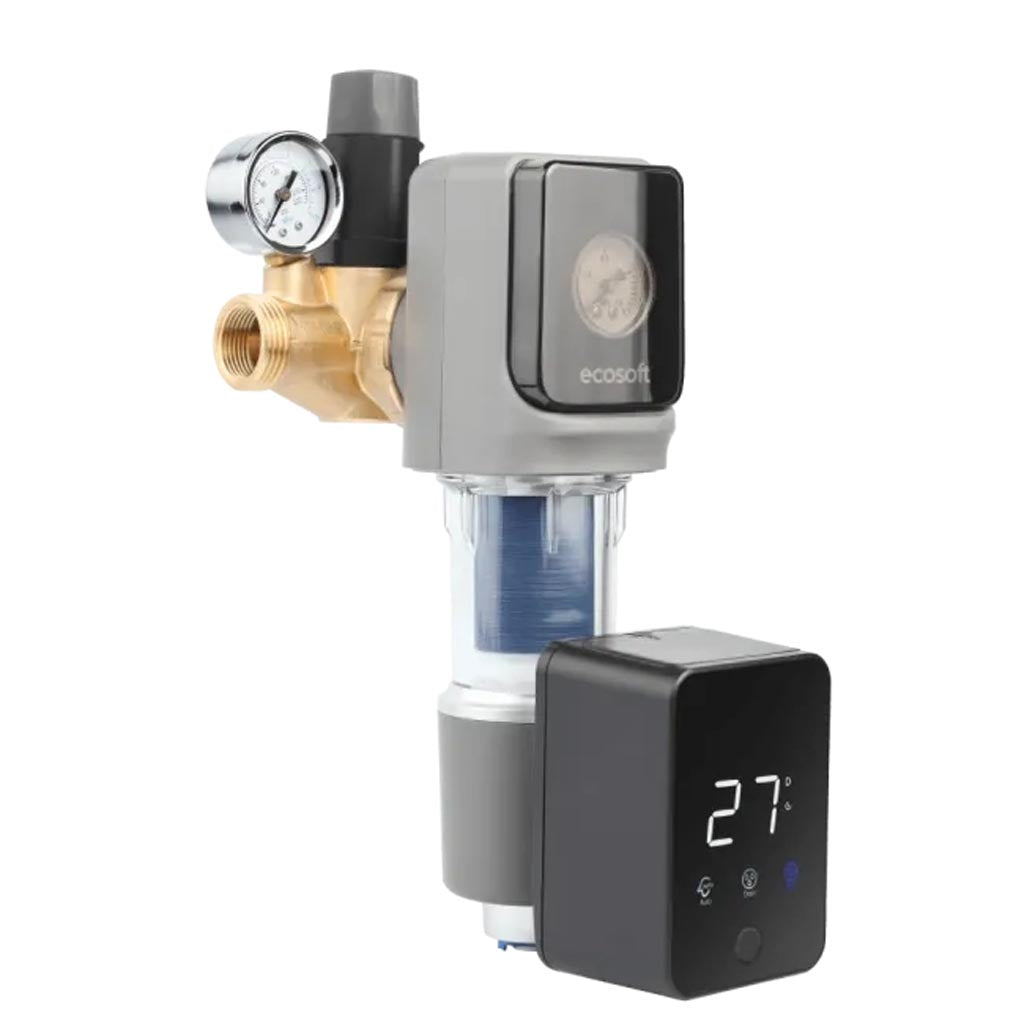

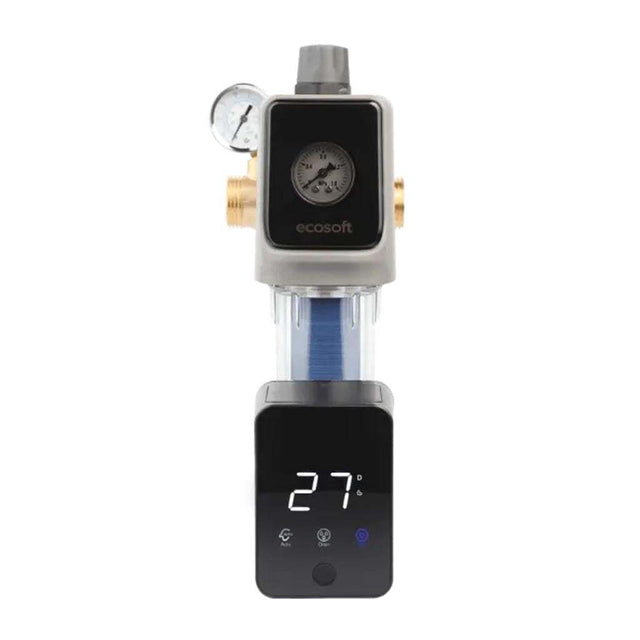

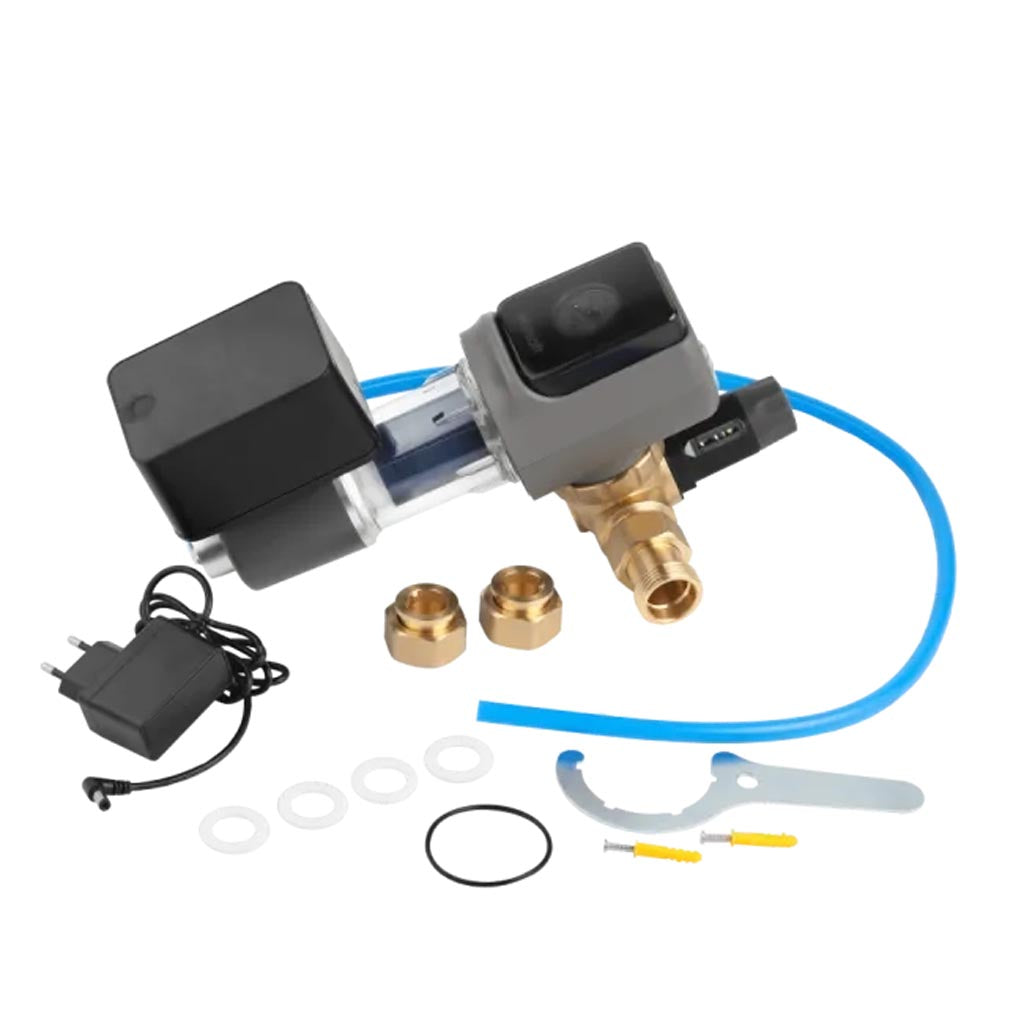

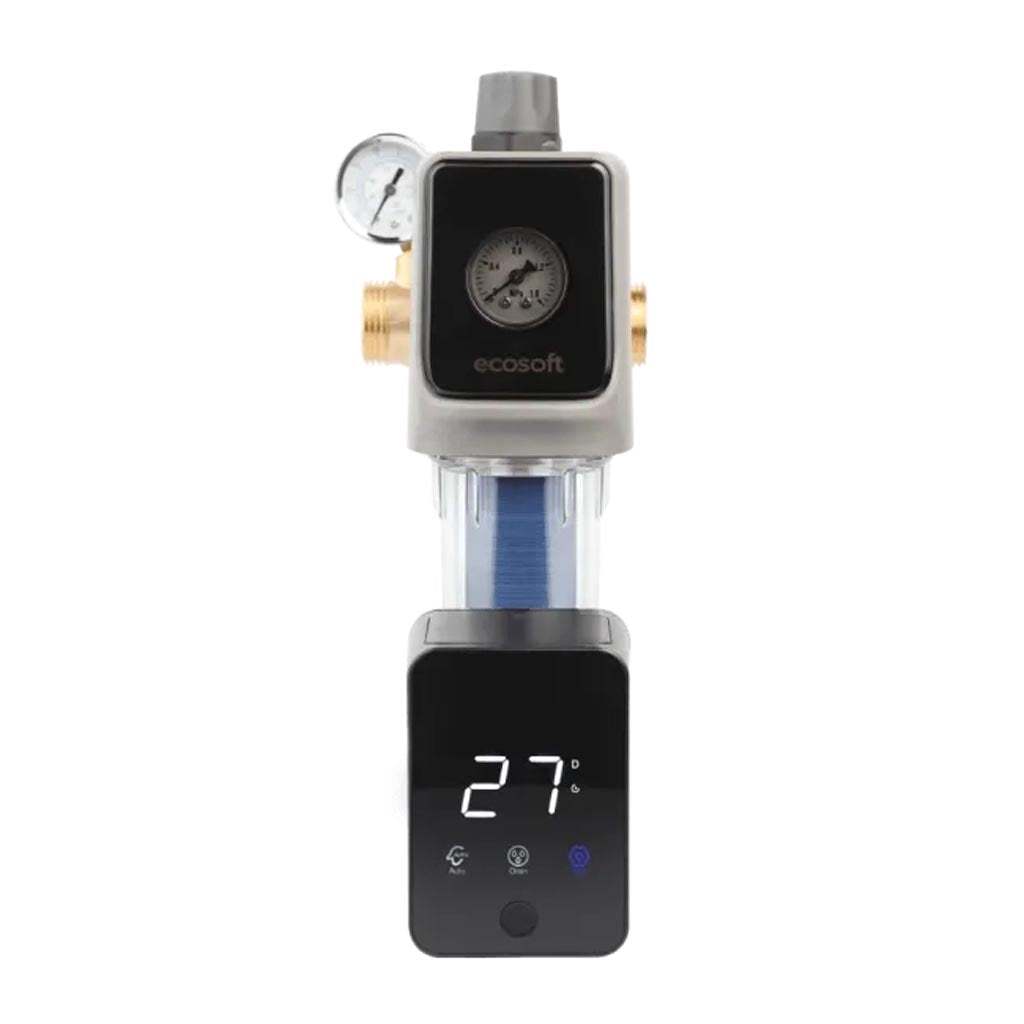

Sediment Disc Water Filter AR 1"
The Sediment Disc Water Filter AR 1" provides high-performance sediment filtration, ensuring clean, safe water for your home or business. With advanced automatic flushing and a robust design, this filter handles dirt, sand, rust, and other impurities effortlessly, even in water with high iron content.
Key Features

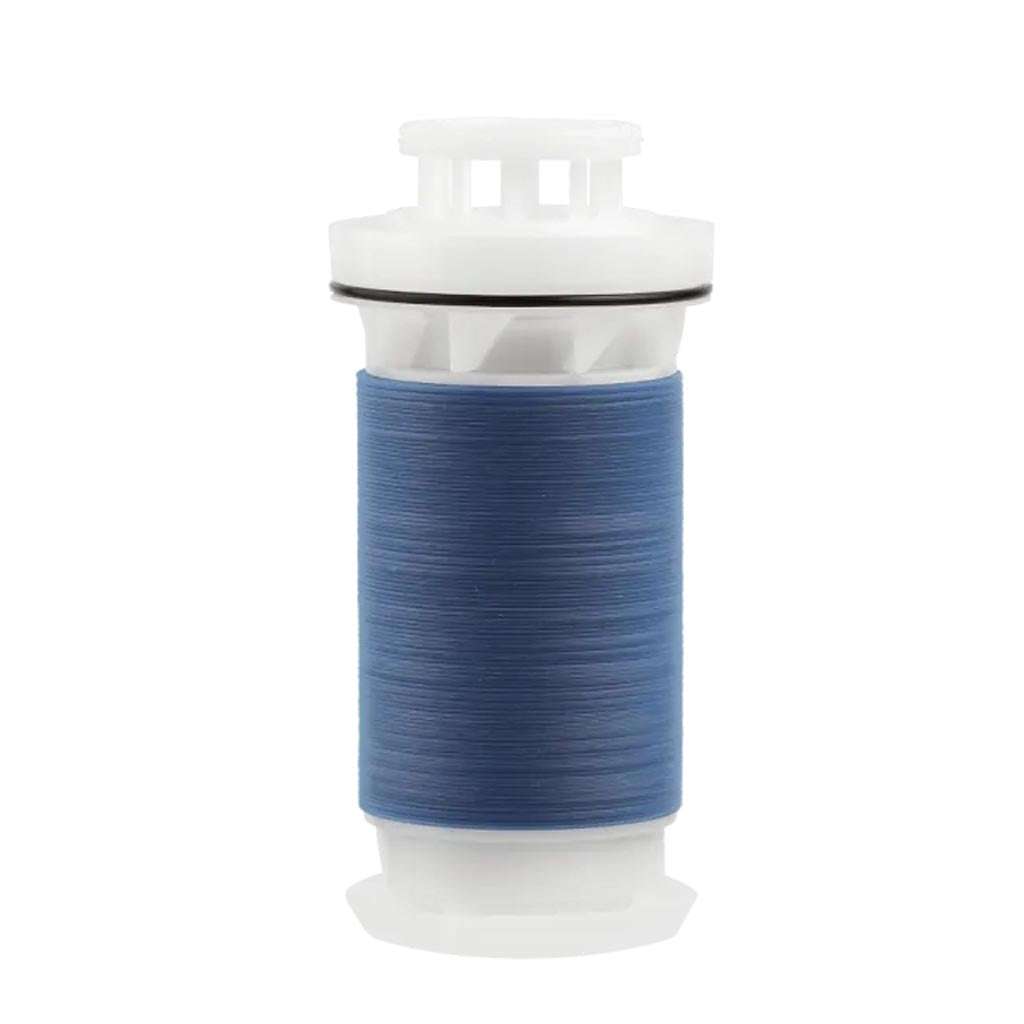

- Ultra-Fine Filtration: 40-micron polymer disc filters remove dirt and sediment for crystal-clear water.

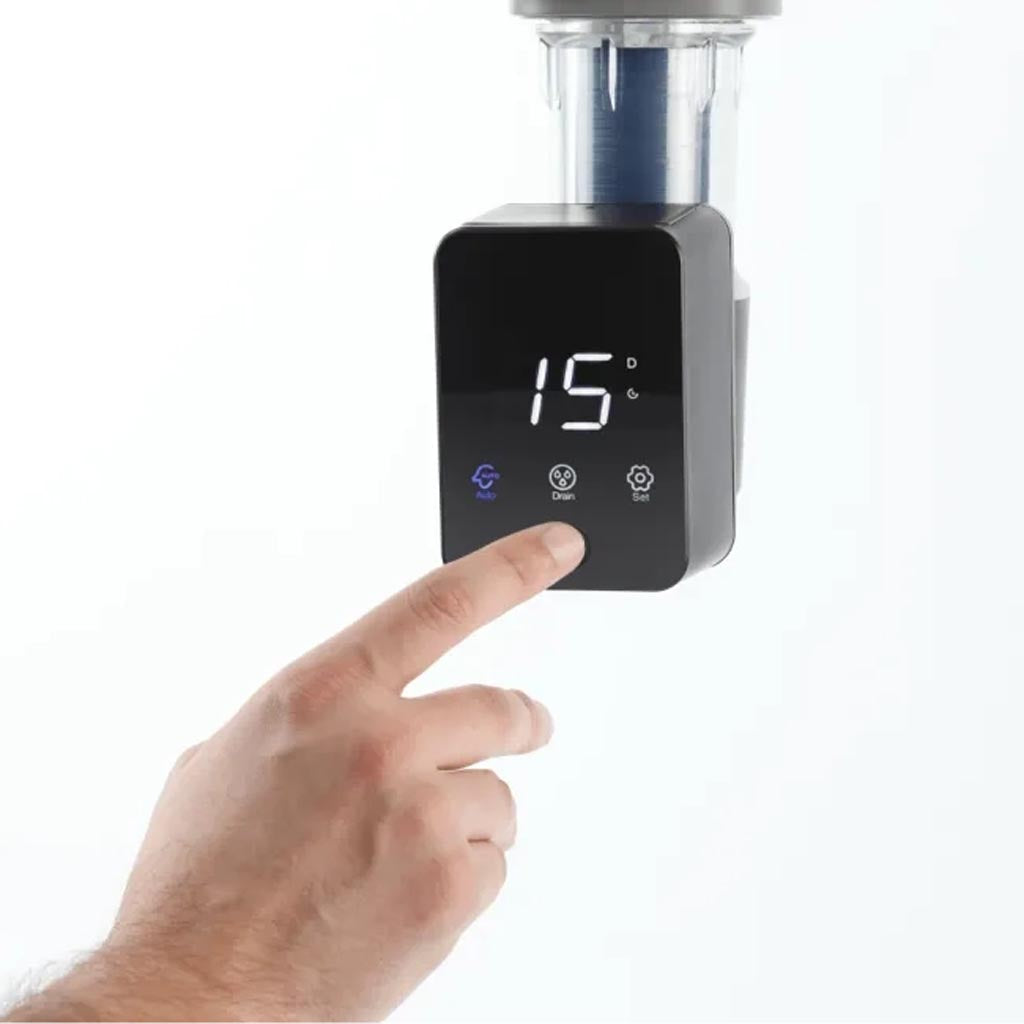

- Automatic Cleaning System: Schedule flush cycles or enable pressure-triggered backwashing for low-maintenance operation.

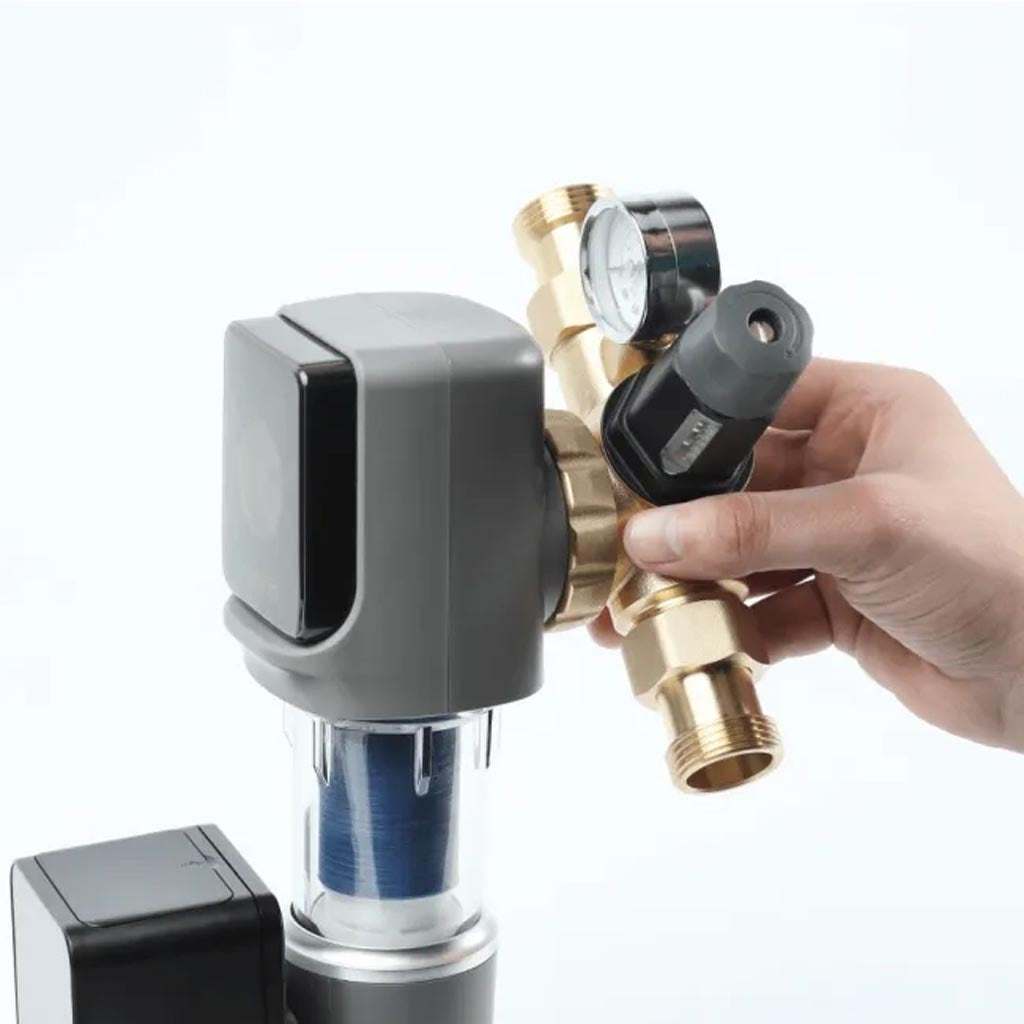

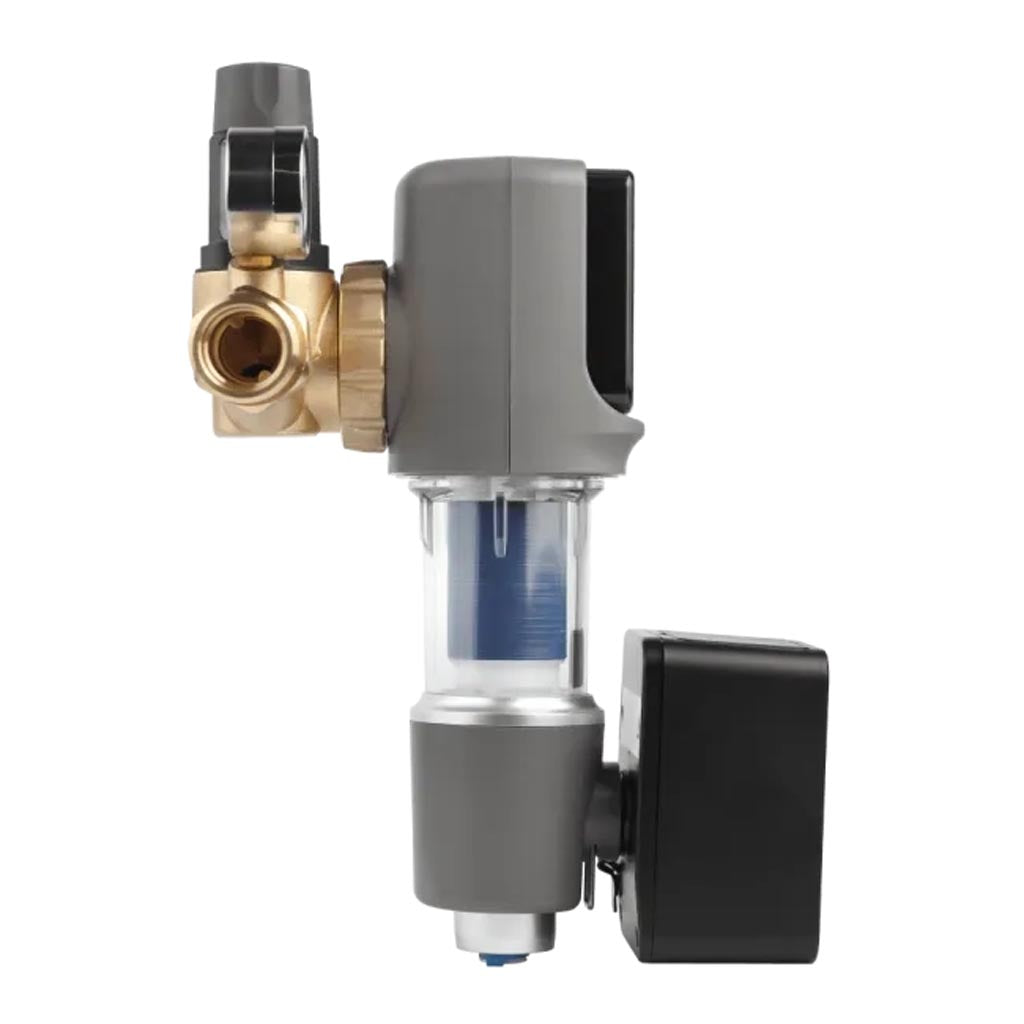

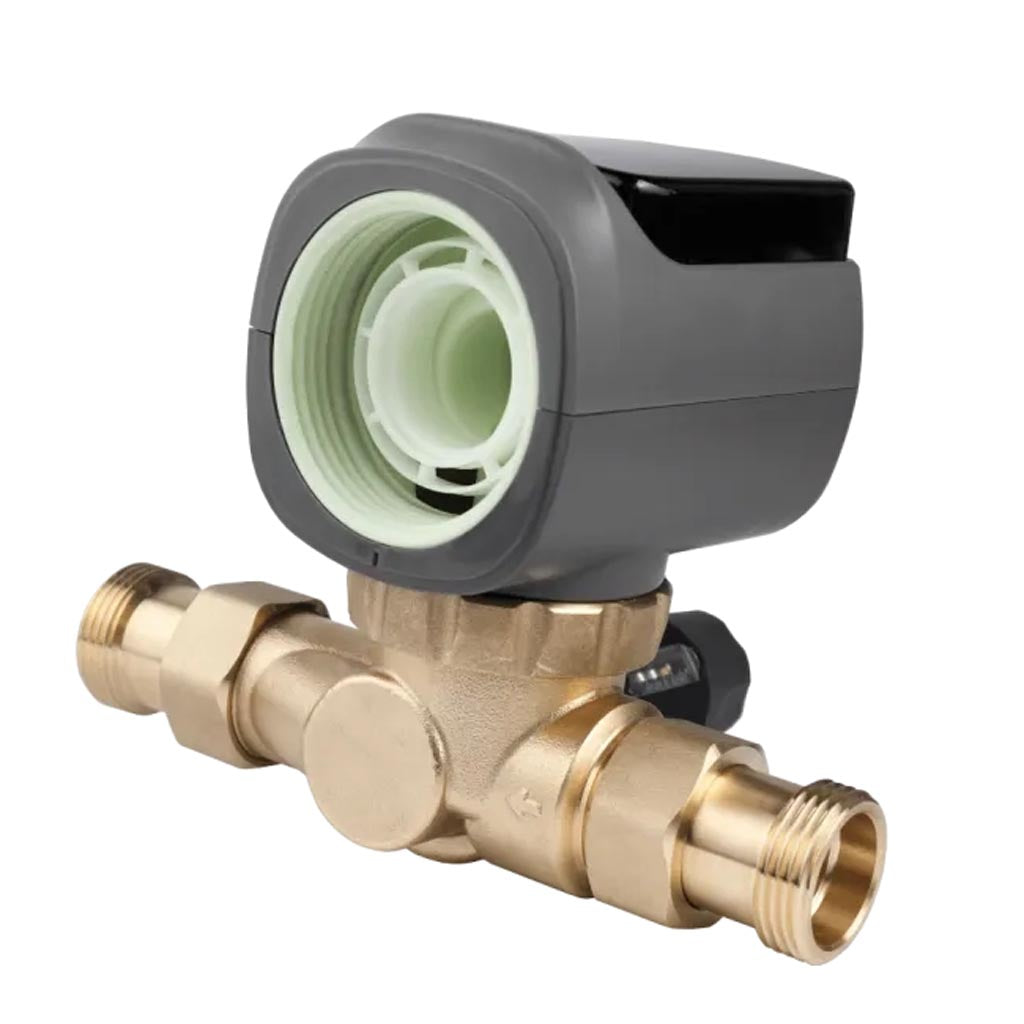

- Flexible Installation: Compact with a 360° connection module to fit horizontal or vertical pipelines.

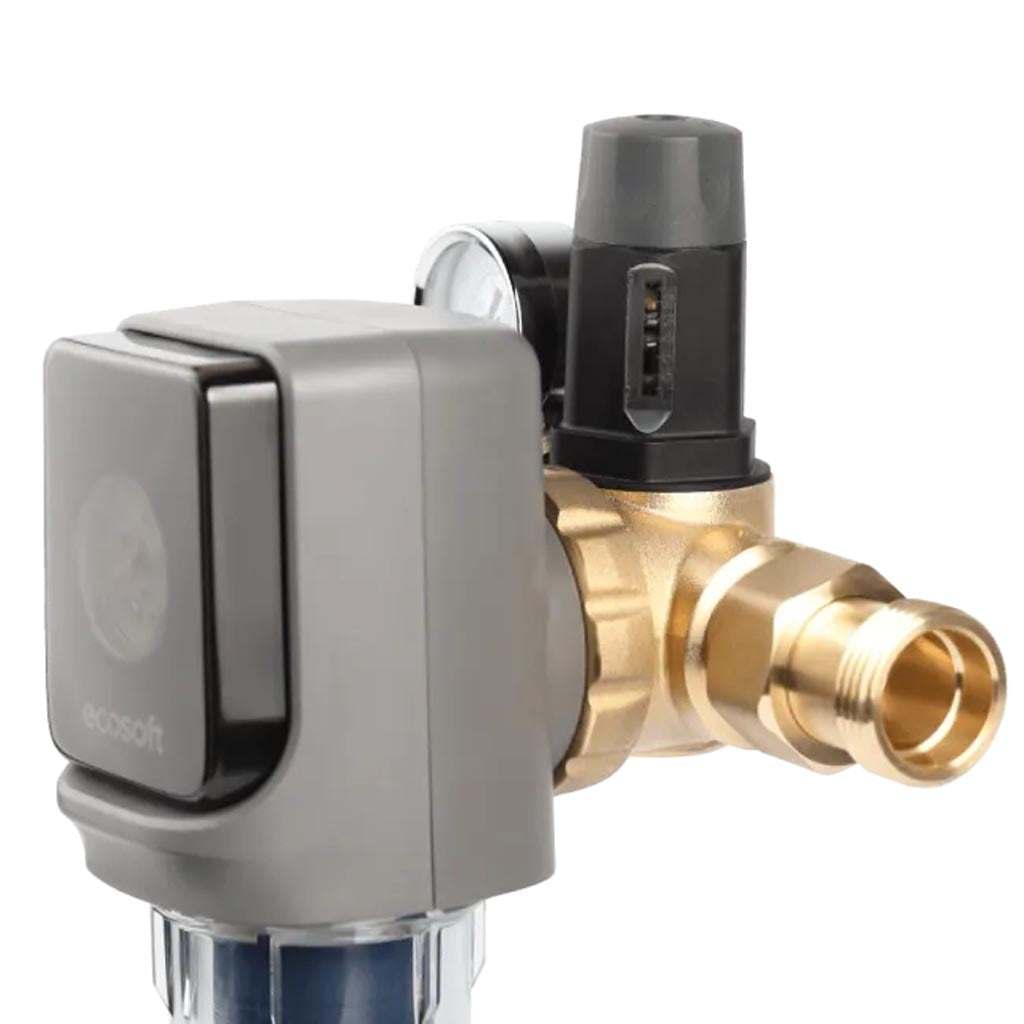

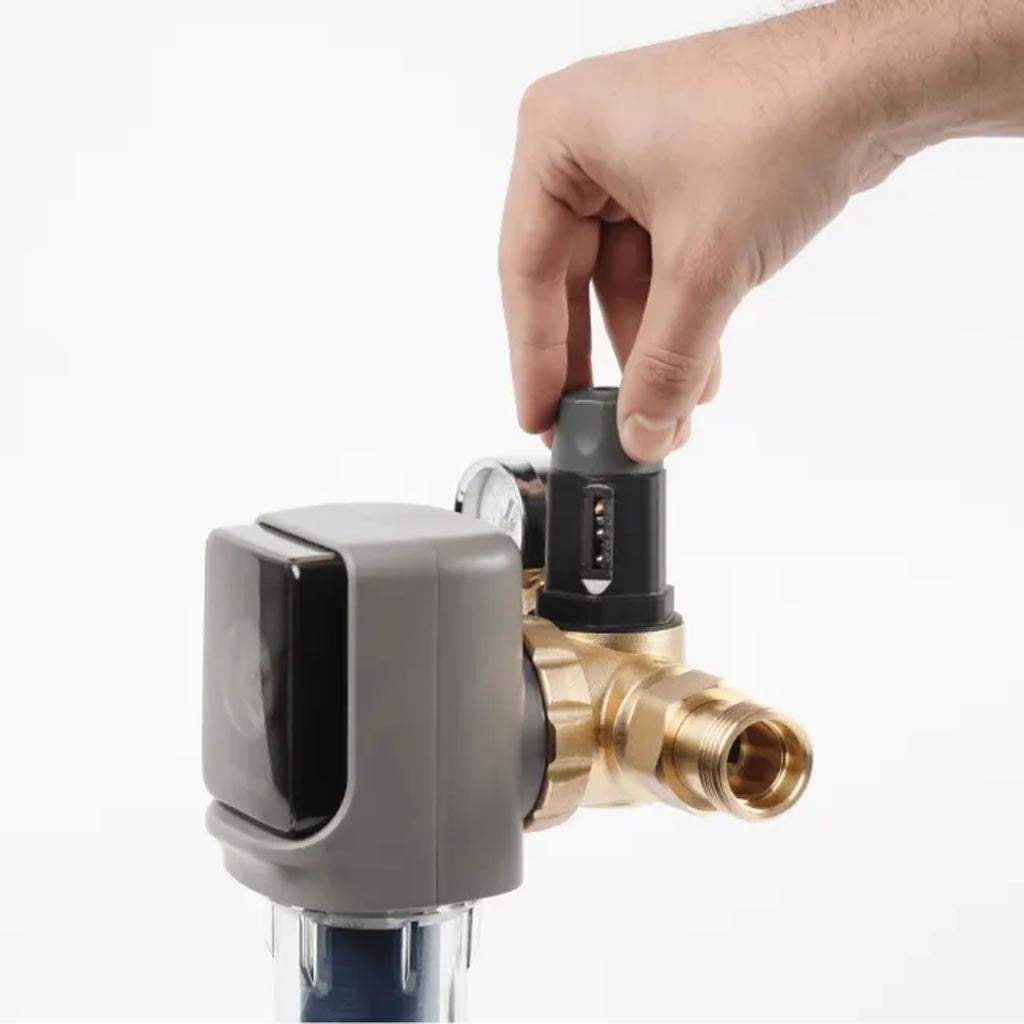

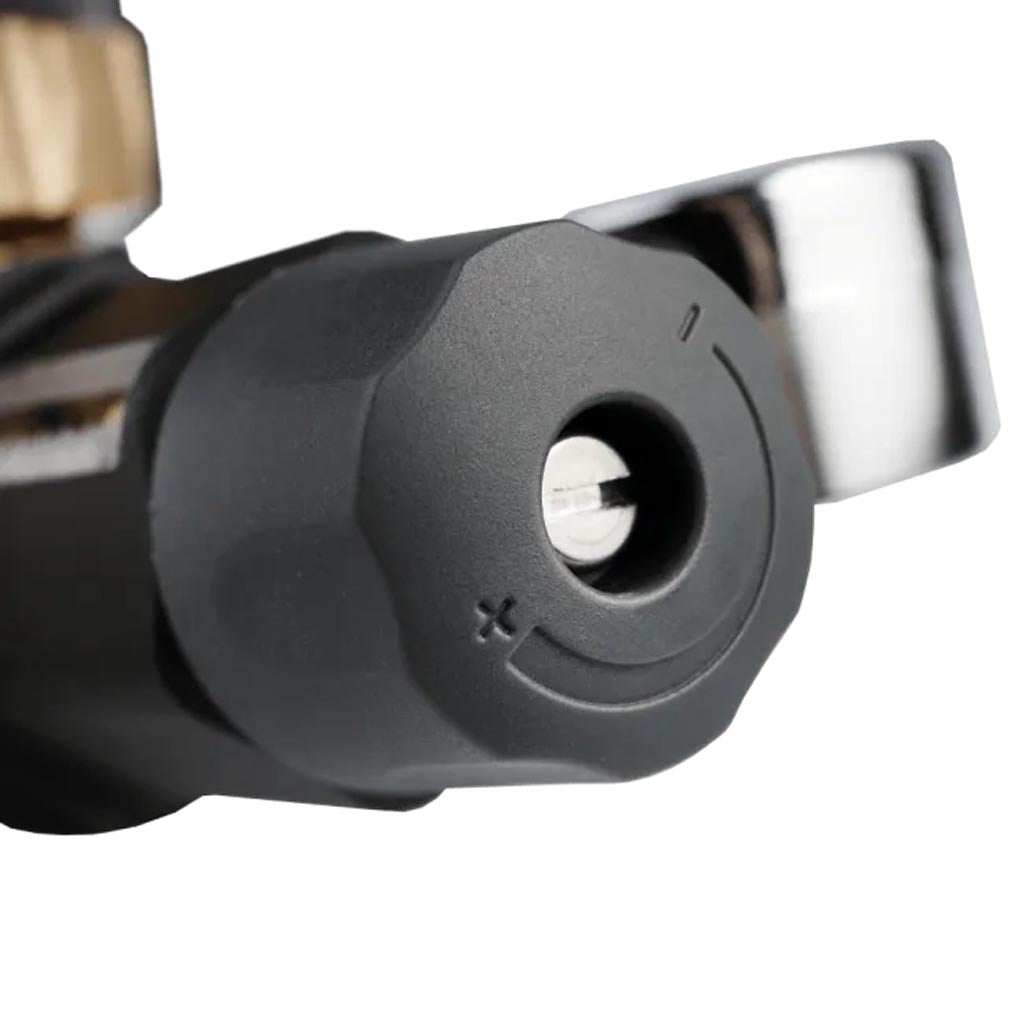

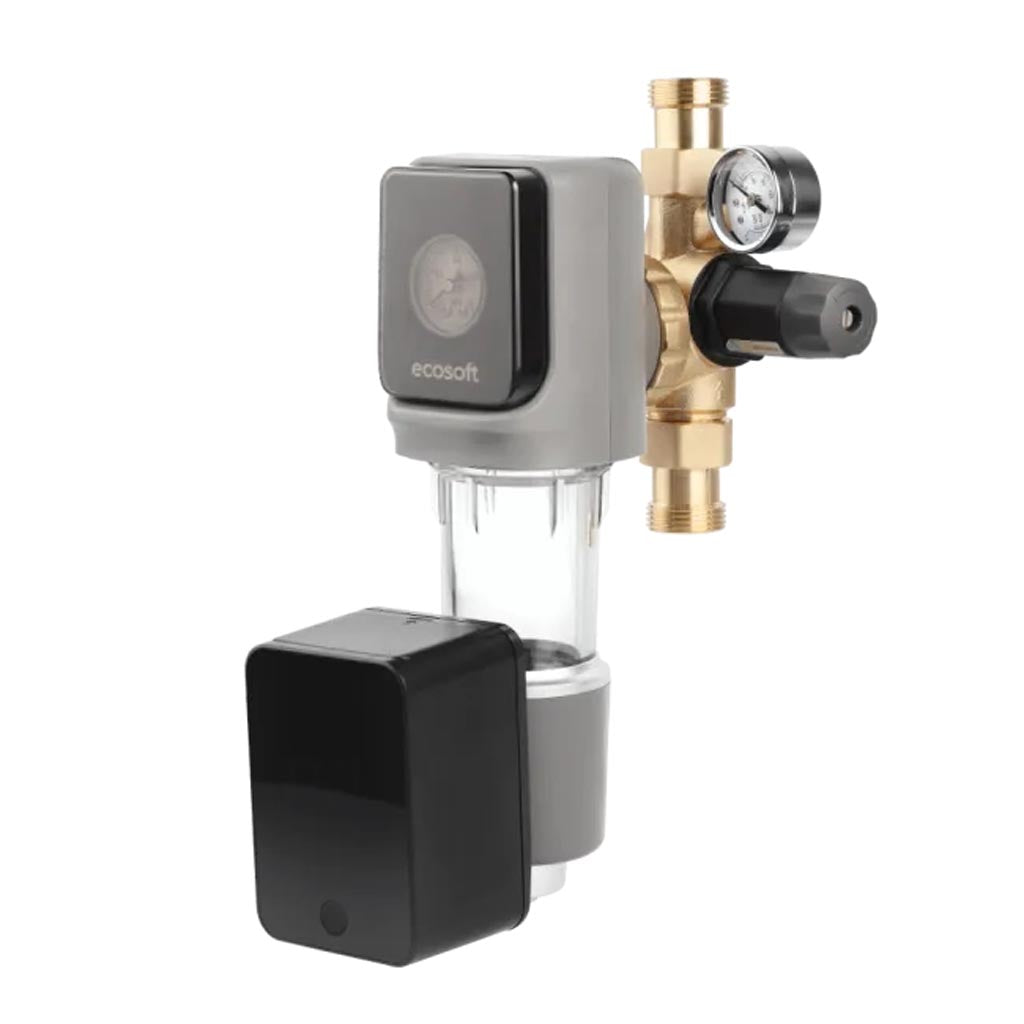

- Built-in Pressure Reducer: Protects your downstream appliances from damaging pressure spikes.
- Battery-Powered Control Module: Hassle-free installation without wiring and durable operation in all environments.
Technical Specifications
| Specification | Details |
|---|---|
| Flow Rate | 4,000 liters/hour |
| Filtration Accuracy | 40 µm |
| Operating Pressure Range | 1.5–10 bar |
| Working Temperature Range | 5°C (41°F) to 40°C (104°F) |
| Connection Type | 1" G thread with ¾" adapter |
| Cartridge Type | Washable polymer disc cartridge |
| Power Requirements | 5W, battery-powered control module |

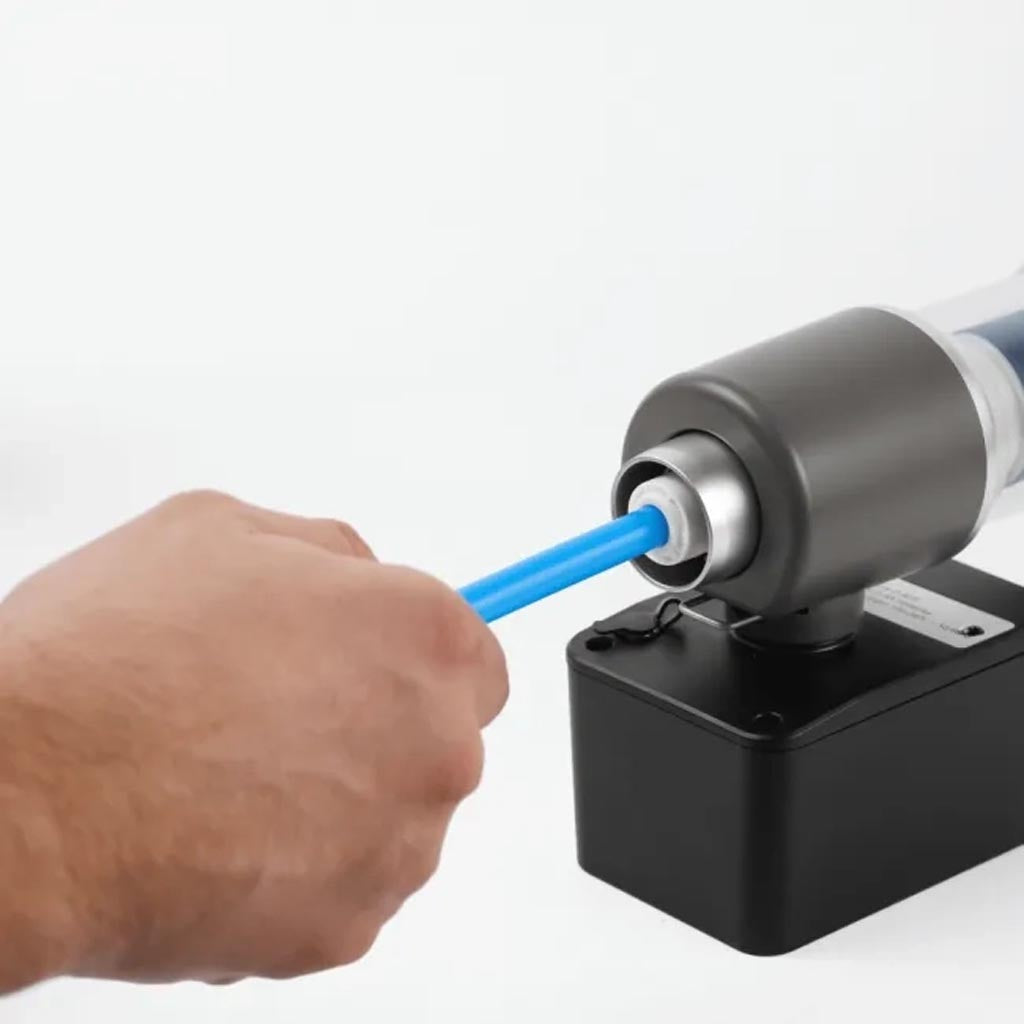

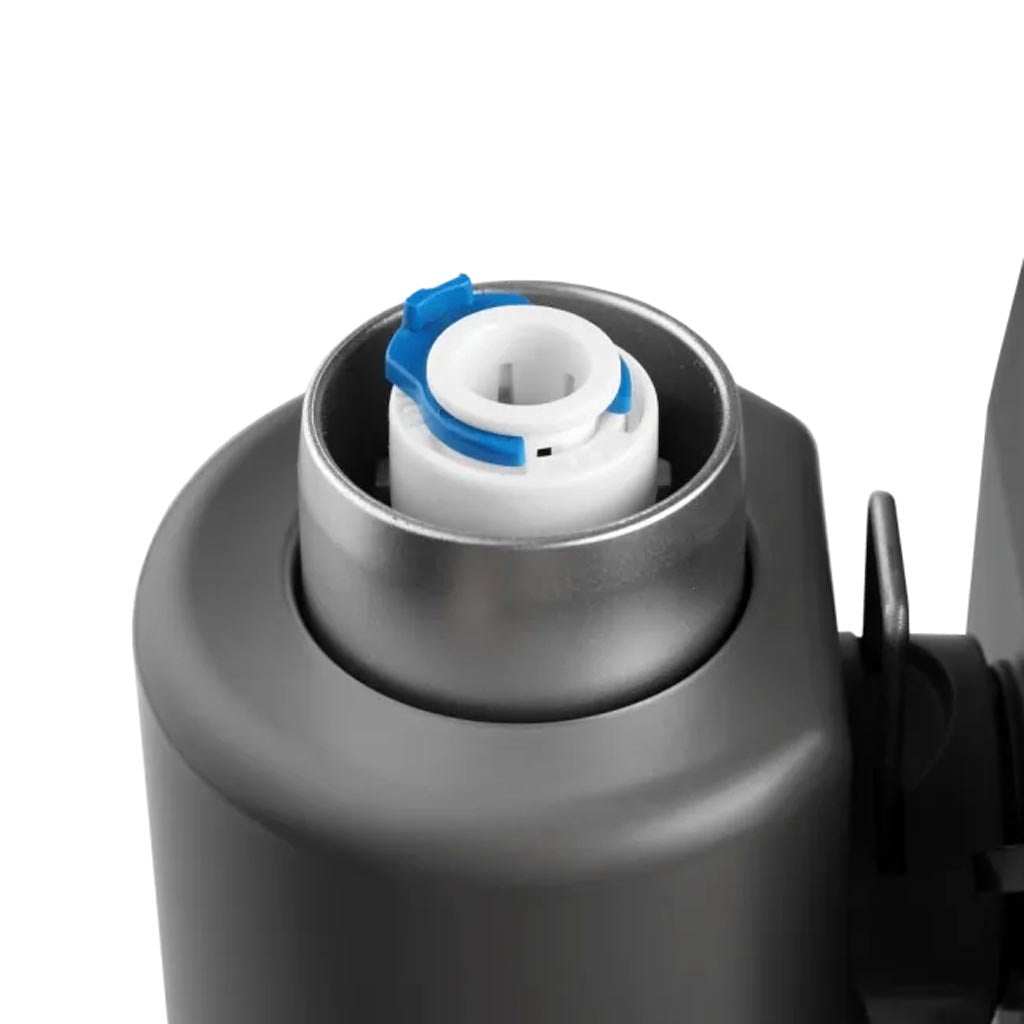

| Drain Line Connection | 3/8" collet |
| Dimensions | 310 × 185 × 150 mm |
Benefits

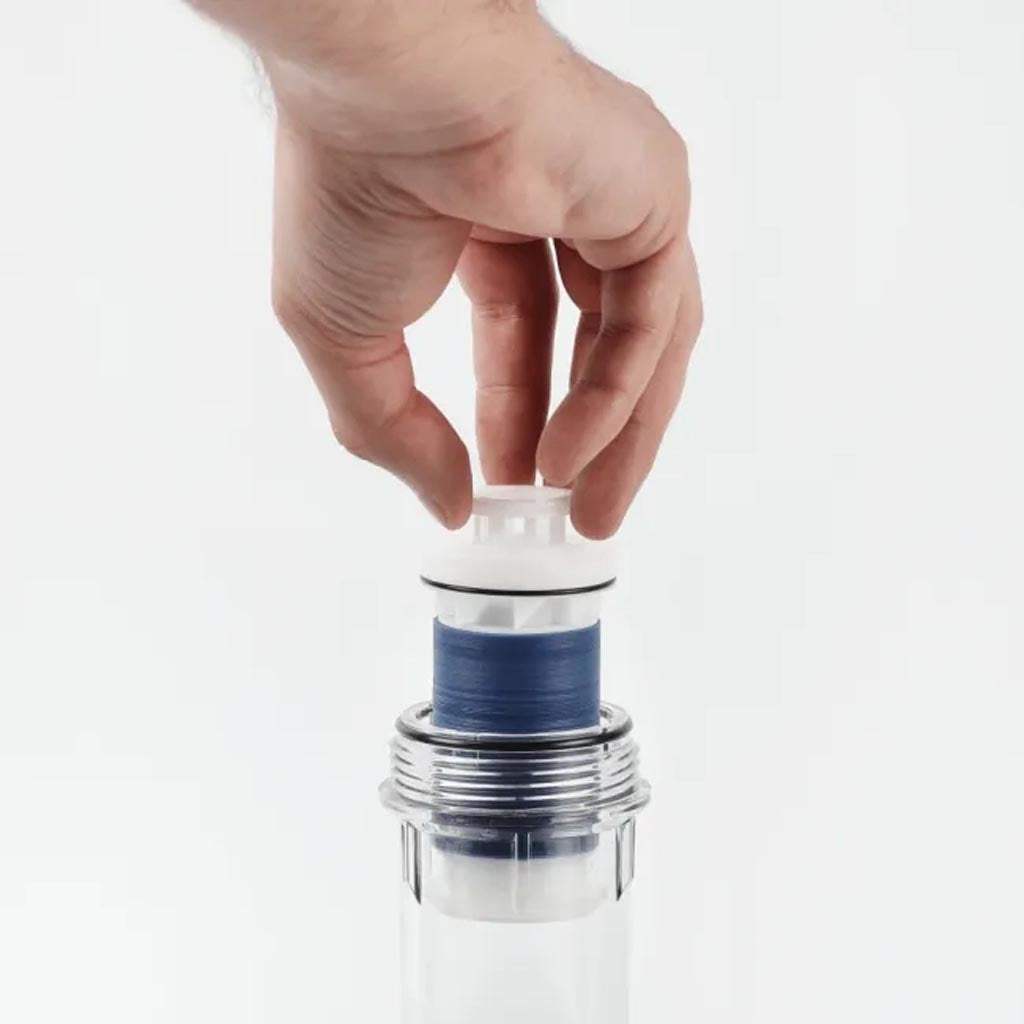

- Long-Lasting Performance: Washable polymer disc cartridge ensures minimal replacements and sustained efficiency.

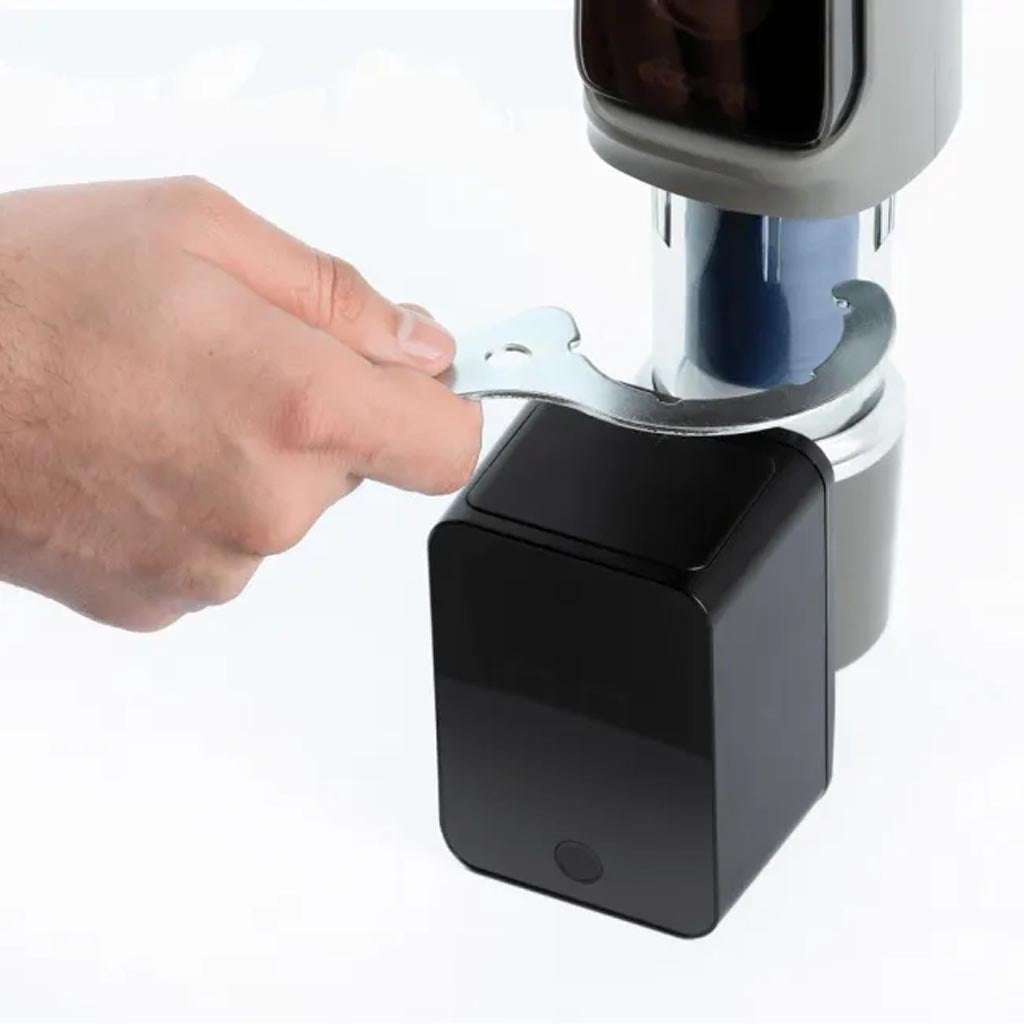

- Hassle-Free Maintenance: Automatic flushing eliminates manual cleaning while reducing maintenance effort.

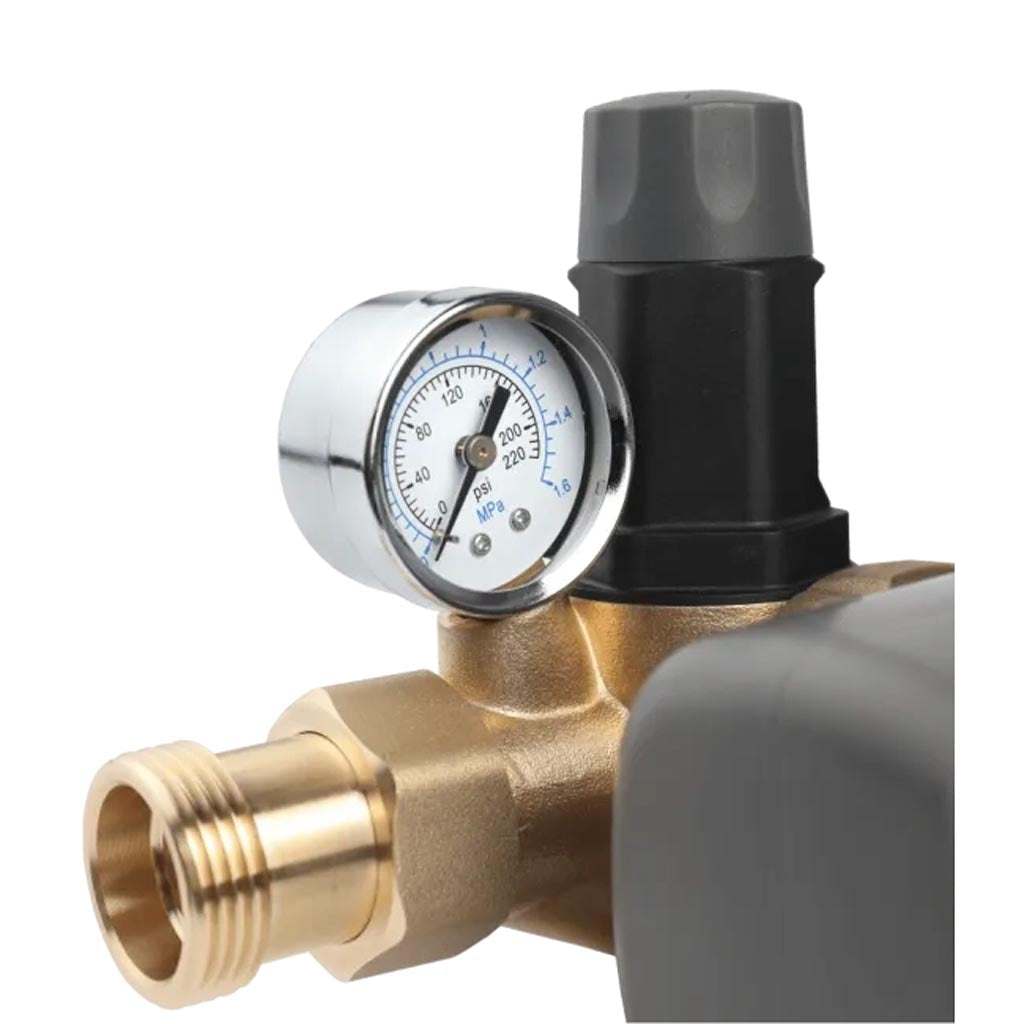

- Enhanced Equipment Protection: Pressure gauge prevents sudden pressure surges, protecting connected appliances.
- Cost-Effective Solution: Combines robust build and automatic features to save time and money on maintenance.
- Adaptable Design: Can be installed in almost any pipeline setup, thanks to its modular 360° connection.
Installed Use & Applications
The Sediment Disc Water Filter AR 1" is perfect for homes, offices, and industries needing reliable sediment filtration. Whether dealing with tap or well water, this filter thrives in demanding environments where dirt, sand, and rust are persistent challenges.
Why Choose the Sediment Disc Water Filter AR 1"?
Backed by advanced polymer disc filtration, automatic flushing, and an easy-to-install design, this filter is an ideal blend of efficiency, reliability, and convenience. Safeguard your water appliances and enjoy fresh, debris-free water every day.
Order the Sediment Disc Water Filter AR 1" today and experience optimized water filtration and reduced maintenance hassle!
