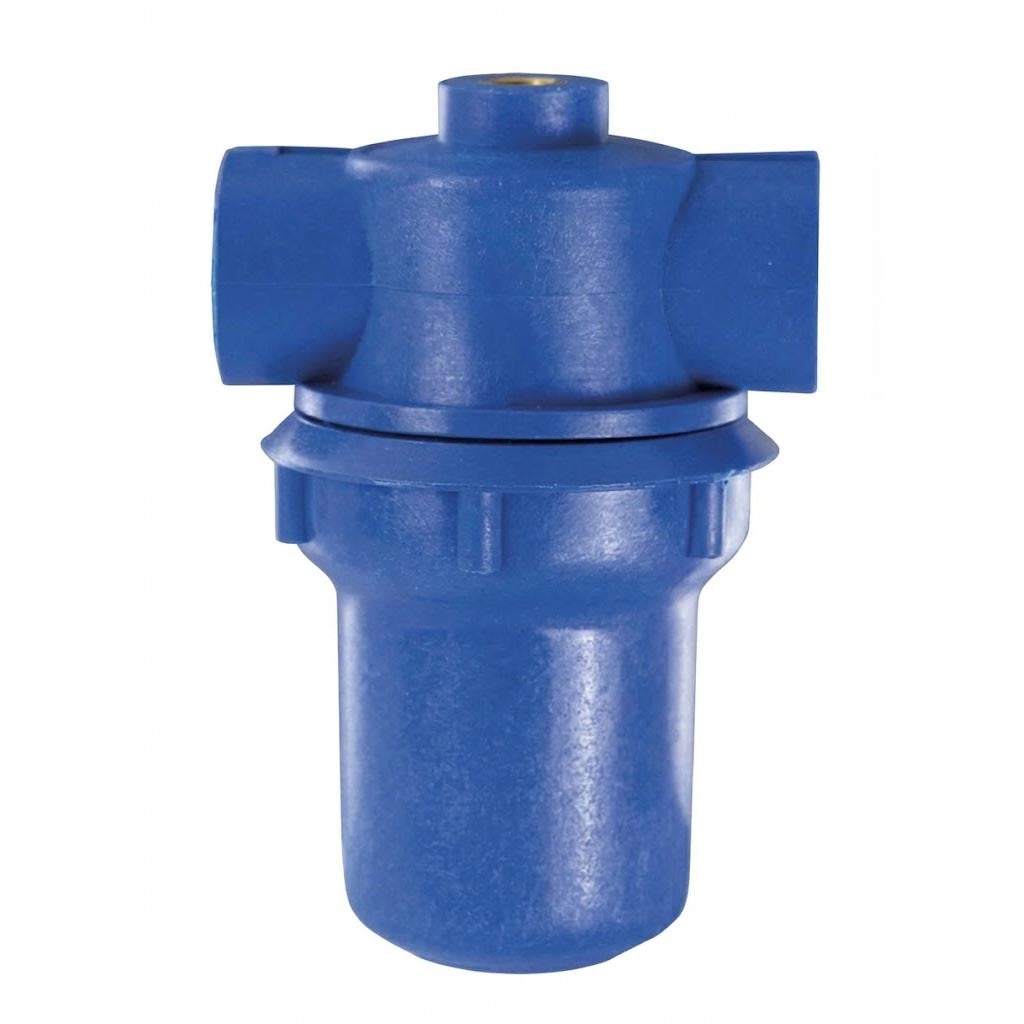

SFH-PB-1-1-1/4 : SPECTRUM FS- Size 1 Blue Filter Housing 1/4"

SKU: 100545
£41.50
Shipping calculated at checkout.

Technical Resources
Questions & Answers loading...

Product Description

Uniquely identifiable by their size (from just 3"), the miniature range of filter housings and sleeves are an effective solution for low flow rate applications. Colour coded nylon (N) mesh sleeves are used to target coarse visible particulate and can be washed for reuse multiple times; whilst the porous polyethylene (Y) sleeve is an ideal solution for finer filtration, down to 5 micron. Configurable in 3" and 6", with 1/4" or 1/2" ports, in opaque polypropylene or clear polyamide, the clear housings provide simple visual identification of when filter change out is required.

Material: Polypropylene
Configuration: 1 Cartridge (L: 1.5" x D: 0.5")
Port Size: 1/4"
Seal: Buna-N
Temperature Rating (°C): 40
Max Pressure (bar):8
Flow Rate (lpm): 5
End-Cap Compatibility: DOE

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the main application of the SFH-PB-1-1-1/4 filter housing?
The SFH-PB-1-1-1/4 filter housing is designed for low flow rate applications, providing effective filtration for coarse and fine particulates in various fluid systems.
What materials are used in the SFH-PB-1-1-1/4 filter housing?
The filter housing is made from durable polypropylene, with Buna-N seals, ensuring reliable performance in filtration processes.
What are the different filter sleeve options available for this filter housing?
This filter housing supports colour coded nylon mesh sleeves for coarse filtration, which can be washed and reused, and porous polyethylene sleeves for finer filtration down to 5 microns.
Can I see when it's time to replace the filter cartridge?
Yes, the clear polyamide version of the housing allows visual identification of when a filter change is required, making maintenance easier.
What are the size and port specifications of the SFH-PB-1-1-1/4 filter housing?
The housing features a 1/4-inch port size, with a configuration that includes 1 cartridge measuring 1.5 inches in length and 0.5 inches in diameter, suitable for low flow applications.
