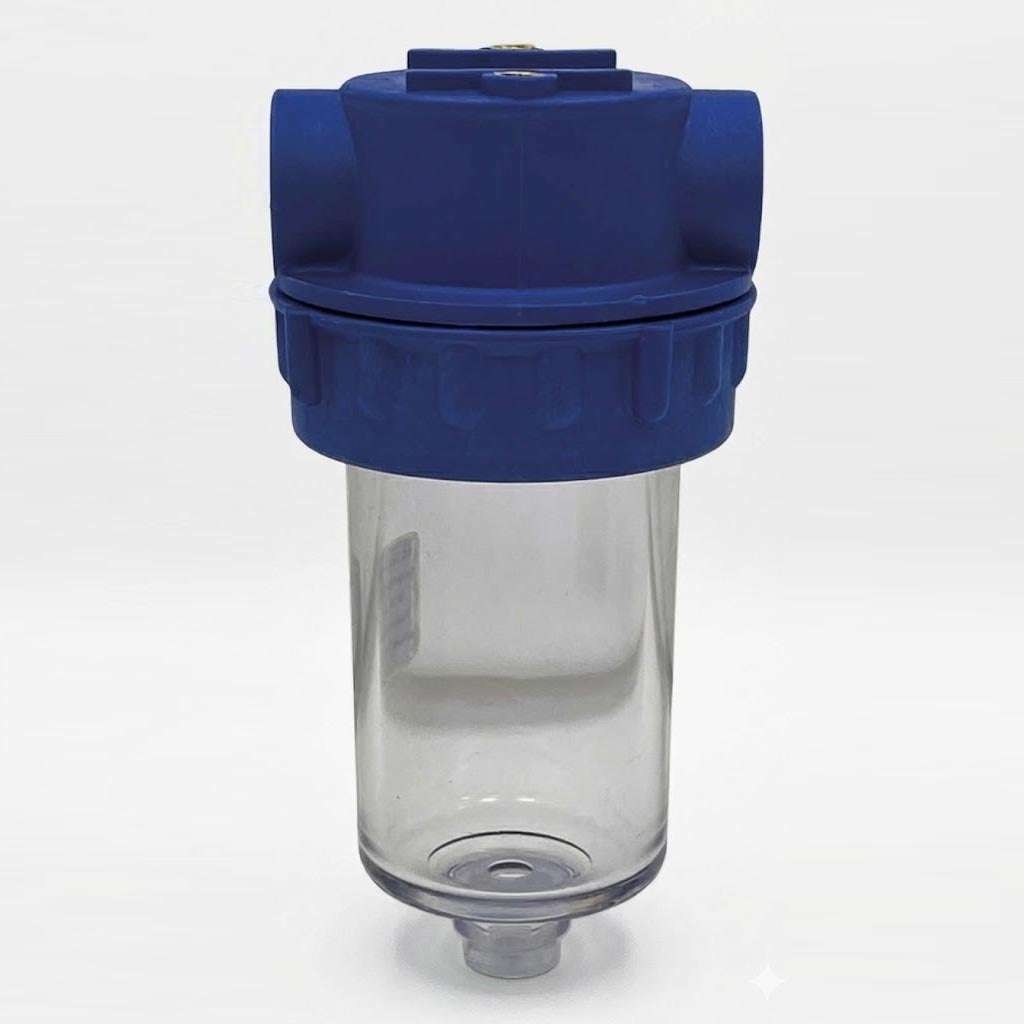

SFH-TC-1-1-1/4 : SPECTRUM FS- Size 1 Clear Filter Housing 1/4"
Product Description
Uniquely identifiable by their size (from just 3"), the miniature range of filter housings and sleeves are an effective solution for low flow rate applications. Colour coded nylon (N) mesh sleeves are used to target coarse visible particulate and can be washed for reuse multiple times; whilst the porous polyethylene (Y) sleeve is an ideal solution for finer filtration, down to 5 micron. Configurable in 3" and 6", with 1/4" or 1/2" ports, in opaque polypropylene or clear polyamide, the clear housings provide simple visual identification of when filter change out is required.
Material: Polyamide (Clear)
Configuration: 1 Cartridge (L: 1.5" x D: 0.5")
Port Size: 1/4"
Seal: Buna-N
Temperature Rating (°C): 40
Max Pressure (bar):10
Flow Rate (lpm): 5
End-Cap Compatibility: DOE
