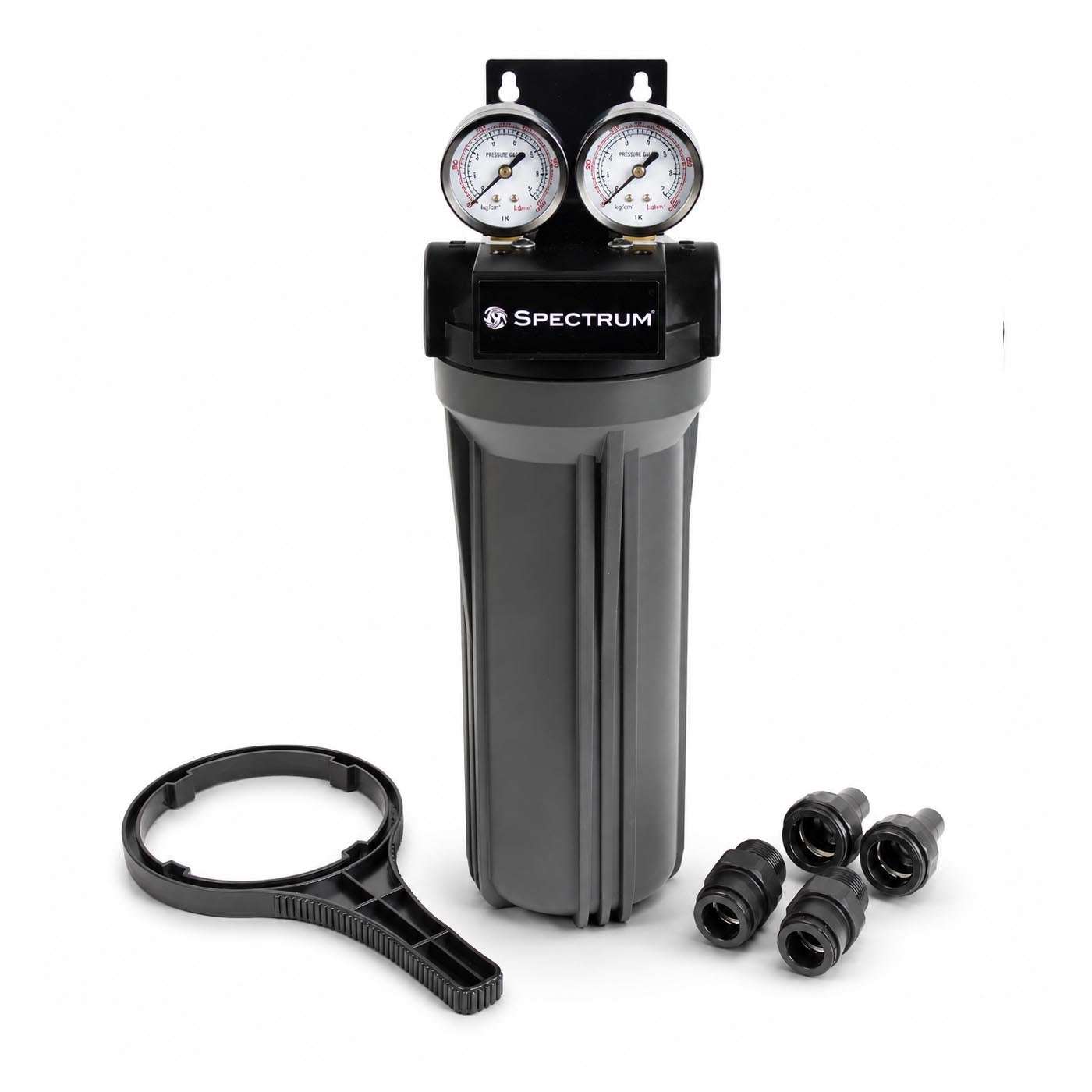

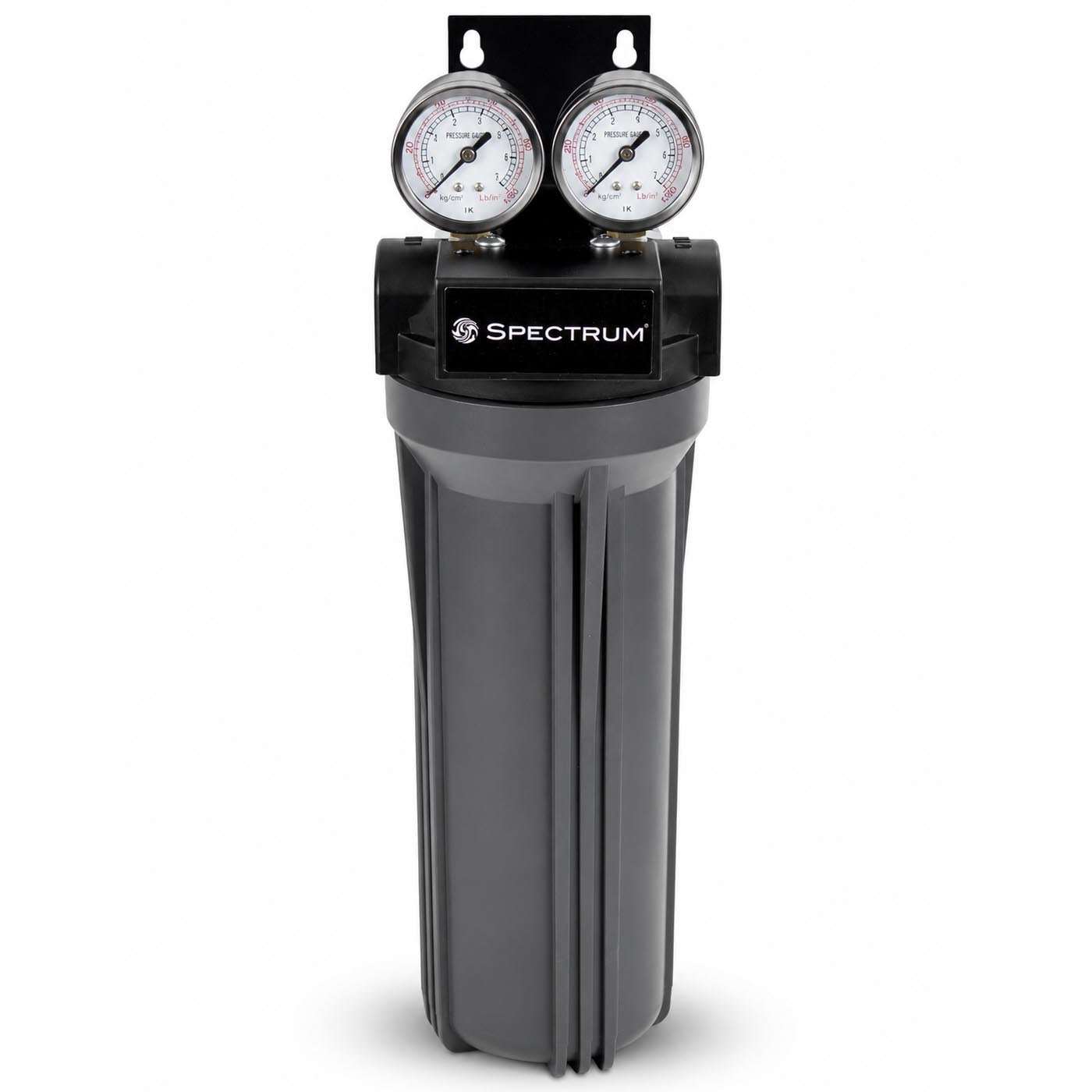

SPECTRUM Aqualyze Single 10" Water Filter Housing with Complete Adaptor Kit – SFHS-1-10SD

The SPECTRUM Aqualyze SFHS-1-10SD Single System is a compact, professional 10" water filter housing system designed for straightforward point-of-use and general water filtration applications. Supplied as a complete packaged system with the necessary accessories for installation and monitoring, it provides a convenient solution where a single filtration stage is required.

Manufactured with a durable polypropylene black head and sump, the SFHS-1-10SD combines a lightweight, practical design with excellent cartridge versatility. The housing accepts 9¾", 9⅞" and 10" compatible cartridges and supports DOE, AA and CG end-cap configurations, allowing a wide range of sediment, carbon and specialist water treatment cartridges to be installed.

Ideal for Single-Stage Water Filtration

SPECTRUM's SFH single housing systems are designed to provide an effective one-stage filtration process, allowing a specific water quality issue to be targeted with the appropriate cartridge. Depending on the cartridge selected, applications can include the removal or reduction of bulk solids, sediment or organics.

The ½" BSP port connections make the small-diameter system particularly suitable for lower-flow installations where a compact filtration assembly is preferred. The complete adaptor kit further simplifies connection into different pipework arrangements.

Complete Adaptor Kit

The SFHS-1-10SD is supplied with adaptors allowing the standard ½" connection to be adapted to:

¼" push fit
⅜" push fit
½" push fit
15 mm push fit

This makes the system highly versatile for installation into domestic, commercial and equipment-feed water lines. The manufacturer's specification also identifies SFH-ORING-SD as the replacement O-ring for the 10SD housing.

Key Features & Benefits

Single 10" cartridge configuration for targeted filtration
Durable polypropylene construction
½" BSP inlet/outlet ports
Supplied with a complete adaptor kit
Compatible with AA, DOE and CG end caps
Suitable for a broad selection of standard 10" filter cartridges
Buna-N O-ring seal
Maximum operating temperature of 42°C
Maximum pressure rating approximately 7 bar
Compact, lightweight construction for easier installation
Packaged filtration system designed to simplify installation and monitoring
Suitable for sediment, carbon and specialist treatment cartridges depending on application

Technical Specification

Specification	SFHS-1-10SD
Product Code	SFHS-1-10SD
Brand	SPECTRUM
Range	Aqualyze / SFH System
Configuration	1 Cartridge
Housing Size	Small Diameter 10"
Material	Polypropylene
Port Size	½" BSP
Seal	Buna-N
Temperature Rating	4–42°C
Maximum Pressure	7.0 bar*
Flow Rate	Up to 25 lpm**
End-Cap Compatibility	AA / DOE / CG
Adaptor Options Supplied	¼", ⅜" & ½" Push Fit; 15 mm Push Fit
Replacement O-Ring	SFH-ORING-SD

* Manufacturer datasheet states 6.9 bar, conventionally rounded to 7.0 bar.

** Actual achievable flow depends on the cartridge installed. The manufacturer's 10SD flow data varies by cartridge type, so cartridge selection and required filtration performance should be considered when sizing the system.

Compact 10" Filtration System with Flexible Cartridge Choice

The SPECTRUM SFHS-1-10SD Aqualyze Single System offers a practical way to incorporate a replaceable 10" cartridge into a water treatment installation without assembling individual housing components and connections separately. Its combination of ½" BSP connections, complete adaptor kit and AA / DOE / CG cartridge compatibility makes it a versatile choice for domestic, commercial and equipment protection applications.

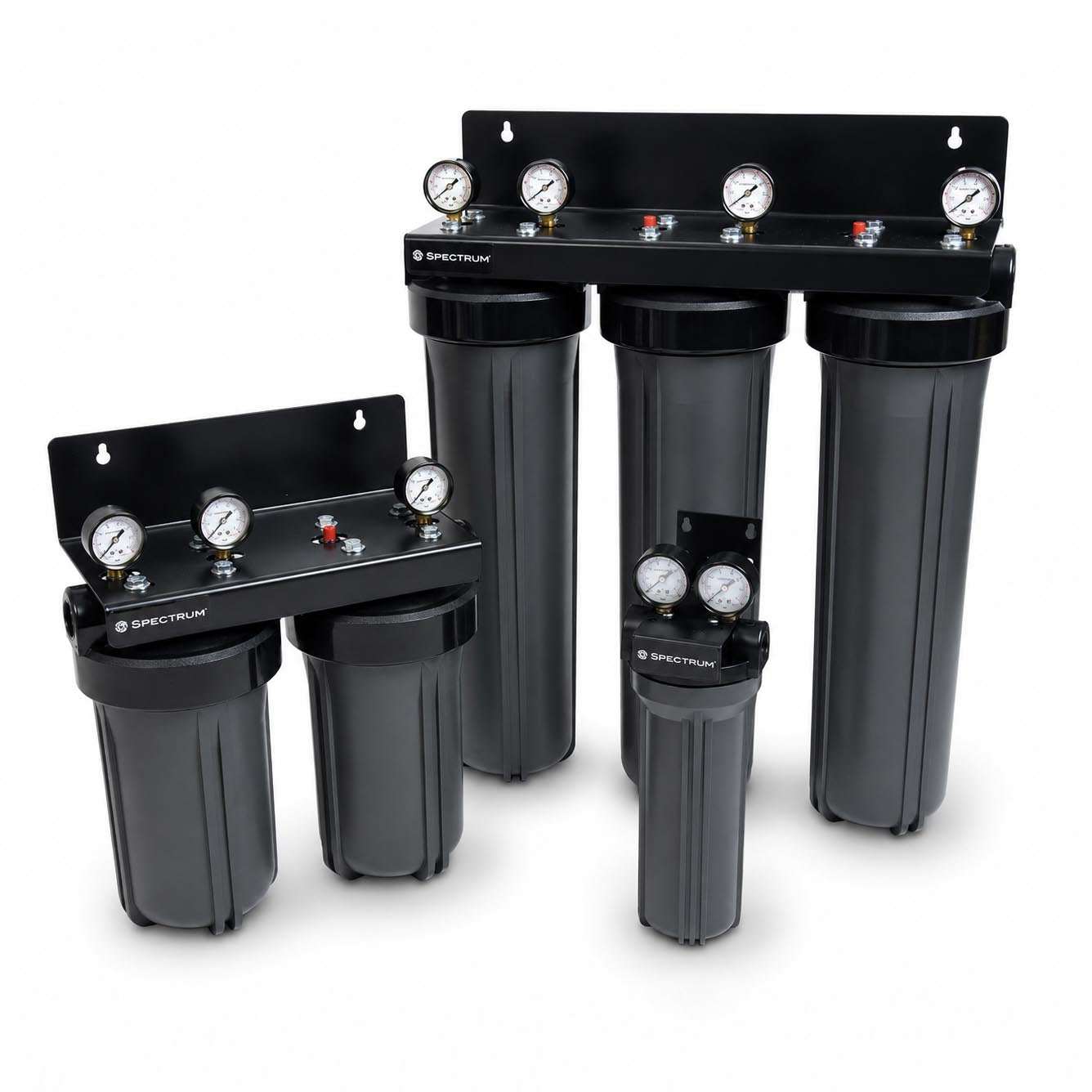

For applications requiring more than one treatment stage, SPECTRUM also offers double and triple SFH configurations, allowing pre-filtration and additional treatment cartridges to be combined into a filtration cascade.
