Name: SFHS-2-20LD : SPECTRUM Aqualyze Double System Large Diameter 20" with Complete Adaptor Kit (Copy)
Brand: SPECTRUM
SKU: 110263 | SFHS-2-20LD
Price: 273.0 GBP
Availability: InStock

Question 1

What is the SPECTRUM Economic Three Stage Housing System 10inch used for?

Accepted Answer

The SPECTRum Economic Three-Stage Housing System is a pre-assembled, space-saving water filtration system designed for residential, commercial, and light industrial use.

By combining three filters into one unit, it provides multi-stage water treatment without needing to plumb multiple housings together.

Here’s how it's typically used and configured:

Progressive Multi-Stage Filtration
The system cleans water in stages, tackling different contaminants at each step. A common setup includes:

Stage 1 (Pre-Filtration): A sediment filter (e.g., 50 to 5 microns) traps sand, rust, scale, and other large particles.

Stage 2 (Chemical Treatment): A carbon cartridge reduces chlorine, volatile organic compounds (VOCs), bad tastes, and odours.

Stage 3 (Final Filtration): A fine sediment filter (e.g., 1 micron), a specialized resin cartridge (for deionisation or scale), or a microbiological barrier provides the final polish.

Protecting Downstream Systems
This three-stage setup is effective at extending the life of more delicate or expensive filters (like UV sterilizers or reverse osmosis systems) by removing clogging sediments and damaging chlorine first.

Treating Private Water Supplies
It is often used for private water sources like boreholes, wells, or springs. These sources often require robust, multi-stage treatment (e.g., sediment removal followed by iron reduction) before the water is used.

Key System Specifications

Cartridge Compatibility: Fits standard 10-inch double open-ended (DOE) cartridges.

Port Configurations: Available in multiple port sizes (¼” to ¾” BSP) to match different flow rates and pipes.

Pressure & Temperature: Rated for pressures up to 8.6 bar (polypropylene) or 6.9 bar (clear styrene) and operates safely between 4°C and 40°C.

Installation Readiness: Includes a mounting bracket, sump spanner, and integrated pressure gauges to monitor when cartridges need replacement.

Question 2

What makes the SPECTRUM Aqualyze Triple System a reliable choice for high-volume water filtration?

Accepted Answer

The SPECTRUM Aqualyze Triple System features three large 10-inch cartridges, providing high-capacity and efficient contaminant removal, making it ideal for demanding applications. Its durable polypropylene construction and consistent flow rate up to 25 liters per minute ensure reliable, high-performance filtration.

Question 3

How easy is it to install the SPECTRUM Economic Three Stage Housing System 10inch?

Accepted Answer

This filtration system includes a complete adaptor kit, designed for quick and straightforward installation. Its 1-inch port size and compatibility with various end caps like AA, DOE, and CG make setup flexible and hassle-free.

Question 4

What are the key features of the SPECTRUM Aqualyze Triple System in terms of durability and materials?

Accepted Answer

Constructed from FDA-compliant polypropylene, the SPECTRUM Aqualyze Triple System is lightweight yet highly durable. It withstands temperatures up to 42°C and pressure of up to 7.0 bars, ensuring long-lasting performance in challenging environments.

Question 5

Can the SPECTRUM Triple System handle different types of water contaminants?

Accepted Answer

Yes, with its triple-cartridge setup and compatibility with various filter cartridges, the system is effective at removing bulk solids, sediment, and fine contaminants, making it suitable for a wide range of water purification needs.

Question 6

What are the specifications and compatibility features of the SPECTRUM Aqualyze Triple System?

Accepted Answer

The system features three 10-inch by 4.5-inch polypropylene housings, a 1-inch port size, Buna seals, and end-cap compatibility with AA, DOE, and CG types. It supports a flow rate of up to 25 liters per minute and operates efficiently under pressure up to 7.0 bars.

Question 7

What are the main benefits of the SPECTRUM Aqualyze Double System 10" for my water filtration needs?

Accepted Answer

The SPECTRUM Aqualyze Double System 10" offers efficient dual-stage filtration in a compact design, making it ideal for spaces with limited room. Its durable polypropylene construction and flexible end-cap compatibility ensure reliable performance and easy integration into various setups.

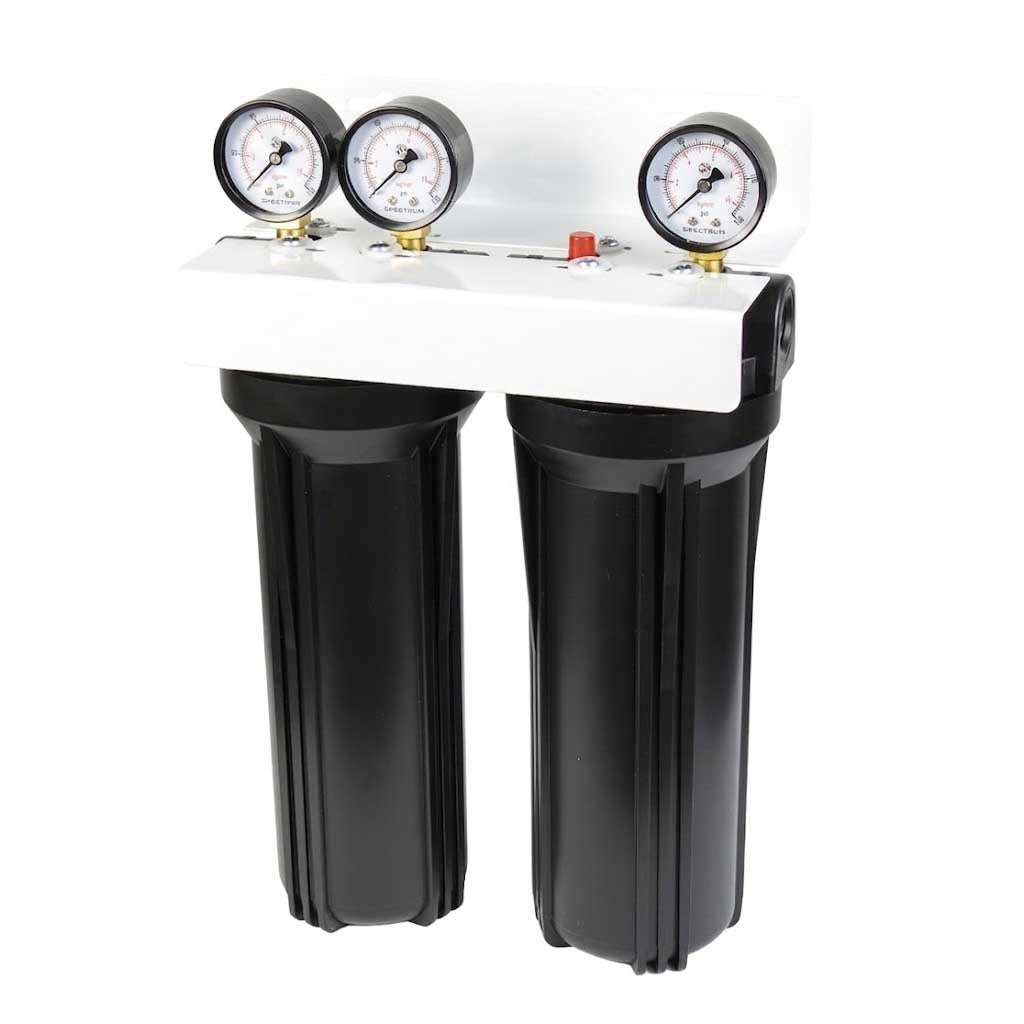

Question 8

How easy is it to install the SFHS-2-10SD water filtration system?

Accepted Answer

The system comes with a complete adaptor kit and features a 1/2-inch port size with Buna seals, making installation straightforward and leak-proof. Its user-friendly design allows for quick connection to existing plumbing systems without any hassle.

Question 9

Can I use different types of cartridges with this filtration system?

Accepted Answer

Yes, the SFHS-2-10SD supports AA, DOE, and CG end caps, providing compatibility with a variety of filter cartridges to meet your specific water purification needs.

Question 10

What are the specifications of the SFHS-2-10SD system in terms of flow rate and pressure?

Accepted Answer

This water filtration system delivers a steady flow rate of 25 liters per minute and can operate under a maximum pressure of 7.0 bar, ensuring consistent water flow and reliable performance in different conditions.

Question 11

Is the SFHS-2-10SD suitable for residential or industrial applications?

Accepted Answer

Designed for smaller-scale commercial, industrial, and residential applications, the SFHS-2-10SD combines high-quality filtration performance with a compact footprint, making it versatile for various settings.

Question 12

What are the main benefits of the SPECTRUM Aqualyze Double System for water filtration?

Accepted Answer

The SPECTRUM Aqualyze Double System offers dual-stage filtration with two large 10-inch cartridges, providing efficient and reliable removal of contaminants. Built with durable polypropylene, it ensures long-lasting performance for residential and commercial water filtration needs.

Question 13

How easy is it to install the SPECTRUM Aqualyze Double System?

Accepted Answer

The system comes with a complete adaptor kit, including 22mm and 28mm fittings, making installation quick and hassle-free. Its 1-inch port size and Buna seals ensure a leak-free setup and compatible integration with various plumbing setups.

Question 14

What types of cartridges are compatible with this double system?

Accepted Answer

The SPECTRUM Aqualyze Double System supports AA, DOE, and CG end caps, allowing you to choose and customize your filtration cartridges based on your specific water purification requirements.

Question 15

What are the technical specifications of the SFHS-2-10LD system?

Accepted Answer

Made from FDA-compliant polypropylene, it features two 10-inch x 2.5-inch cartridges, 1-inch port size, Buna seals, a maximum pressure of 7.0 bar, and a temperature capacity of up to 42°C, with a flow rate of 25 liters per minute.

Question 16

Is the SPECTRUM Aqualyze Double System suitable for high-capacity applications?

Accepted Answer

Yes, this system is ideal for high-capacity applications in residential, commercial, and light industrial settings, providing efficient cleaning and long-term performance with its robust design and dual-cartridge setup.

Question 17

What are the main benefits of using the SPECTRUM Aqualyze Double System (SFHS-2-20LD)?

Accepted Answer

The SFHS-2-20LD offers high-capacity double filtration with large 20-inch cartridges, durable polypropylene construction, and easy installation with a complete adaptor kit. It ensures reliable, efficient water purification suitable for high-demand settings.

Question 18

How does the large diameter of the cartridges improve filtration performance?

Accepted Answer

The 20-inch diameter cartridges provide a larger surface area for filtration, enabling more effective removal of sediment, contaminants, and particulates, resulting in cleaner water and higher flow rates.

Question 19

Can the SFHS-2-20LD system be used with different types of filter cartridges?

Accepted Answer

Yes, the system is compatible with AA, DOE, and CG end caps, allowing you to customize your filtration setup with various cartridge types to meet specific purification needs.

Question 20

What are the installation requirements for the SFHS-2-20LD filtration system?

Accepted Answer

The system includes a complete adaptor kit and features a 1-inch port size with Buna seals for a leak-free setup. It can be easily integrated into various plumbing configurations in residential, commercial, or industrial applications.

Question 21

What are the key specifications I should know before purchasing the SFHS-2-20LD?

Accepted Answer

Key specifications include its construction from FDA-grade polypropylene, a maximum pressure of 7.0 bar, temperature resistance up to 42°C, flow rate of 25 liters per minute, and compatibility with 20-inch cartridges and AA, DOE, or CG end caps.

Feature	Specification
Material	Polypropylene
Configuration	2 Cartridges (20" x 4.5")
Port Size	1"
Seal	Buna
Temperature Rating	Up to 42°C
Max Pressure	7.0 bar
Flow Rate	25 liters per minute
End-Cap Compatibility	AA / DOE / CG
Adaptor Kit	22mm, 28mm

Feature	Specification
Material	Polypropylene
Configuration	2 Cartridges (20" x 4.5")
Port Size	1"
Seal	Buna
Temperature Rating	Up to 42°C
Max Pressure	7.0 bar
Flow Rate	25 liters per minute
End-Cap Compatibility	AA / DOE / CG
Adaptor Kit	22mm, 28mm
