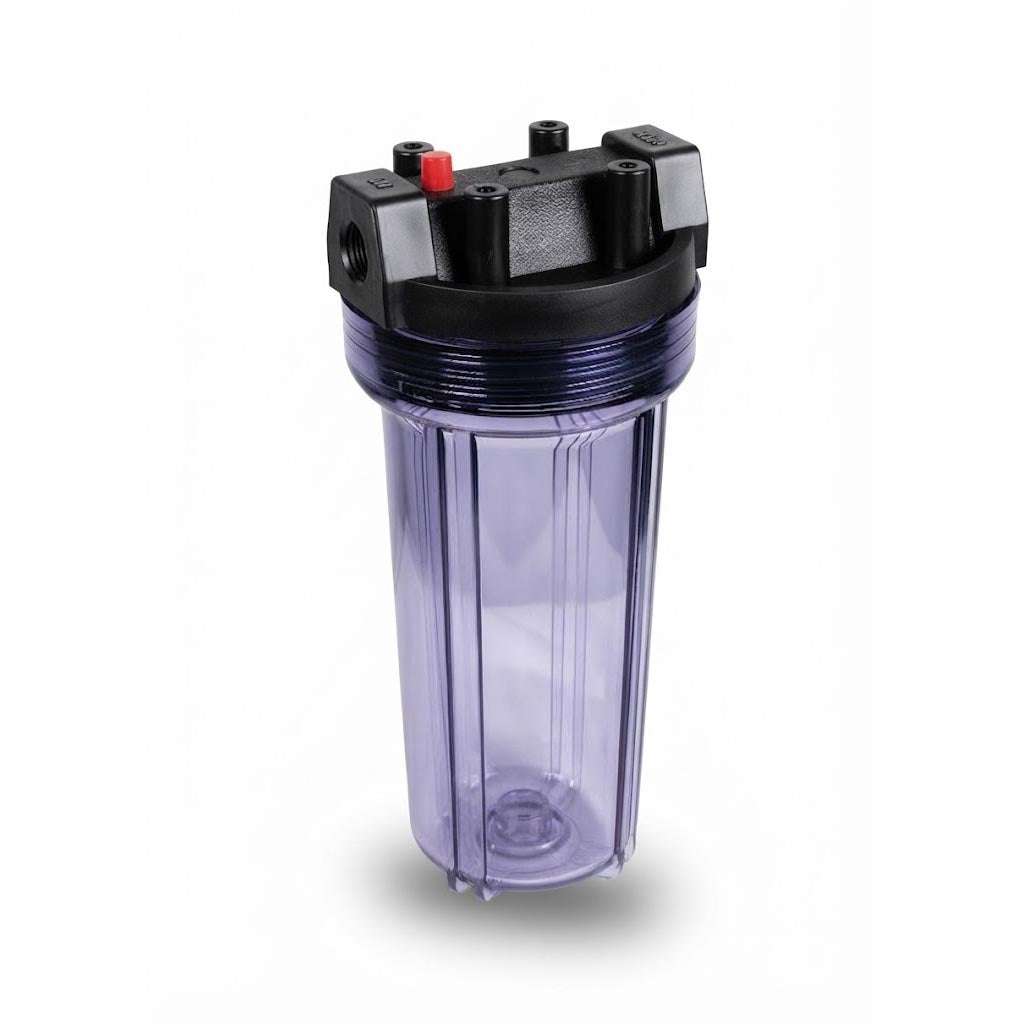

SPECTRUM 10" Clear Filter Housing with 1" BSP Ports – SFH-SC-1-10RD-1

The SPECTRUM SFH-SC-1-10RD-1 Clear Filter Housing is a high-quality 10" regular diameter cartridge housing designed for domestic, commercial and light industrial water filtration applications.

Featuring a clear sump, the housing allows the condition of the filter cartridge to be visually checked without dismantling the unit, making routine maintenance and cartridge replacement easier. The housing is fitted with 1" BSP inlet and outlet ports, providing excellent compatibility with larger bore pipework while accepting standard 2.5" nominal diameter × 10" filter cartridges.

An integrated pressure release button allows pressure to be relieved before opening the housing, helping make filter changes safer and easier. The polypropylene head, clear SAN sump and Buna-N seal provide a durable housing suitable for a wide range of general water filtration duties.

Key Features

• 10" regular diameter filter housing
• Clear sump for easy visual inspection of the cartridge
• 1" BSP female inlet and outlet ports
• Accepts standard 10" × 2.5" nominal diameter cartridges
• Suitable for DOE, AA and CG end-cap configurations
• Integrated pressure release button
• Maximum working pressure: 6.9 bar
• Operating temperature: 4–42°C
• Buna-N O-ring seal
• Durable polypropylene head
• Suitable for sediment, pleated and carbon filter cartridges
• Replacement O-rings, mounting brackets and housing spanners available separately.

Technical Specification

Recommended Maximum Flow Rates

Actual flow rate depends on the cartridge installed. SPECTRUM gives the following maximum flow rates for a 10" regular diameter housing:

Please note: the housing is designed for standard regular diameter cartridges and is not suitable for Large Diameter / Big Blue cartridges.

Compatible Accessories

• FH-BK-1-RD – Single wall mounting bracket
• FH-SWRD – Housing spanner
• SFH-ORING-RD – Replacement Buna O-ring.
