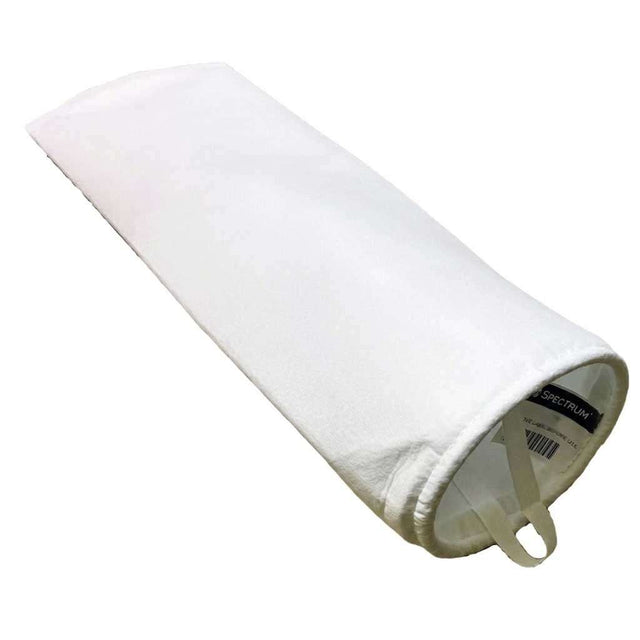

SPECTRUM Economic Bag Filters with Stainless Steel Ring
SPECTRUM Economic Bag Filters with Stainless Steel Ring are traditional single-layer filter bags designed for bulk solids removal across a wide range of applications. This listing is for the ES stainless steel neck/ring versions.
Features & Benefits
- Available in polypropylene felt, polyester felt and nylon mesh.
- Wide choice of micron ratings and four standard bag sizes.
- Polypropylene and polyester felt bags use single-layer media with welded seams.
- Glazed felt surface helps prevent fibre migration into the filtrate.
- Nylon monofilament mesh is suitable for washing and re-use and uses high-strength stitched/binded seams.
- Heavy-duty handles make filter changes easier and help reduce operator contact with unwanted filtrate.
- Nominal filtration efficiency: 70%.
- Maximum operating differential pressure: 1 bar at 20°C.
Material Options
- Polypropylene Felt (P): broad chemical compatibility; maximum operating temperature 95°C.
- Polyester Felt (E): suited to higher-temperature solvent applications; maximum operating temperature 150°C with ES neck.
- Nylon Mesh (N): washable and re-usable monofilament mesh; maximum operating temperature 160°C with ES neck.
Micron Ratings
Polypropylene Felt / Polyester Felt: 1, 5, 10, 25, 50, 100 and 200 micron.
Nylon Mesh: 50, 100, 150, 200, 300, 400, 500, 800 and 1000 micron.
Bag Sizes
| Bag Size | Diameter (A) | Length (B) | Filter Area |
|---|---|---|---|
| 1 | 178 mm | 406 mm | 0.23 m² |
| 2 | 178 mm | 813 mm | 0.41 m² |
| 3 | 102 mm | 229 mm | 0.07 m² |
| 4 | 102 mm | 356 mm | 0.12 m² |
SKU format: EB + ES stainless steel neck + media code + micron rating + bag size. Example: EBESP-5-2 = polypropylene felt, 5 micron, Size 2, stainless steel ring.
