Turbidex Sediment Filter with Clack Valve (0.9 m³/hr to 40 m³/hr)

Regular priceFrom £360.06
Shipping calculated at checkout.


Custom built to order. Lead times vary with workshop volume (typically 7–10 days). We’ll notify you of your dispatch date once scheduled. Contact us for a current estimate.

Technical Resources

Questions & Answers loading...

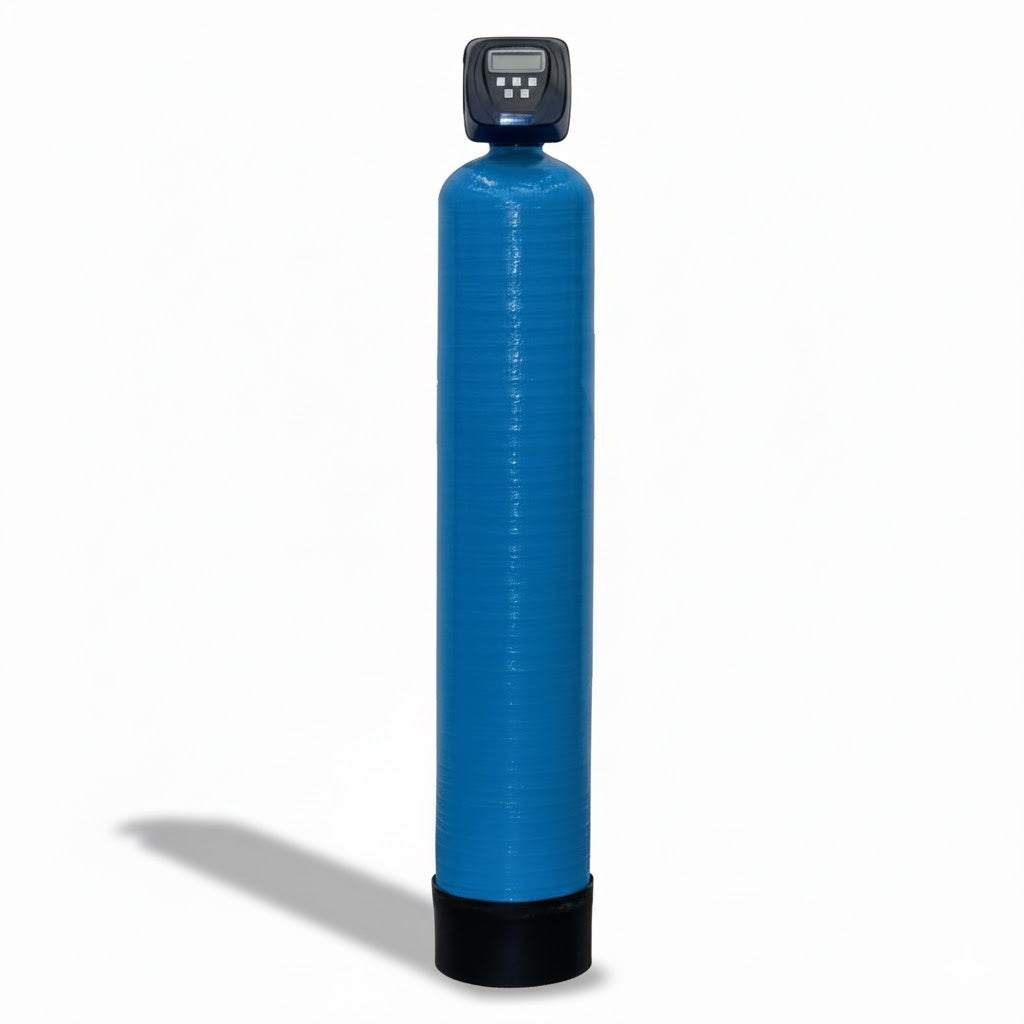

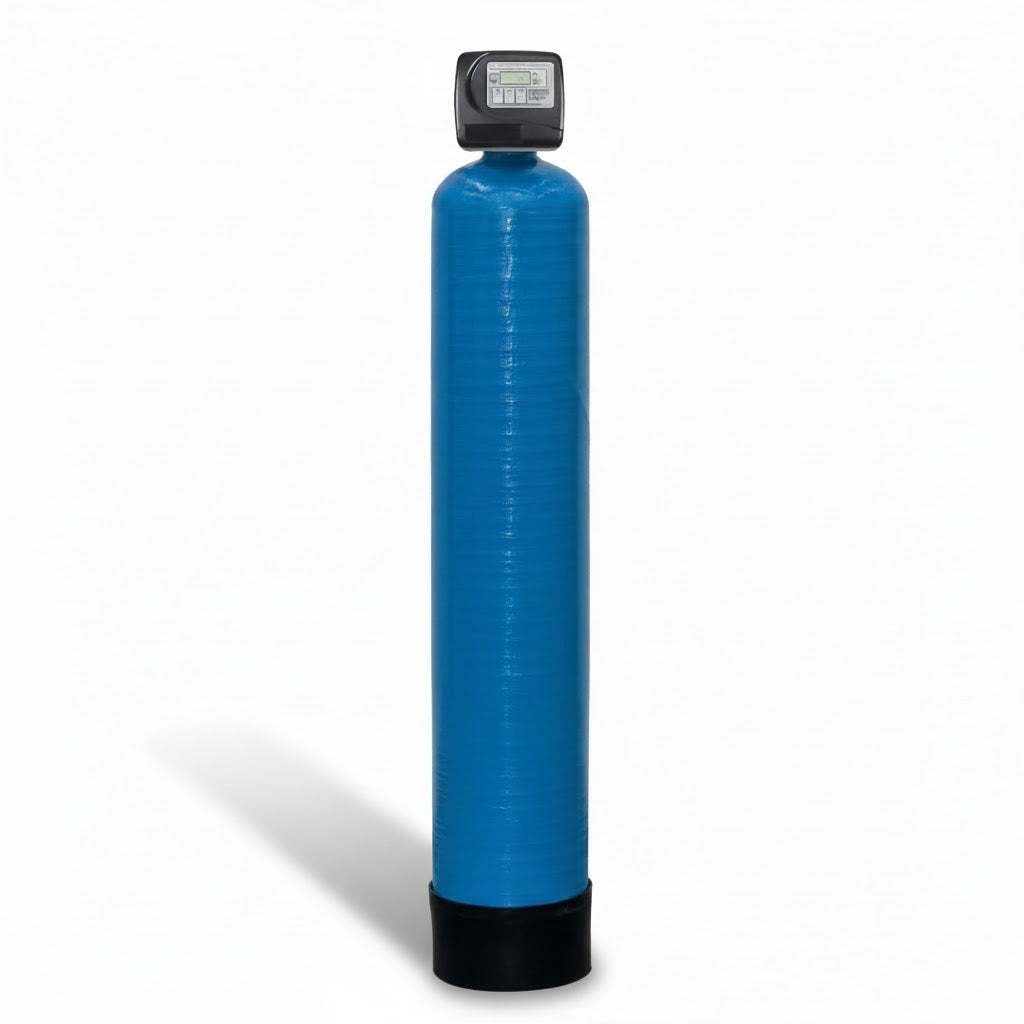

Turbidex Sediment Filter with Clack Valve – 0.9 m³/hr to 40 m³/hr

The Turbidex Sediment Filter with Clack Valve is a high-performance automatic backwashing filtration system designed to remove suspended solids, sediment and turbidity from water supplies.

Suitable for domestic, commercial and industrial applications, these systems provide effective sediment filtration with flow rates ranging from 0.9 m³/hr to 40 m³/hr.

Using advanced natural Turbidex filtration media and reliable Clack automatic control valves, these filters deliver excellent water clarity while reducing maintenance requirements compared with conventional cartridge and sand filtration systems.

Key Features & Benefits

  • Fine sediment filtration – Removes suspended particles down to approximately 5 microns under suitable operating conditions.

  • Automatic backwashing – Clack control valves automatically clean the filtration media at programmed intervals.

  • High sediment holding capacity – Porous Turbidex media captures suspended particles throughout the filter bed.

  • Improved water clarity – Reduces turbidity, dirt, fine silt and suspended sediment.

  • Wide flow rate range – Systems available from 0.9 m³/hr to 40 m³/hr.

  • Low maintenance – Automatic cleaning reduces the need for frequent media replacement.

  • Protects downstream equipment – Ideal for pre-filtration before UV disinfection, reverse osmosis and cartridge filtration systems.

Turbidex Filter Sizes, Flow Rates & Media Volumes

Choose the correct Turbidex sediment filter based on your required service flow rate and available backwash water supply.

Vessel size Clack valve Service flow (m³/hr) Backwash flow (m³/hr) Turbidex volume (ft³)
8" × 44" WS1 CI 0.9 1.1 0.5
10" × 54" WS1 TC / CI 1.5 1.9 1
12" × 52" WS1 CI 2.2 2.7 1.5
13" × 54" WS1 TC / CI 2.5 3.1 2
14" × 65" WS1 CI 3.0 3.6 2.5
16" × 65" WS1 CI 3.7 4.8 4
18" × 65" WS1 CI 4.8 6.0 5
21" × 60" WS1.5 PCI CI 6.6 8.2 7
24" × 69" WS1.5 PCI 8.6 11.0 8
30" × 72" WS2 CI 13.0 17.0 11
36" × 72" WS2 H 19.0 24.0 20
42" × 78" WS2 HF (Top/Side) 26.0 33.0 25
48" × 82" WS3 34.0 43.0 33
55" × 104" WS3 Side Mount 40.0 TBC* TBC*

The 8" × 44" and 55" × 104" are special-order configurations. Backwash requirements and Turbidex quantities are confirmed on quotation.

Important sizing information: The backwash flow rate is generally higher than the service flow rate. Your water supply, pump and drainage system must be capable of providing the required backwash flow for effective cleaning of the media.

Service flow rates are nominal and should be confirmed against water quality, sediment loading and site operating conditions.

How Does Turbidex Filtration Work?

Turbidex is a natural clinoptilolite mineral with a highly porous structure and large surface area.

As water flows through the media bed, suspended particles become trapped within the filtration media, reducing turbidity and improving water clarity.

The automatic Clack control valve periodically reverses the water flow through the vessel, expanding the media bed and flushing accumulated sediment to drain.

Once the backwash and rinse cycles are complete, the system automatically returns to normal filtration.

Typical Applications

  • Borehole and private water supplies – Reducing suspended sediment, silt and turbidity.

  • Whole-house water filtration – Improving water clarity and protecting household plumbing.

  • Commercial water treatment – High-capacity sediment reduction for buildings and commercial operations.

  • Industrial process water – Reducing suspended solids before further treatment or processing.

  • UV disinfection pre-treatment – Improving water clarity before UV systems.

  • Reverse osmosis pre-filtration – Reducing sediment loading on cartridge filters and RO membranes.

  • Agricultural applications – Removing suspended particles from suitable agricultural water supplies.

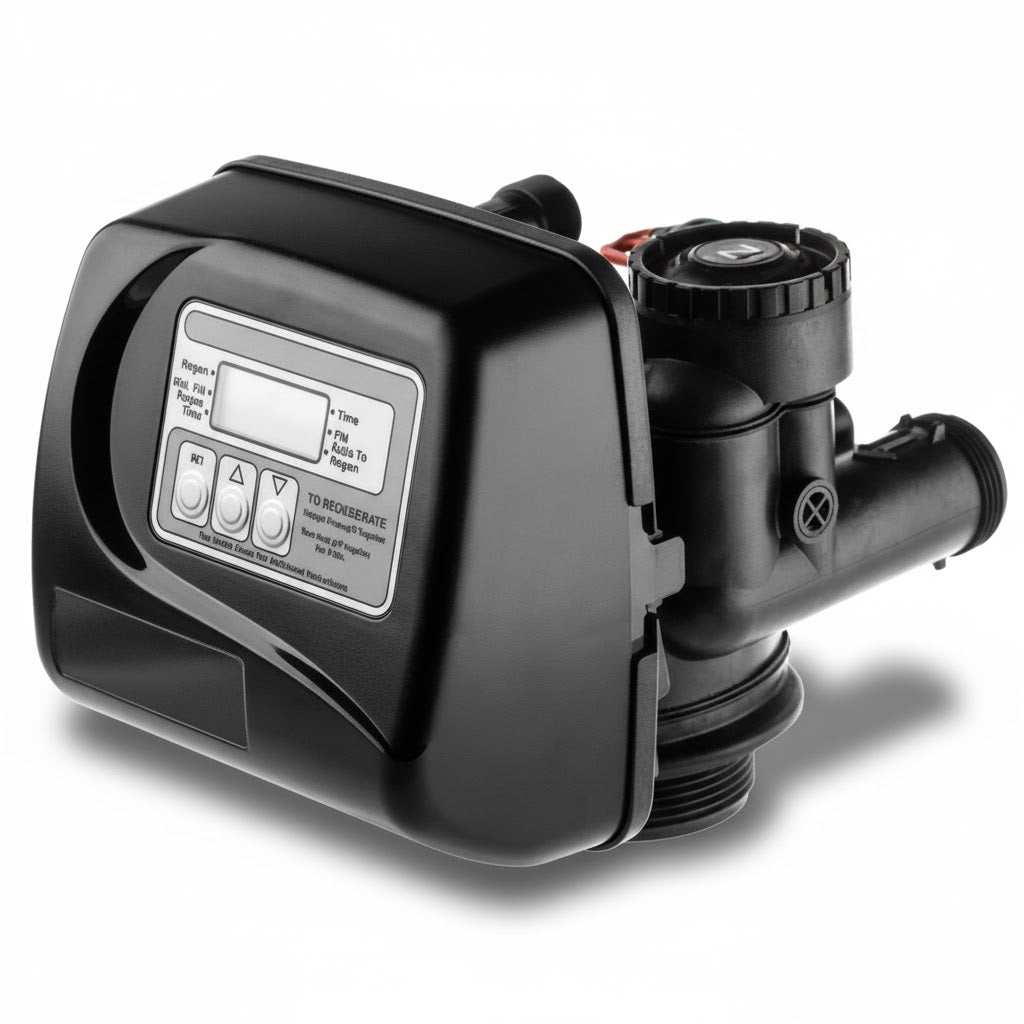

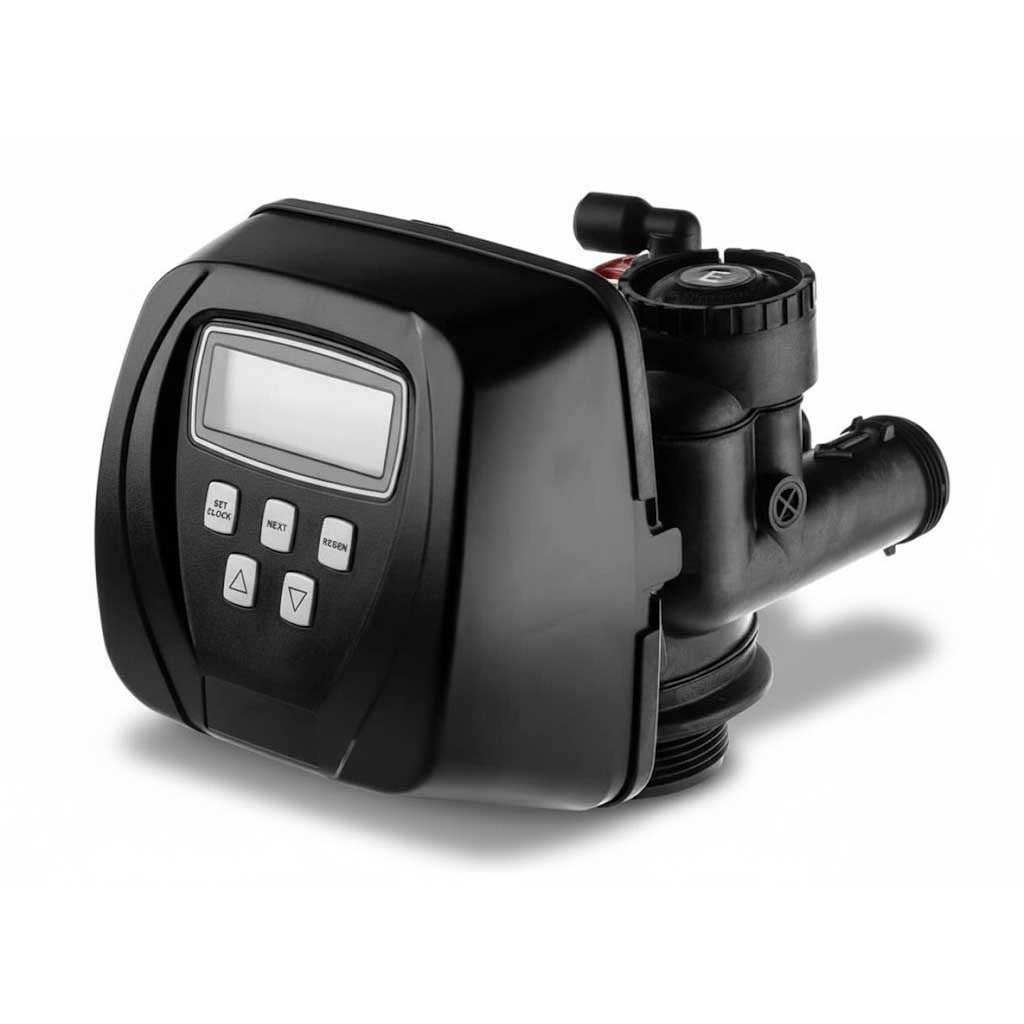

Clack Automatic Backwashing Control

Each system is equipped with a Clack automatic control valve selected to suit the vessel size and flow requirements.

The valve is programmed to automatically backwash the media, helping maintain consistent filtration performance with minimal operator intervention.

Systems are supplied partially assembled and factory-programmed, with final installation and commissioning required on site.

Installation & Operating Requirements

  • Operating pressure: 2–6 bar.

  • Water temperature: 4–43°C.

  • Electrical supply: Model-specific low-voltage power supply via mains adaptor.

  • Backwash water supply: Must meet the flow requirement for the selected vessel.

  • Drainage: A suitable drain capable of handling the backwash discharge is required.

  • Media: Turbidex filtration media with graded support gravel.

Please note: Turbidex is designed primarily for suspended solids and turbidity reduction. Dissolved iron, manganese and other dissolved contaminants may require additional specialist treatment.

Custom Built to Order

Our Turbidex sediment filter systems are built to order, with the Clack control valve partially assembled and programmed in our workshop.

Typical lead time: 7–10 working days, depending on workshop demand.

For help choosing the correct system, contact GAPS Water Treatment with your required flow rate, available backwash flow and water analysis results.
