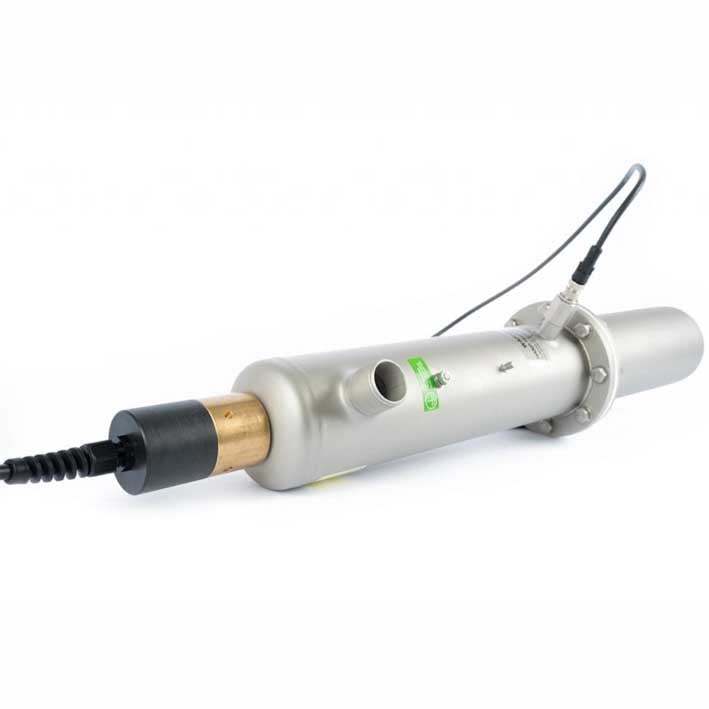

V150 Van Remmen V-Series 11.9 m³/hr
V150 Van Remmen V-Series 11.9 m³/h: High-Performance UV-C Water Disinfection
The V150 Van Remmen V-Series 11.9 m³/h delivers safe, reliable, and energy-efficient water disinfection. Designed and validated under the rigorous NEN-EN 14897 standards, this system is optimized for water with transmittance values ranging from 80% to 99%, ensuring reliable and economic treatment. With cutting-edge features, it is suitable for a wide array of applications, from potable water systems to complex industrial processes.
Key Features
- Validated Performance: Proven disinfection results under NEN-EN 14897 standards for guaranteed safety and reliability.
- Energy Efficiency: Operates at just 7.6 Wh/m³ (300 J/m² dosage), minimizing operating costs while maintaining high performance.
- Low Maintenance: Equipped with long-lasting, low-pressure UV-C lamps offering up to 8,000 hours of operation.
- User-Friendly Design: With robust construction and simple operation, the V150 is both reliable and easy to use.
- Wide Applicability: Designed for potable water, industrial processing, shipping, building utilities, and more.
Key Specifications
| Specification | Details |
|---|---|
| UV Chamber Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| Connections | 2” BSP-T |
| Pressure Drop | < 0.1 bar |
| Max Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal / Vertical |
| Dimensions | Diameter (A): 129 mm Height (B): 103 mm Length (D): 1,207 mm |
| Installation Space Required (E) | 2,270 mm |
| Weight | 10.8 kg |
| UV-C Lamp Type | 80W Regular UV-C Lamp |
| Lamp Lifespan | Up to 8,000 hours |
| Power Consumption | 7.6 Wh/m³ at 300 J/m²; 10.1 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Features
- Monitoring & Alerts: Tracks lamp status, runtime, and total operational hours for reliable system management.
- Integrated Alarms: Volt-free alarm contacts ensure quick response to operational anomalies.
- Optional Safety Enhancements: Supports UV Sensor (UVS) and Temperature Safety Sensor (TSS) for real-time system safety monitoring.
- Temperature Control: Equipped with a Temperature Safety Dump Valve (TSD) to prevent overheating.
- Rugged Control Box: Built with aluminum and ABS, IP55-rated for durability in demanding environments.
Certifications & Standards
- Validated Disinfection: Conforms to NEN-EN 14897 for measurable and proven results.
- Regulatory Compliance: Certified under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Industry Approvals: WRAS and Kiwa ATA-certified, ensuring safe and reliable functionality across varied applications.
Application Areas
- Drinking Water Systems: Ensures clean and safe potable water.
- Industrial Process Water: Guarantees quality and reliability in manufacturing applications.
- Maritime & Offshore Environments: Robust enough to withstand harsh conditions.
- Food & Pharmaceutical Industries: Maintains stringent hygiene and safety protocols.
- Building Utilities & Data Centers: Optimizes water quality in large-scale facilities.
Why Choose the V150 Van Remmen V-Series?
The V150 Van Remmen V-Series 11.9 m³/h offers a uniquely optimized design that balances high efficiency with long-term reliability. Backed by rigorous validation, this system provides a sound and safe disinfection guarantee. It is energy-efficient, low-maintenance, and designed for versatile use across diverse water treatment applications.
Upgrade your water treatment solutions with the V150 Van Remmen V-Series today and experience unmatched performance, efficiency, and peace of mind!
