Wellmate PEU Aircell Replacement Kit
Wellmate PEU Aircell Replacement Kit
Restore your water pressure tank to peak performance with the Wellmate PEU Aircell Replacement Kit. This comprehensive kit includes everything needed to replace a worn or damaged air cell, ensuring your Pentair Water system maintains consistent pressure and efficient operation. Designed for durability and ease of installation, this kit is compatible with standard Wellmate tanks as well as older top-serviced models.
Key Features & Benefits
-

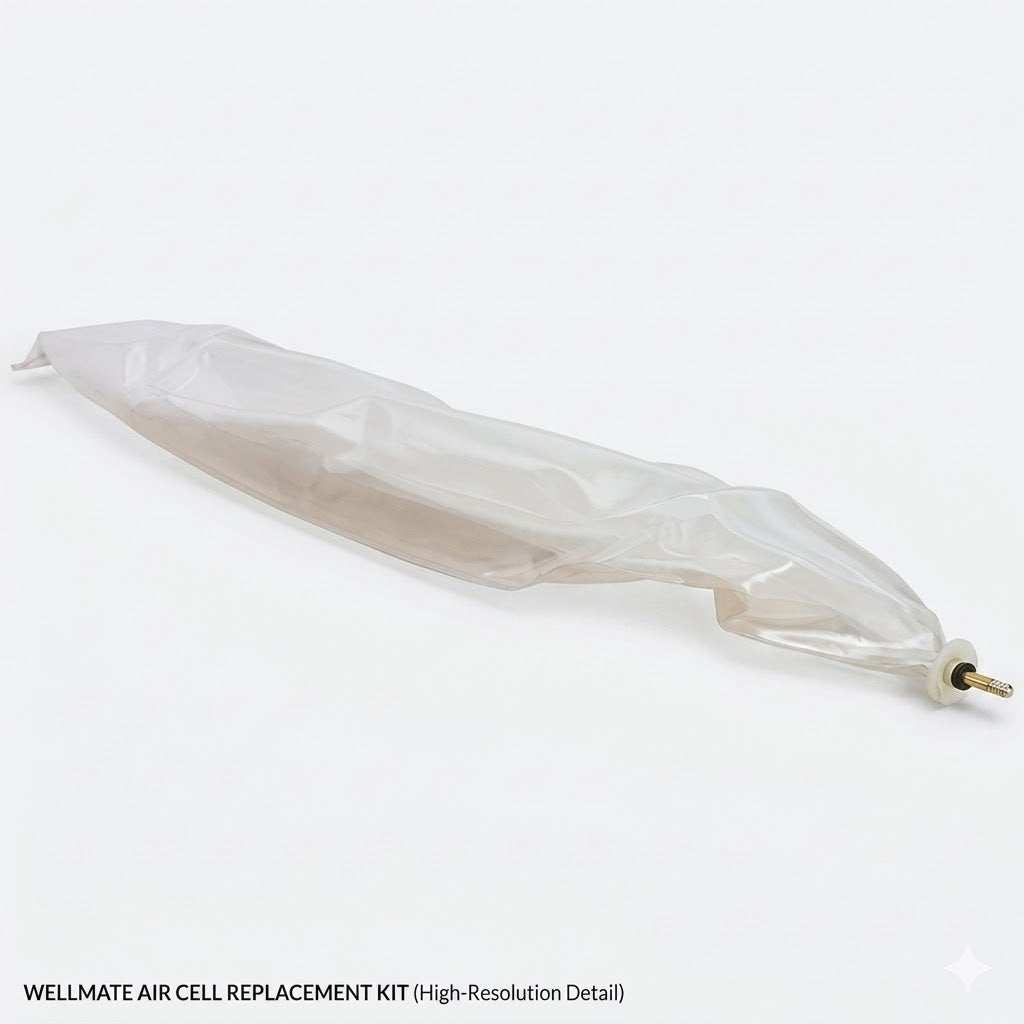

Complete Repair Solution: Includes a new air cell, high-quality O-rings (2-1/2" and 4"), and a full set of replacement hardware including the valve stem nut, washer, and cap.
-
Universal Compatibility: Features a brass retainer with both straight and tapered cavities to accommodate various valve stem configurations (gray, white, or brass) found in different tank generations.
-
Easy Installation Components: Comes with a nylon line and valve stem connector to help guide the new air cell into position without damaging the unit.
-
Maintenance Essentials: Includes a dedicated O-ring lubricant packet to ensure a watertight, leak-proof seal during reassembly.
What’s Included in the Kit?
| Item | Quantity |
| Air Cell / Rubber Washer | 1 |
| O-ring (2-1/2") | 1 |
| O-ring (4") | 1 |
| Nylon Line & Valve Stem Connector | 1 |
| Valve Stem Nut, Washer, & Cap | 1 set |
| Brass Retainer & White Plastic Spacer | 1 each |
| O-ring Lubricant Packet | 1 |
Installation Recommendations
To ensure a successful replacement, it is recommended to have the following tools on hand:
-
Required Tools: 3/4” diameter wooden dowel (18” long), hacksaw, channel locks, 1/2” deep well socket, and a valve core tool.
-
Air Source: An air source is required to pre-charge the tank to 4 psig (.28 bar) lower than your pump’s cut-in pressure.
-
Two-Person Task: Due to the size of the air cell, two people are recommended for removing the old cell and guiding the new one into the tank.
Safety Warning: Always turn off electric power to the pump and ensure all water pressure is fully released from the tank and system before beginning service.
Technical Compatibility
This kit is designed for Pentair Wellmate tanks. For older models, the kit provides specific hardware like the white plastic spacer and brass retainer to ensure a proper fit regardless of your tank's original valve stem design.
