Ecosoft Aquapoint XL Duo Whole House Water Filter Kit – Sediment & Hydrogen Sulphide Reduction

Improve Borehole Water Quality by Reducing Sediment & Hydrogen Sulphide Odours

The Ecosoft Aquapoint XL Duo Whole House Water Filter Kit – Sediment & Hydrogen Sulphide Reduction is a premium two-stage water filtration system designed for private boreholes, wells and rainwater supplies affected by suspended sediment and unpleasant hydrogen sulphide (H₂S) odours, commonly known as the "rotten egg" smell.

This complete filtration package combines the robust Ecosoft Aquapoint XL Duo steel filter housing with a DGD dual-gradient sediment cartridge and an Ecosoft catalytic activated carbon hydrogen sulphide cartridge, providing effective removal of dirt and sediment while significantly improving the taste and odour of your water.

Ideal for small properties, cottages and low-flow applications, this system protects plumbing and appliances while delivering cleaner, fresher water throughout your home.

How the Two-Stage Filtration Works

Stage 1 – Ecosoft DGD Dual Gradient Sediment Filter

The first stage features the Ecosoft DGD 4.5" x 20" polypropylene dual-density sediment cartridge.

Its innovative dual-gradient construction captures larger particles on the outer layers while progressively removing finer sediment deeper within the filter.

This provides excellent protection against:

• Sand

• Silt

• Clay

• Rust

• Dirt

• Suspended solids

The large dirt-holding capacity helps extend cartridge life while protecting the catalytic carbon cartridge in the second stage.

Stage 2 – Ecosoft Catalytic Activated Carbon Hydrogen Sulphide Cartridge

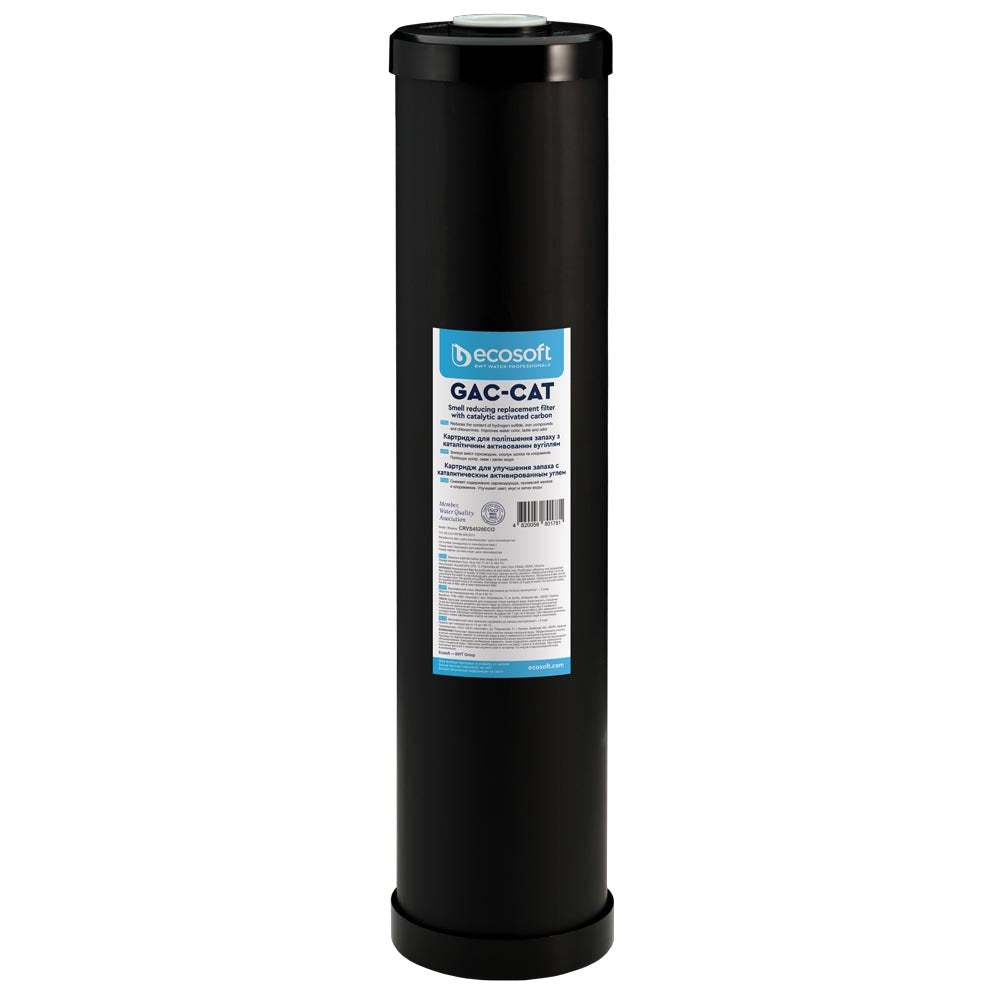

The second stage contains the Ecosoft CRVS4520ECO Catalytic Activated Carbon Cartridge, specifically developed for reducing hydrogen sulphide (H₂S) commonly found in private water supplies.

The catalytic carbon media helps reduce:

• Hydrogen sulphide (rotten egg odour)

• Unpleasant tastes

• Organic compounds

• Chlorine (where present)

Hydrogen sulphide naturally occurs in many boreholes and wells, producing a distinctive sulphurous smell. The catalytic activated carbon media adsorbs and oxidises the gas, leaving water noticeably fresher and more pleasant to use.

Heavy-Duty Aquapoint XL Duo Housing

The Aquapoint XL Duo has been engineered for reliable whole house filtration and simple maintenance.

Features include:

• Heavy-duty powder-coated steel mounting frame

• Twin 4.5" × 20" Big Blue filter housings

• Large filtration area for low pressure loss

• Double O-ring sealing system for superior leak protection

• Self-centring cartridge alignment system

• 1" female threaded connections

• Supplied complete with housing wrench and connection nipples

The rigid steel frame absorbs pipe vibration and provides a secure mounting platform, making cartridge replacement quick and straightforward.

Important Flow Rate Information

Although the Aquapoint XL Duo housing is capable of handling flow rates up to 1.8 m³/hour (30 LPM), the supplied CRVS4520ECO hydrogen sulphide cartridge has a recommended service flow rate of approximately 5 litres per minute (0.3 m³/hour) for optimum hydrogen sulphide removal.

Hydrogen sulphide removal depends on the amount of time the water remains in contact with the catalytic carbon media. At higher flow rates, the contact time is reduced, which can decrease H₂S removal efficiency and allow some sulphur odour to remain, particularly when several outlets are being used simultaneously.

For this reason, this kit is best suited to:

• Small cottages

• Holiday homes

• Cabins

• Single bathroom properties

• Low-flow applications

• Point-of-entry systems with modest water demand

If your property has multiple bathrooms or regularly uses several taps, showers or appliances at the same time, we recommend a backwashing catalytic carbon vessel. These systems contain a much larger volume of catalytic carbon media, providing longer contact time and significantly higher hydrogen sulphide removal performance for whole-house applications.

Benefits

• Reduces hydrogen sulphide (rotten egg odour)

• Removes sand, silt, rust and suspended solids

• Improves water taste and smell

• Protects plumbing, valves and appliances

• Large capacity 4.5" × 20" cartridges

• Heavy-duty steel mounting frame

• Double O-ring leak protection

• Easy cartridge replacement

• Ideal for borehole and well water

• Complete ready-to-install filtration system

Ideal Applications

Suitable for:

• Boreholes

• Private wells

• Rainwater harvesting systems

• Rural properties

• Holiday cottages

• Small homes

• Cabins

• Agricultural buildings

• Light commercial low-flow applications

Technical Specifications

Technical specifications are based on the Ecosoft Aquapoint XL Duo technical data sheet.

What's Included

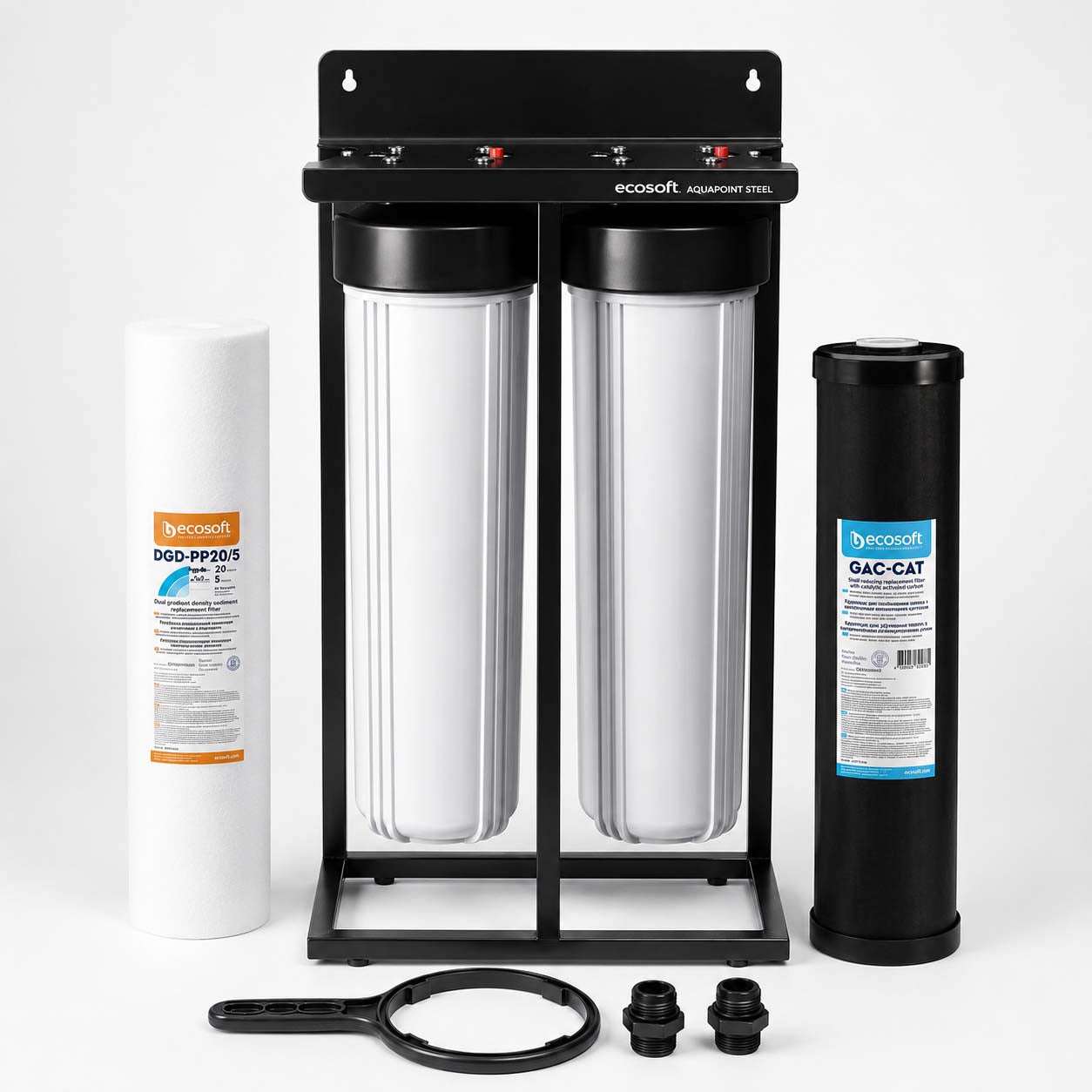

• Ecosoft Aquapoint XL Duo steel filter housing

• 1 × Ecosoft DGD 4.5" × 20" Dual Gradient Sediment Cartridge

• 1 × Ecosoft CRVS4520ECO Catalytic Activated Carbon Hydrogen Sulphide Cartridge

• Housing wrench

• Two connection nipples

• Heavy-duty steel mounting frame
